Precise positioning, secure support

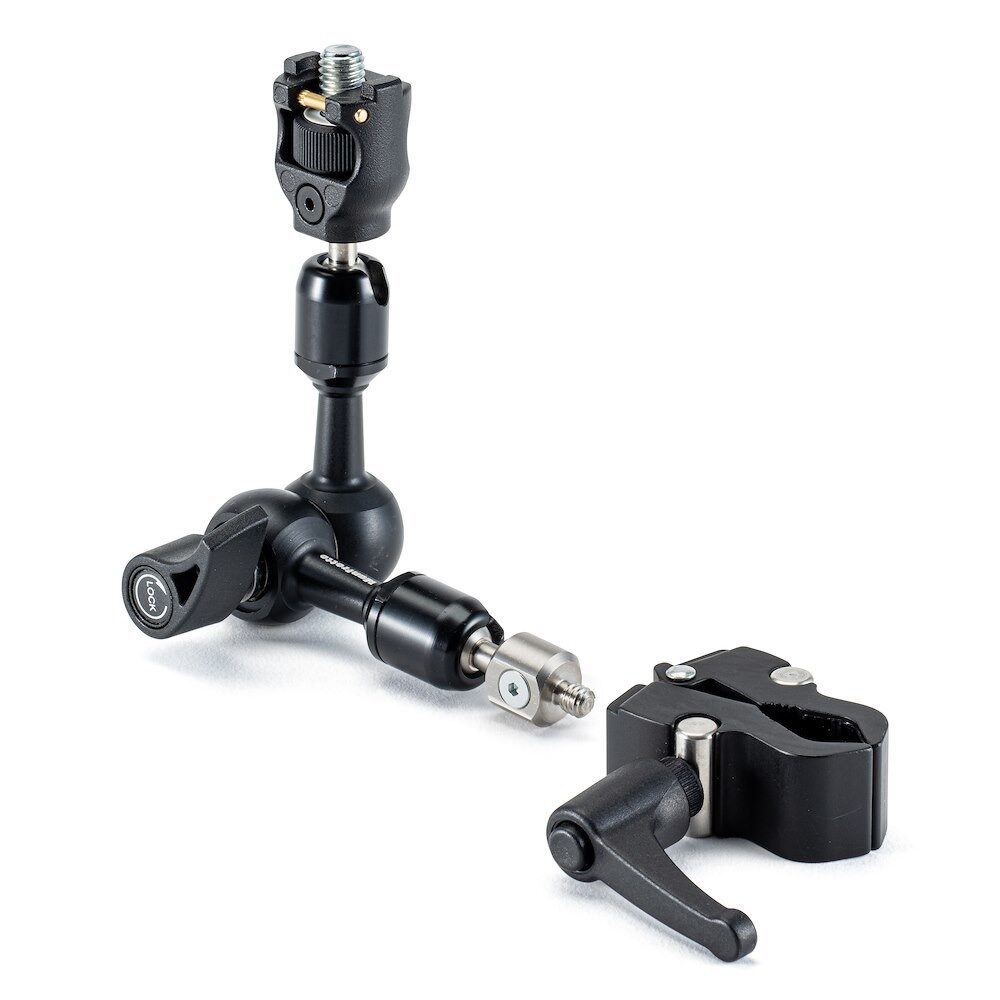

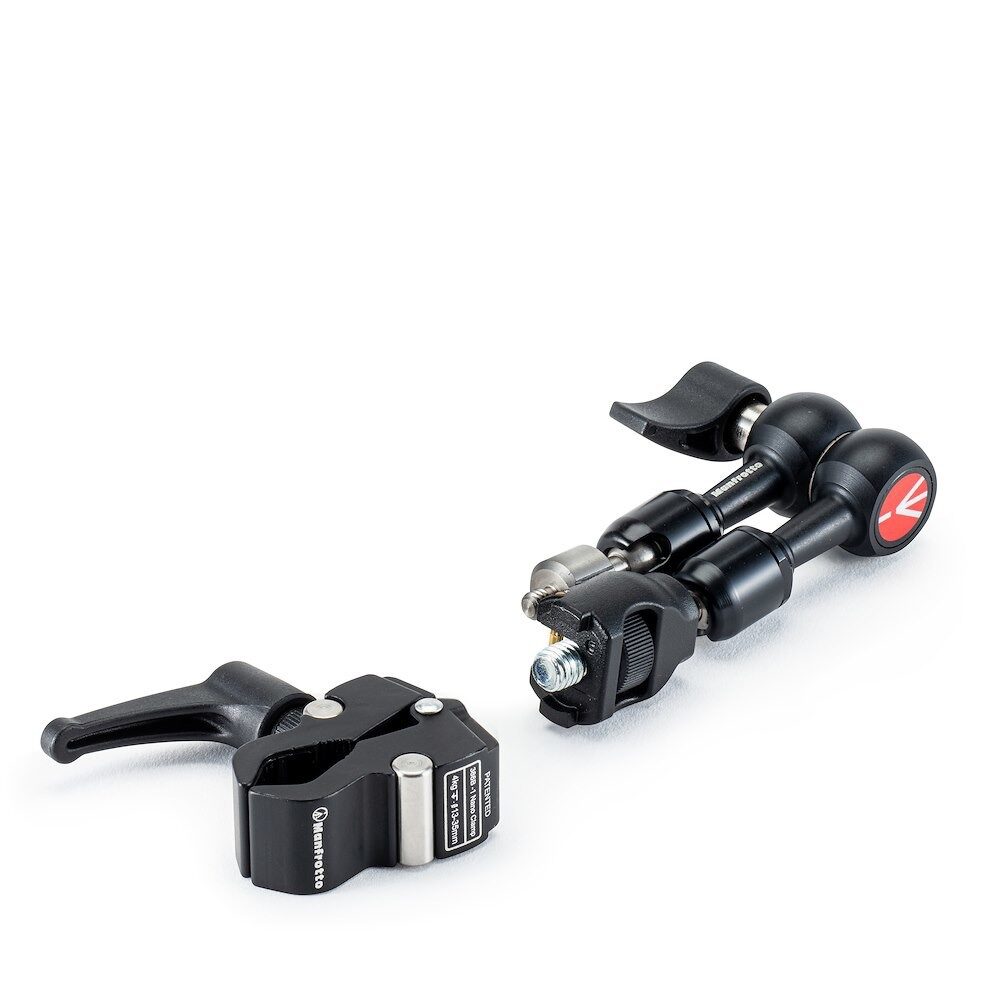

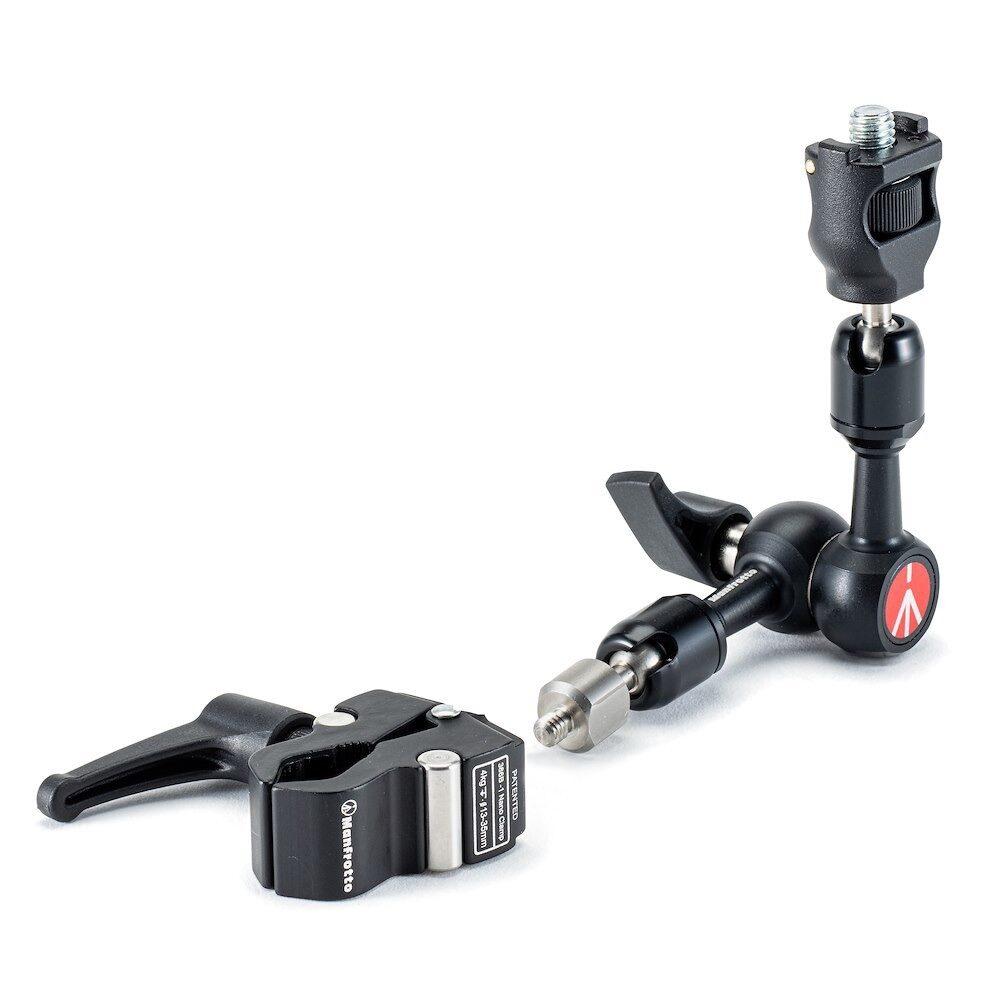

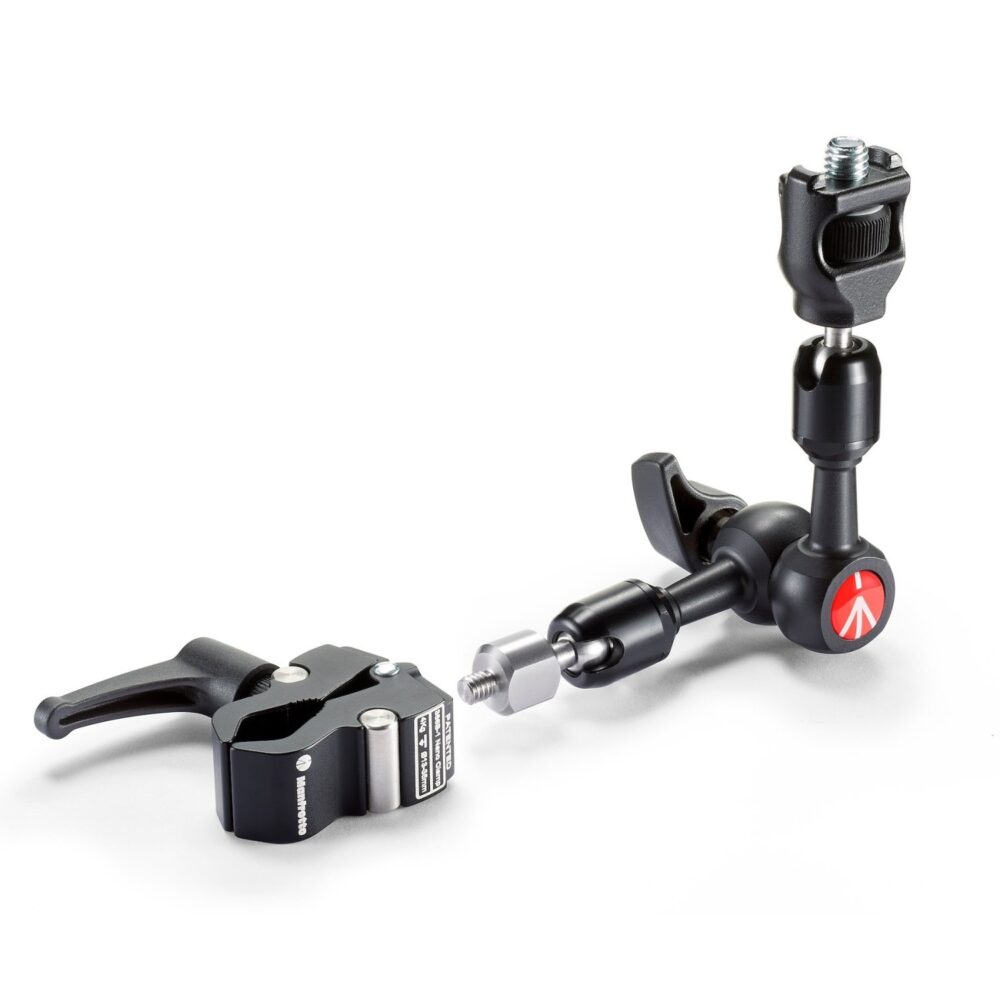

The 15 cm aluminium arm combines ergonomic control, a 3 kg payload, anti-rotation attachment and versatile Nano Clamp in one portable kit.
Nano Clamp included

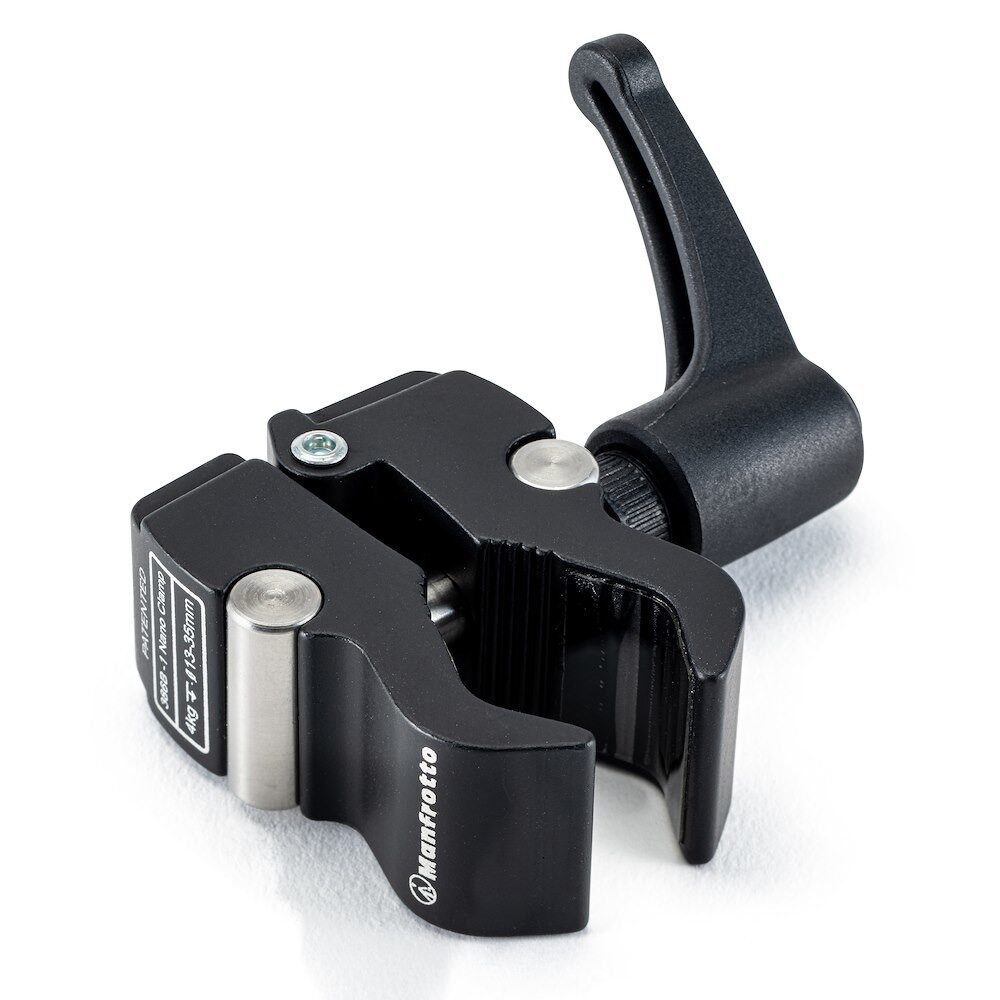

The 386B-1 clamp grips round and flat profiles securely, letting the arm attach to a tripod, stand, shelf or bar without a separate basic clamp.
Anti-rotation end for Easy Link
Locating points on the adapter reduce unwanted twisting in a compatible 3/8″ Easy Link mount on a tripod, video head or camera cage. One ergonomic lever locks the chosen position.
PACKAGE CONTENTS
- 244MICRO variable-friction arm ×1
- 386B-1 Nano Clamp ×1
- 3/8″ anti-rotation adapter ×1
- Removable 1/4″-20 threaded adapter ×1
- Hex key ×1
TECHNICAL SPECIFICATIONS
- Model: 244MICROKIT
- Arm length: 15 cm
- Closed length: 10.5 cm
- Arm tube diameter: 9.2 mm
- Payload: 3 kg
- Weight: 0.315 kg
- Top attachment: 3/8″ female thread with anti-rotation adapter
- Bottom attachment: 3/8″ female thread
- Removable adapter: 1/4″-20
- Material: aluminium and steel
- Colour: black
