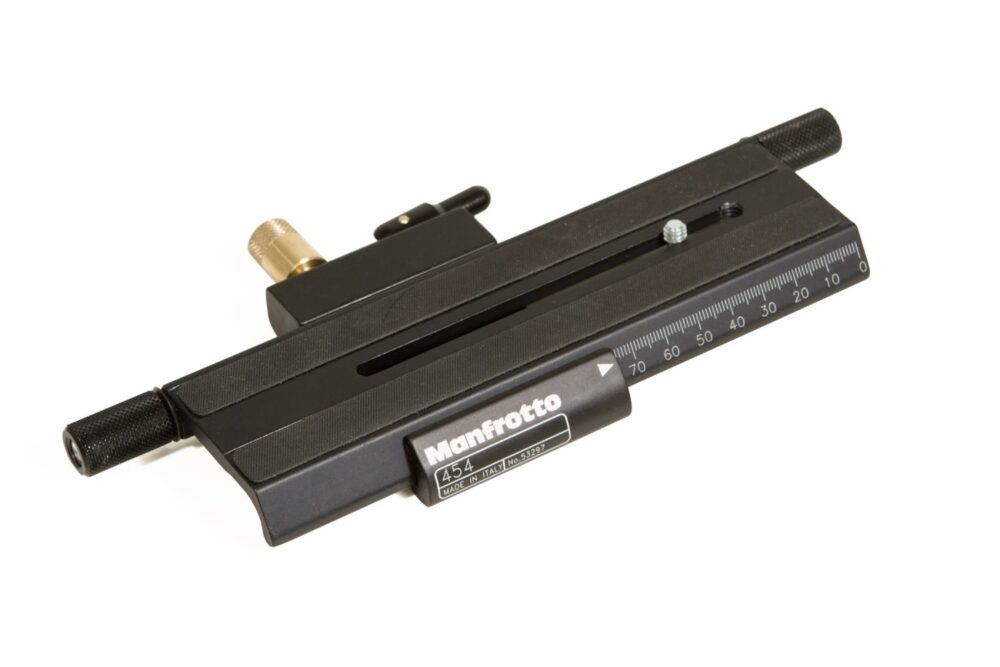

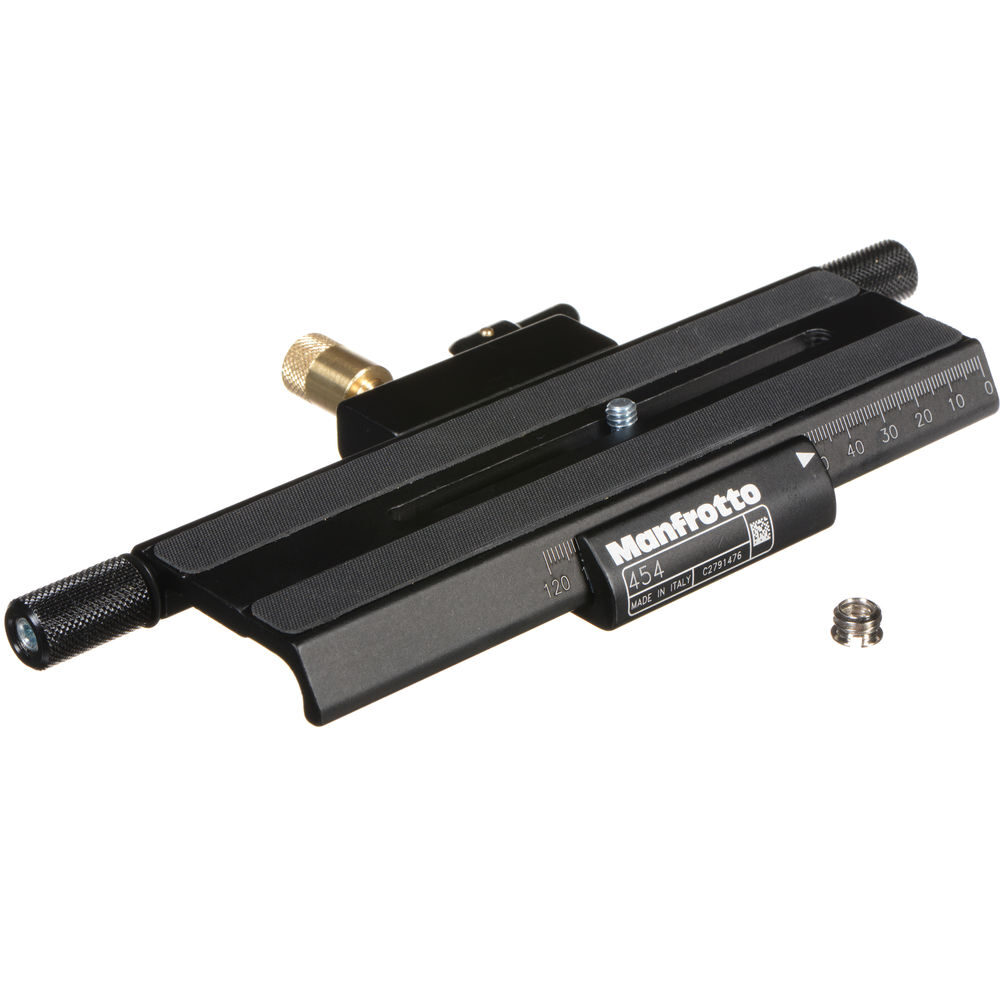

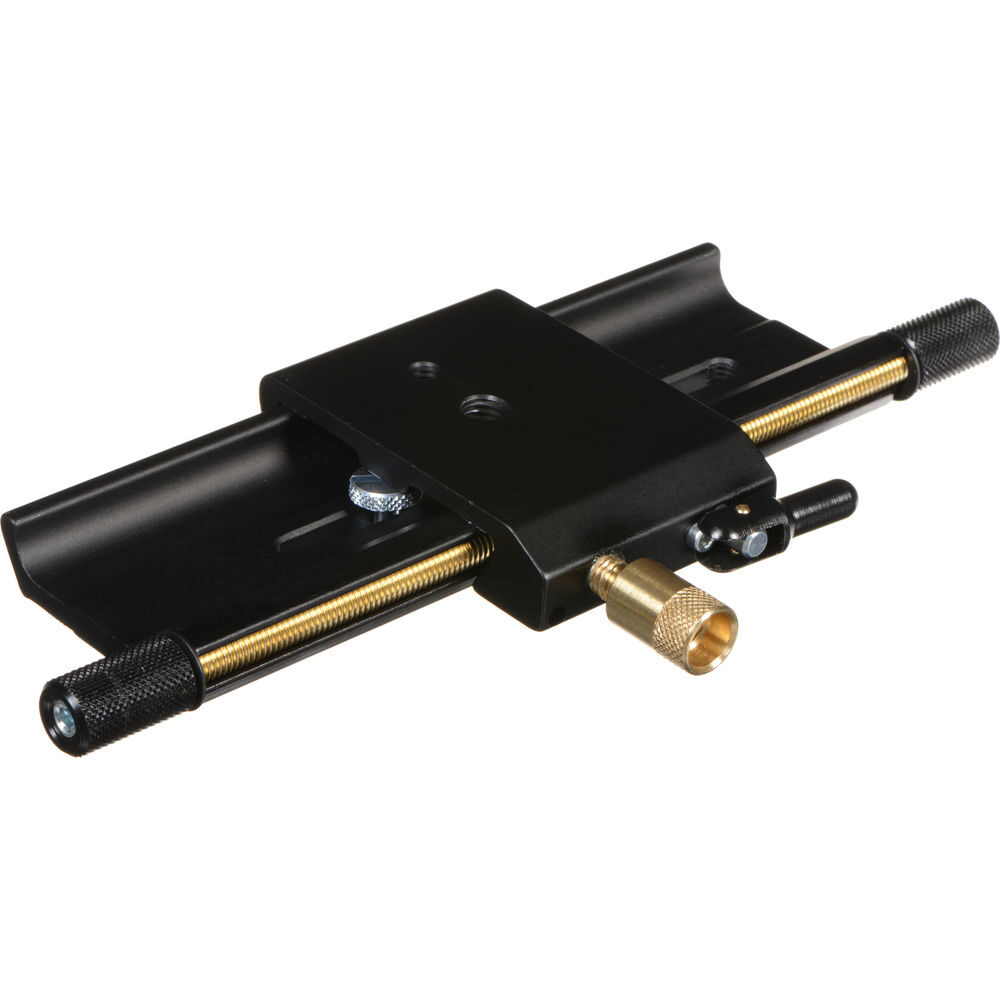

Manfrotto 454 is an aluminium micrometric macro rail for precise camera positioning in macro photography, QTVR and copy or repro work. Its fingertip control provides fine adjustment, while a lock-release lever speeds up coarse repositioning. Travel exceeds 120 mm, and two units can interlock at 90° for movement on two axes. The rail provides 1/4″ and 3/8″ holes and fittings, supports a safety payload of 8 kg, and is designed and made in Italy.
.p-19169{–blue:#3154c7;–line:#dfe3ea;color:#222}.p-19169 *{box-sizing:border-box}.p-19169 .hero{display:grid;grid-template-columns:minmax(300px,1fr) minmax(300px,1fr);gap:38px;align-items:center;margin:0 0 30px;padding:30px;border-radius:18px;background:linear-gradient(135deg,#f2f5ff 0%,#fff 72%);overflow:hidden}.p-19169 .hero img{display:block;width:100%;max-height:430px;object-fit:contain;background:#fff;border-radius:14px}.p-19169 .eyebrow{margin:0 0 10px;color:#d71920;font-size:12px;font-weight:800;letter-spacing:.14em;text-transform:uppercase}.p-19169 h2,.p-19169 h3{color:var(–blue);font-weight:800;text-transform:uppercase}.p-19169 h2{margin:0 0 14px;font-size:36px;line-height:1.1}.p-19169 h3{margin:0 0 9px;font-size:23px;line-height:1.18}.p-19169 p{margin:0;line-height:1.65}.p-19169 .features{display:grid;grid-template-columns:repeat(3,minmax(0,1fr));gap:16px;margin:0 0 30px}.p-19169 article{padding:22px;border:1px solid var(–line);border-radius:14px;background:#fff}.p-19169 .section-title{margin:6px 0 14px}.p-19169 ul{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:0 32px;list-style:none;margin:0;padding:0 0 16px}.p-19169 li{border-bottom:1px solid var(–line);padding:11px 0;line-height:1.4}.p-19169 strong{color:#222}@media(max-width:720px){.p-19169 .hero{grid-template-columns:1fr;gap:22px;padding:20px}.p-19169 h2{font-size:28px}.p-19169 h3{font-size:21px}.p-19169 .features{grid-template-columns:1fr}.p-19169 ul{grid-template-columns:1fr}}@media(max-width:390px){.p-19169 .hero{padding:16px}.p-19169 h2{font-size:27px}}
PRECISE CAMERA POSITIONING
MICROMETRIC MOVEMENT FOR MACRO
Manfrotto 454 fine-tunes camera distance without moving the tripod, making precise framing, macro and copy work easier.
FINE OR FAST
Use the knob for precise travel, or release the lock lever for a quick coarse change of position.
OVER 120 MM OF TRAVEL
The long scale helps repeat settings and monitor forward or backward movement.
TWO-AXIS OPTION
Interlock two 454 rails at 90° to add both fore-aft and lateral movement.
PACKAGE CONTENTS
- 1× Manfrotto 454 micrometric rail
- 1× 1/4″-20 camera screw
- 1× 1/4″ to 3/8″ reducing bushing
TECHNICAL SPECIFICATIONS
- Model: 454
- Travel: over 120 mm
- Material: extruded aluminium
- Weight: 0.52 kg
- Dimensions: 180 × 57.5 × 15 mm
- Safety payload: 8 kg
- Mounting threads: 1/4″ and 3/8″
- Construction: designed and made in Italy
