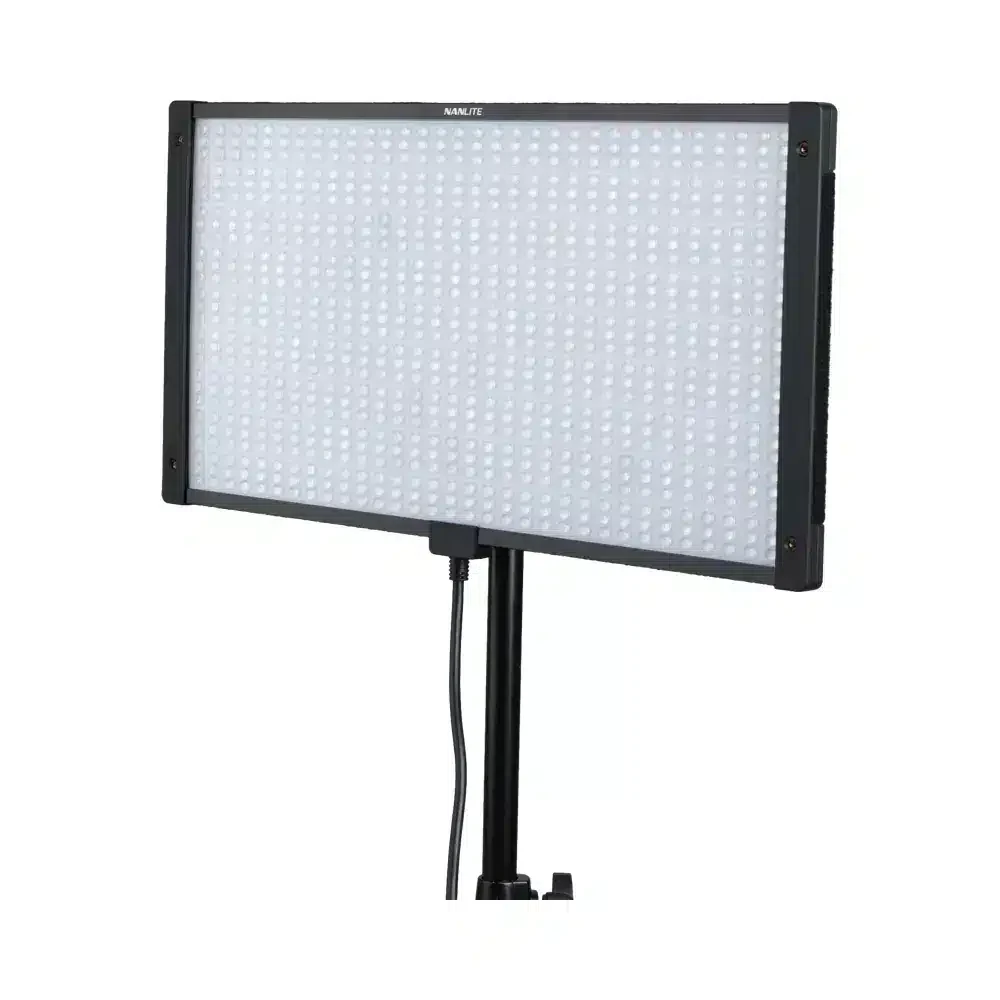

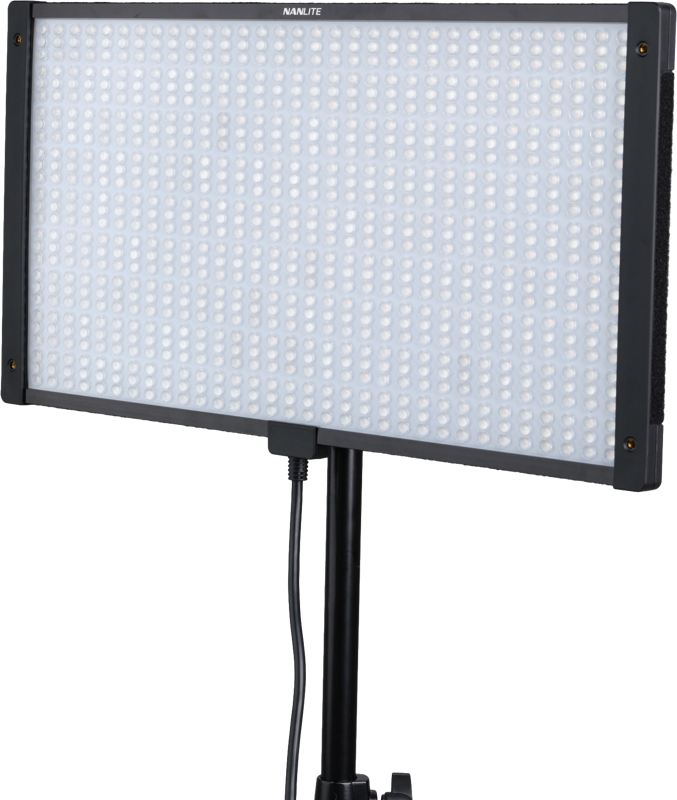

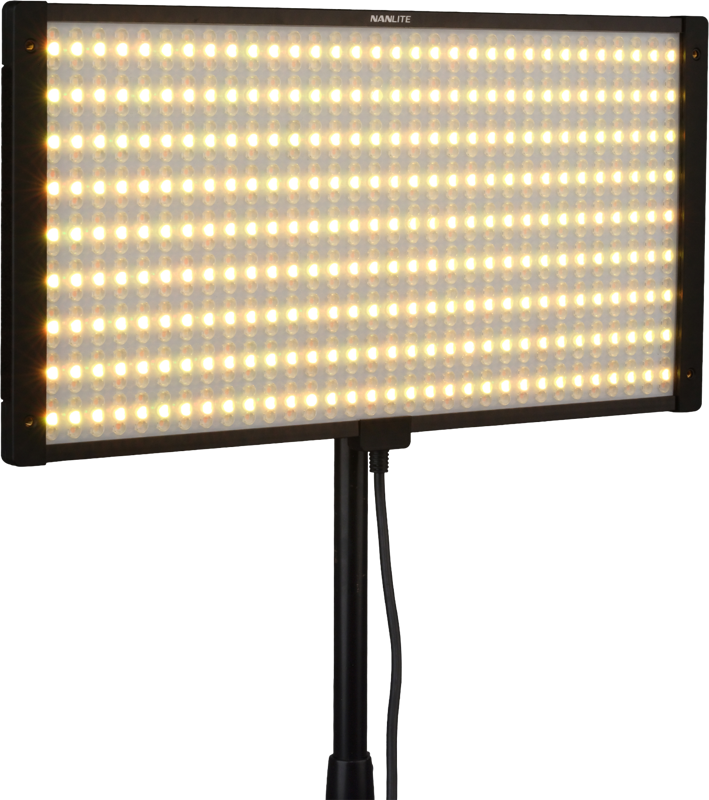

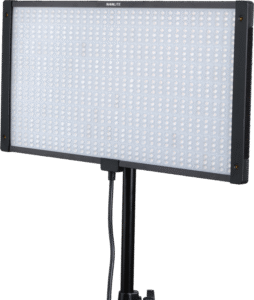

Nanlite has once again expanded the potential of the panel light source, introducing to creators a new generation of LED panel lights: The PavoSlim. The PavoSlim combines a slim and lightweight design, fast and convenient installation, high luminance, and accurate color rendering to provide the full-color PavoSlim 120C. This innovation will empower creators with more flexible options to realize their visions.
Metal Housing, Efficient Heat Dissipation Meticulous Optical Lens, Efficient Converging Light (Achieving 4 times the output compared to the average output of similar products).

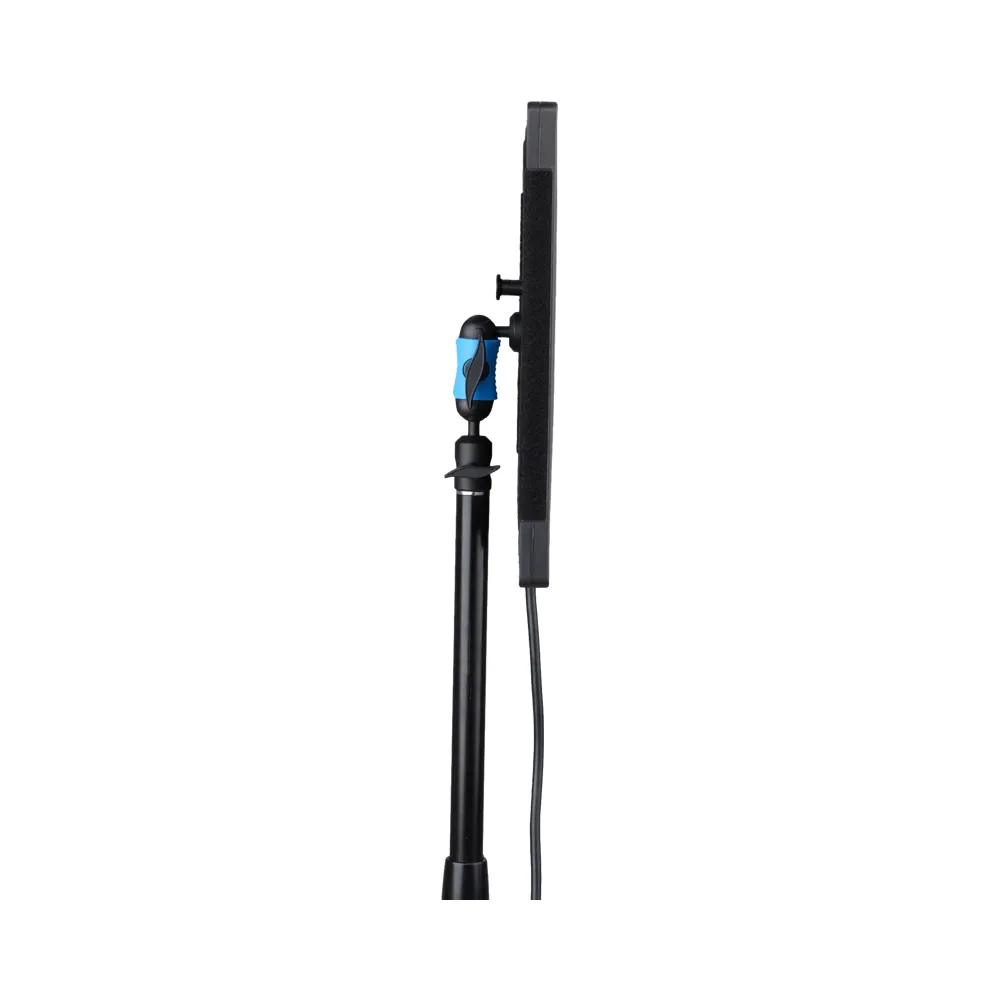

With its metal housing, the PavoSlim 120C demonstrates that slimness and ruggedness can coexist. Even when equipped with a full set of diffusers and installation accessories, it remains lighter and thinner than traditional light mats. This quality renders it indispensable for use in small studios, low-ceiling locations, or on film and television sets with stringent requirements.
Efficient Design, Maximum Output
The Nanlite team has engineered a dedicated optical system for the PavoSlim’s individual chips. By combining efficient heat dissipation with an excellent optical design, the PavoSlim achieves an output that is 4 times greater than the average of similar products.
PavoSlim 120C: 12830lux@1m (light only, 5600K).

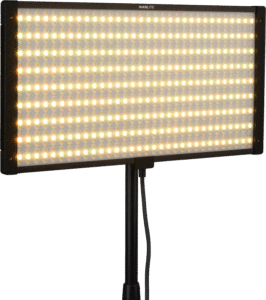

Rapid Deployment
Each element of the 120C is crafted for rapid deployment because every minute counts on set. Even the accessories adhere to this philosophy, enabling easy and rapid setup. Creators can effortlessly complete the installation within one minute.

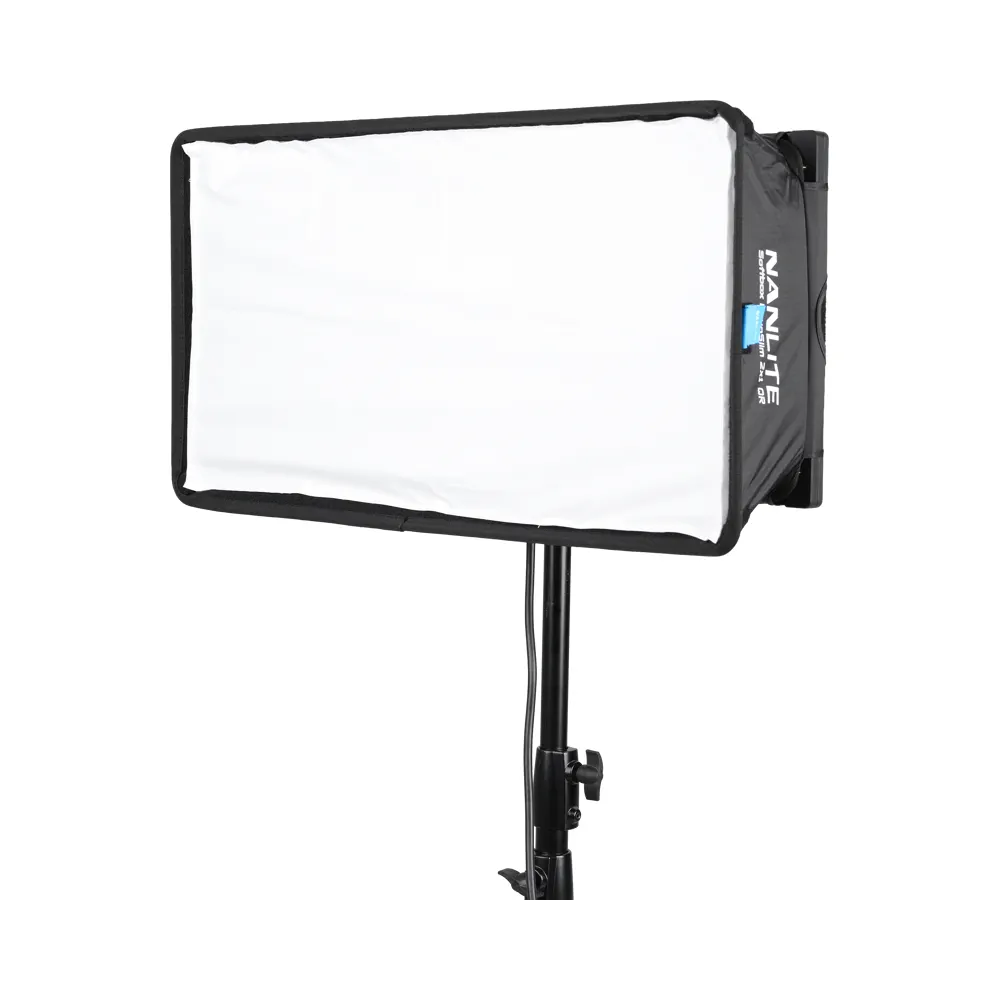

It is worth mentioning that the 120C softboxes employ an innovative compression design for quick setup and breakdown in seconds.

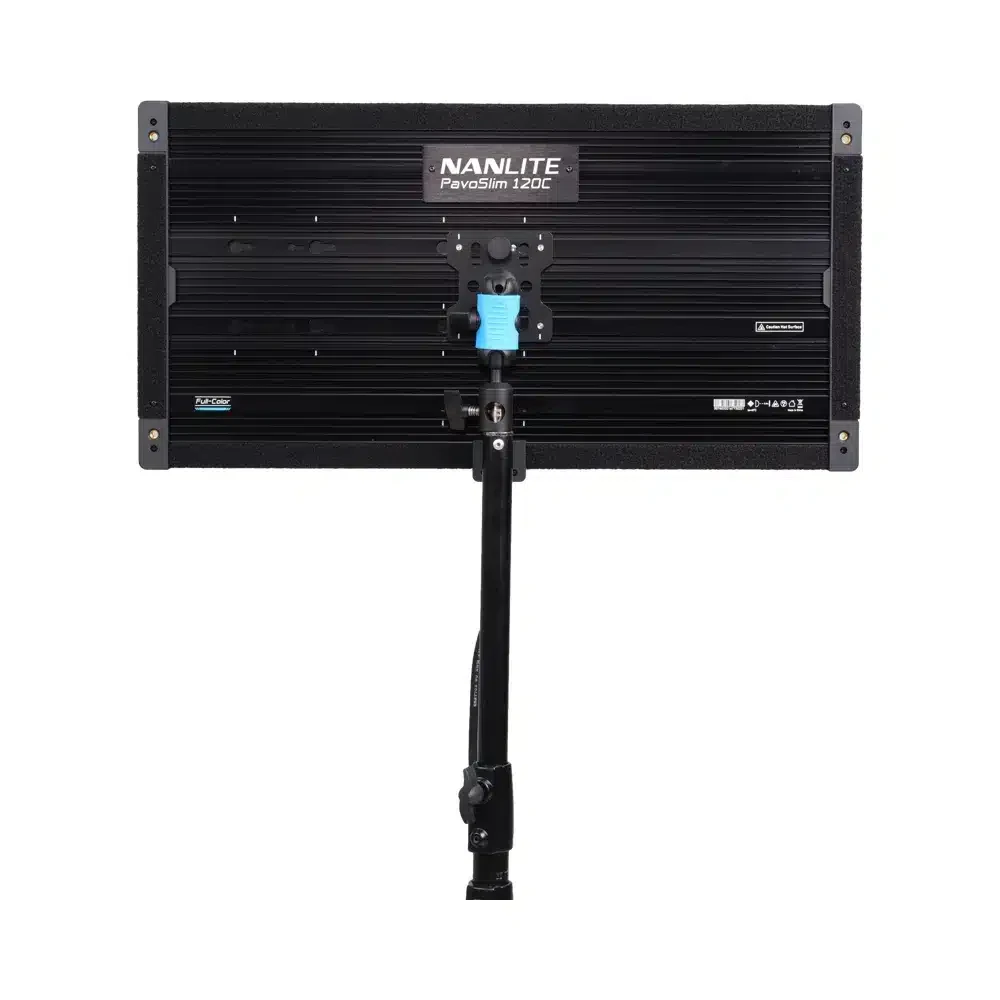

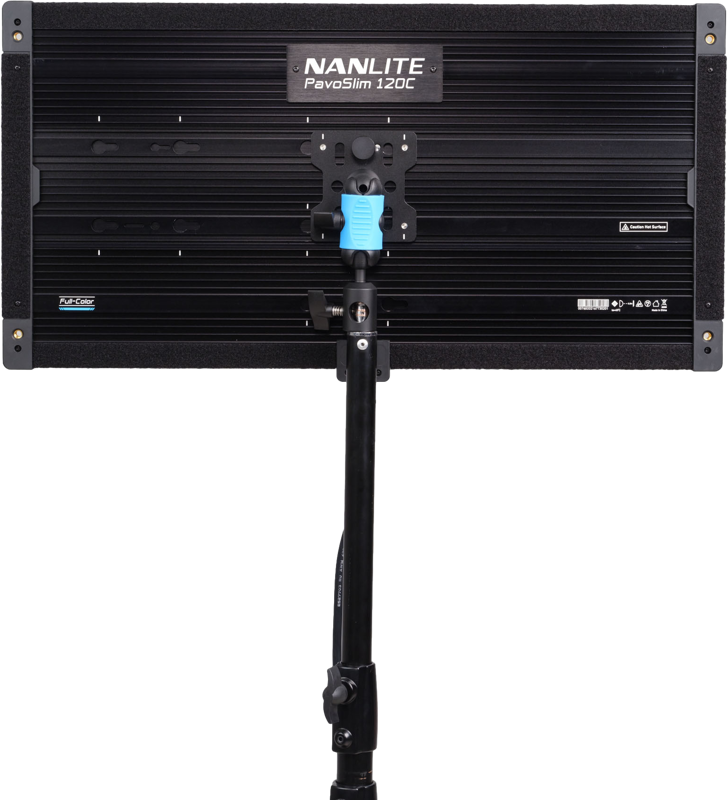

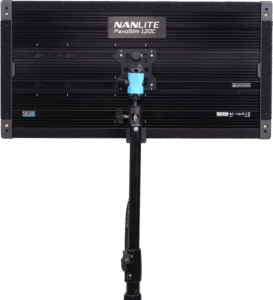

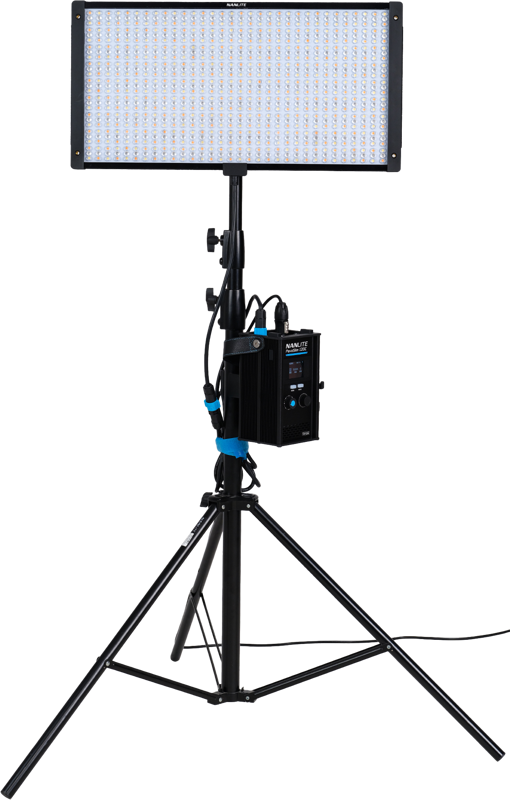

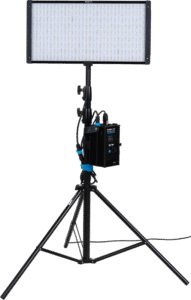

The back of the fixture has multiple sockets for flexible installation, and the control unit is equipped with a quick-release plate, compatible with the quick-release clamp (included), also used for the Forza II series fixtures (suitable for light stands and trusses). The control unit can also be hung on the light stand by its strap.
Various Modes
With RGBWW color mixing technology, the PavoSlim 60C/120C provide multiple lighting modes.

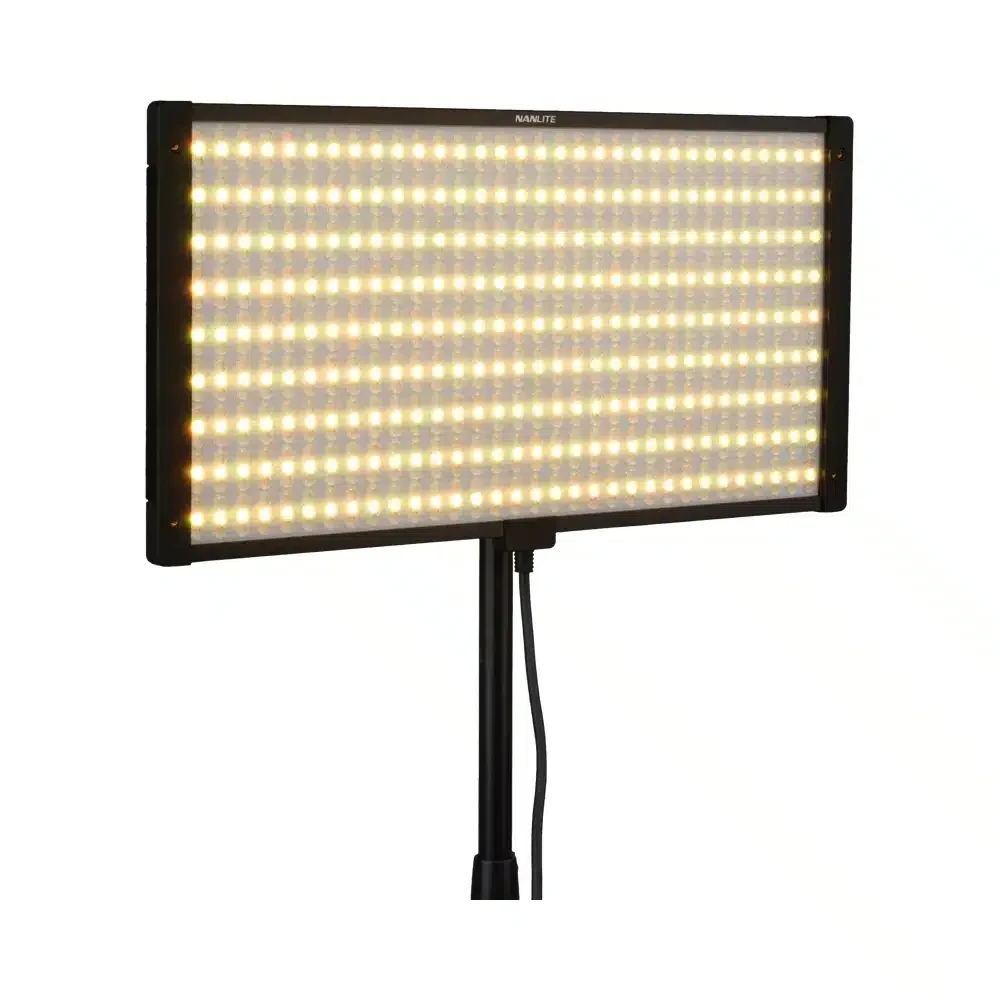

- CCT Mode: CCT Range: 2700K-7500K (G/M±150) CRI: Average 96, TLCI: Average 97 TM-30 Rf: Average 94 Rg: Average 100 SSI 3200K: 83 5600K: 74

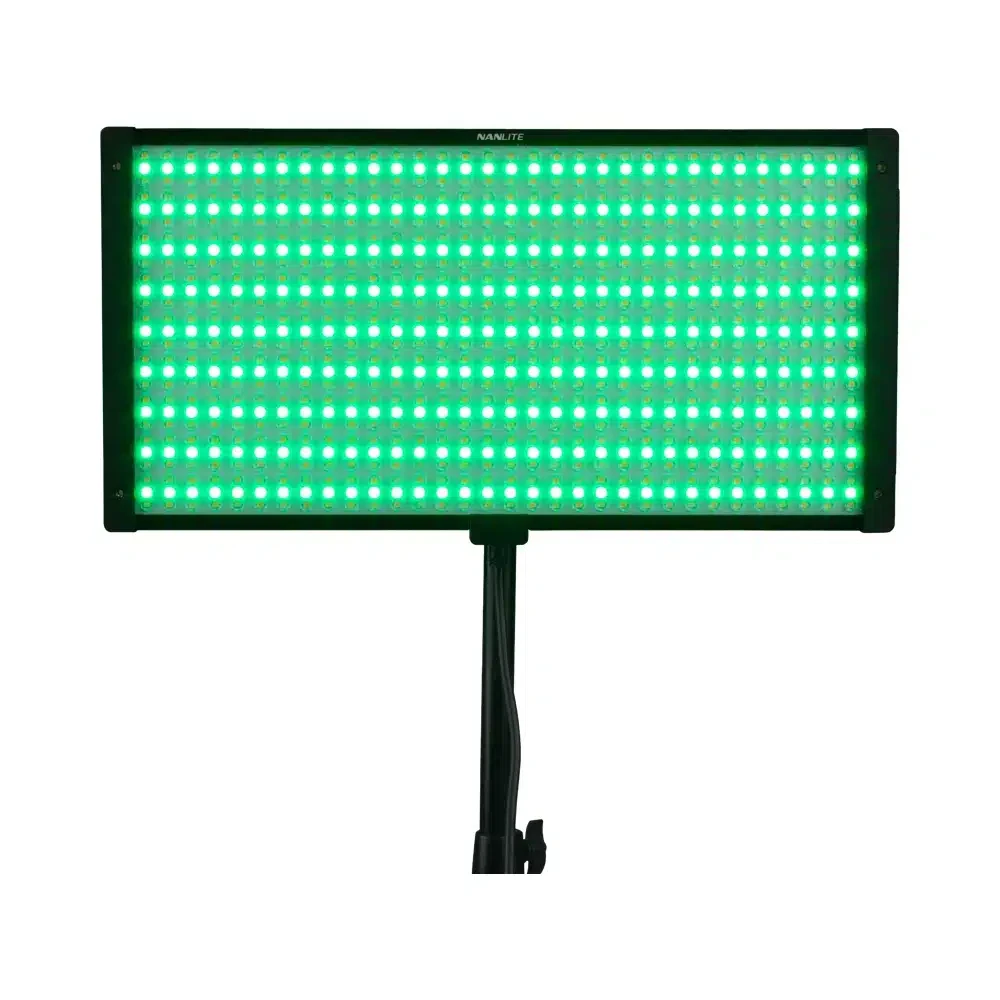

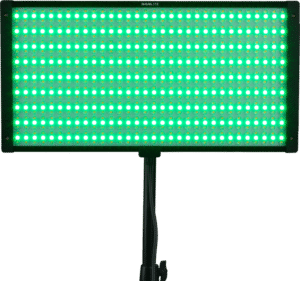

- HSI Mode: This mode allows quick adjustments to the hue, saturation, and intensity of light with a choice of 36000 colors.

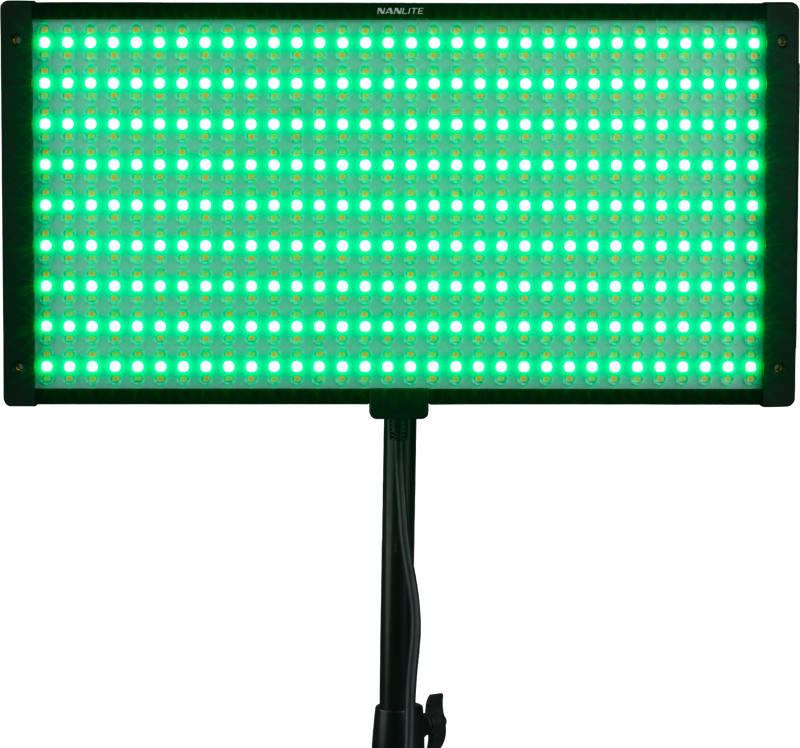

- RGBW Mode: Four separate channels for red, green, blue, and white color control, enabling greater color precision.
- Gel Mode: With 151 built-in gels, this mode can replicate the colors of commonly used gels, eliminating the need to install them manually and providing convenience for creating ambient and emotional lighting.
- Effect Mode: Equipped with 15 effects, the PavoSlim 120C can simulate various scene lighting effects. Parameters for each effect can be adjusted on-board, with more customized settings accessible through the Nanlink App, LumenRadio CRMX, and DMX/RDM.
Professional Control Options

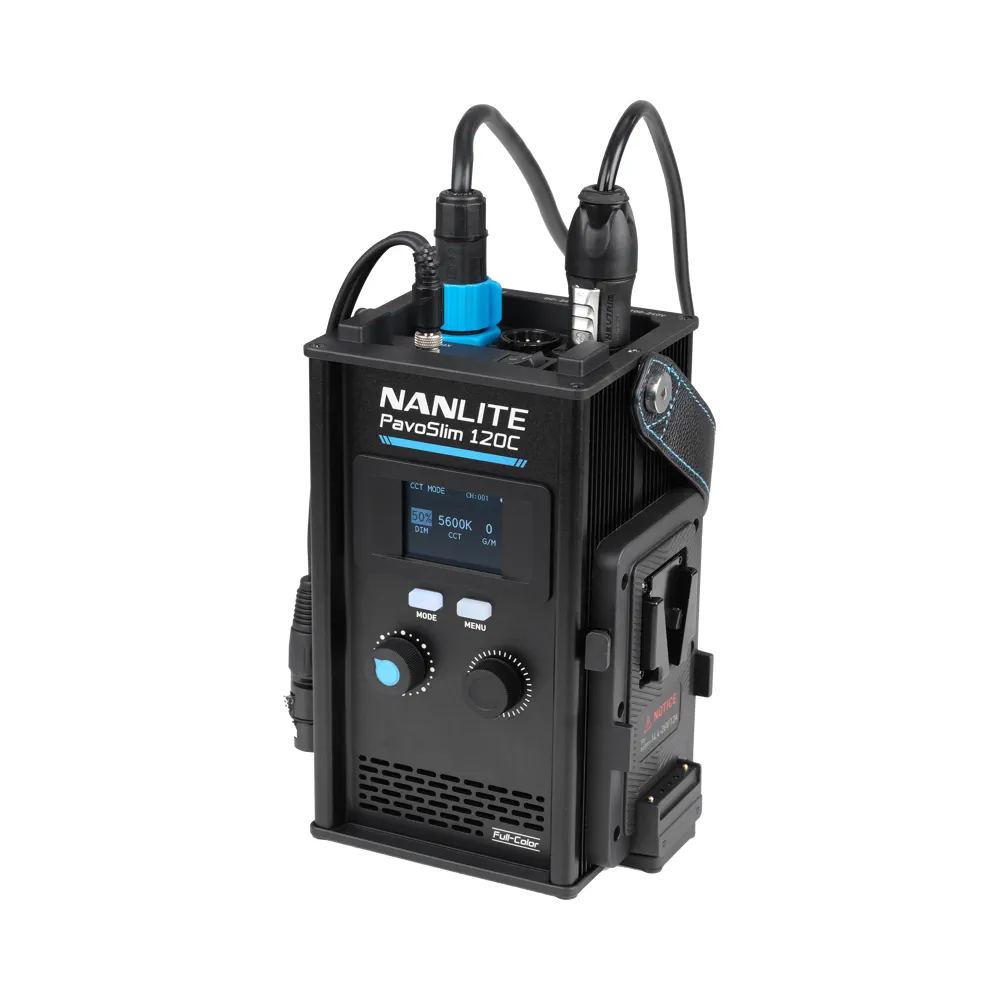

The PavoSlim 120C includes a power control unit with an intuitive design of two buttons, two knobs, and a two-inch screen.
With built-in 2.4G and Bluetooth modules, the PavoSlim can easily connect to the Nanlink App, facilitating wireless intelligent control for lighting in spaces like studios. It can also be integrated with other Nanlite lights for diverse scene lighting.
Additionally, with wired DMX/RDM, the PavoSlim can be part of a standard film and TV control system, simplifying the implementation of lighting effects.
The PavoSlim 120C also feature LumenRadio CRMX for wireless DMX/RDM reception, ensuring stability and flexibility for professional imaging.
Multiple Power Options, Deploy Anywhere
The PavoSlim 120C offer various power supply methods. Both models support hot swapping between power sources, facilitating uninterrupted shooting.
PavoSlim 120C Power Supply Options
- AC power supply
- DC power supply
- 14.4-14.8V V-mount battery
- 26V V-mount battery
Multiple Accessories

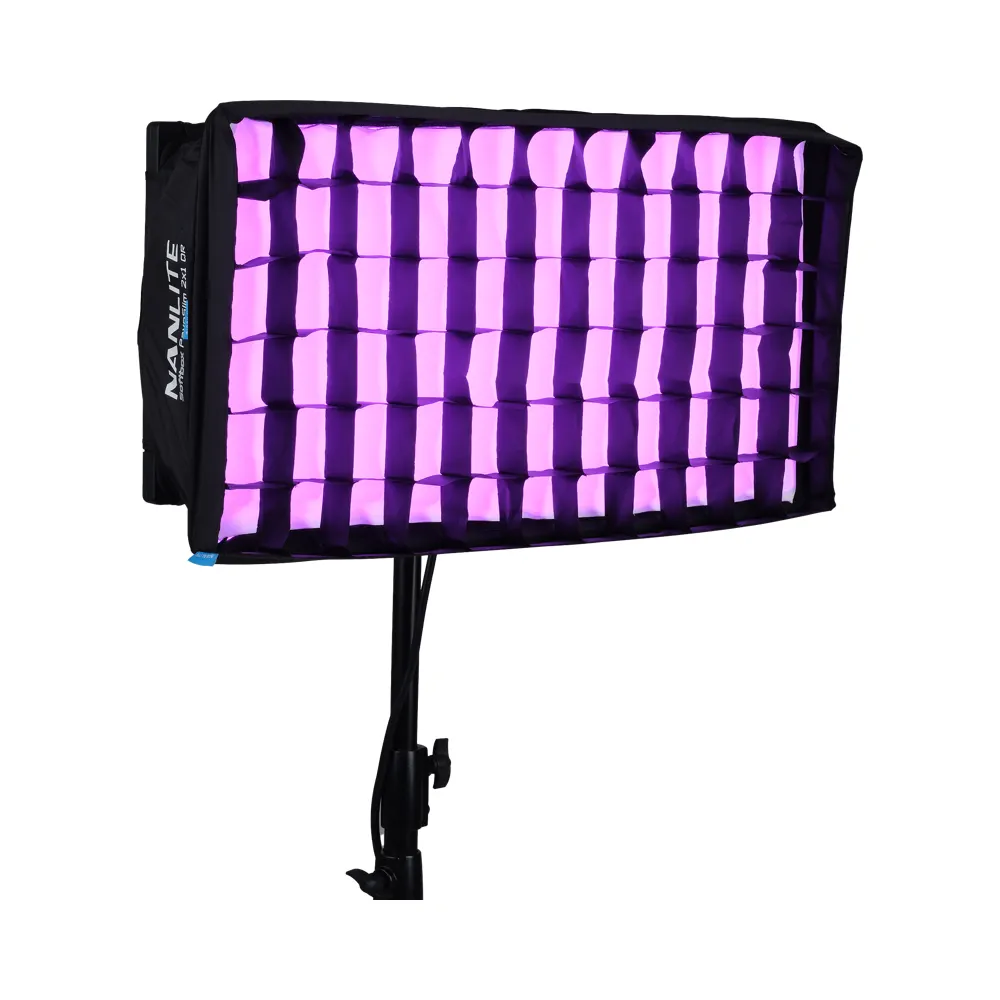

Accessories include a magnetic base adapter with a 1/4″-20 thread set for each corner of the PavoSlim, an extension cable, softboxes in foldable and compressible options, and a dual-panel coupler kit for the PavoSlim 120C.
Slender & Durable Case

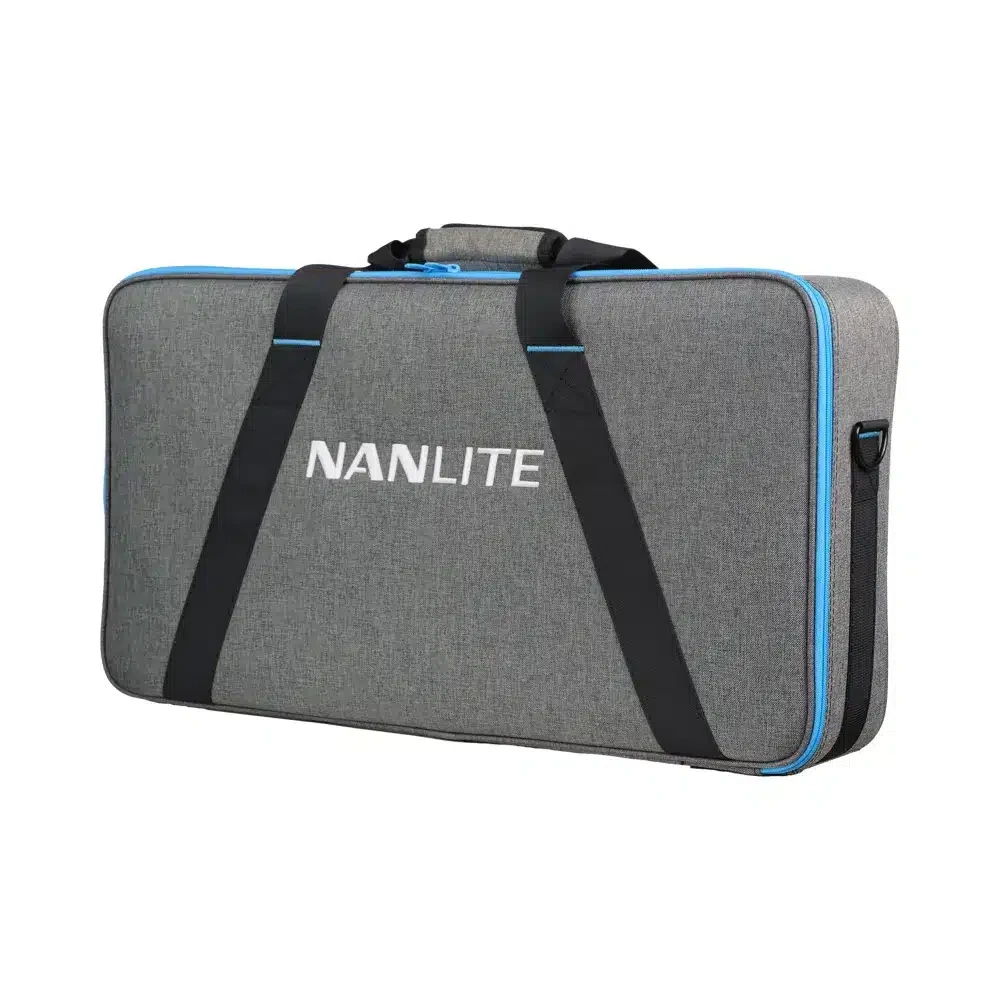

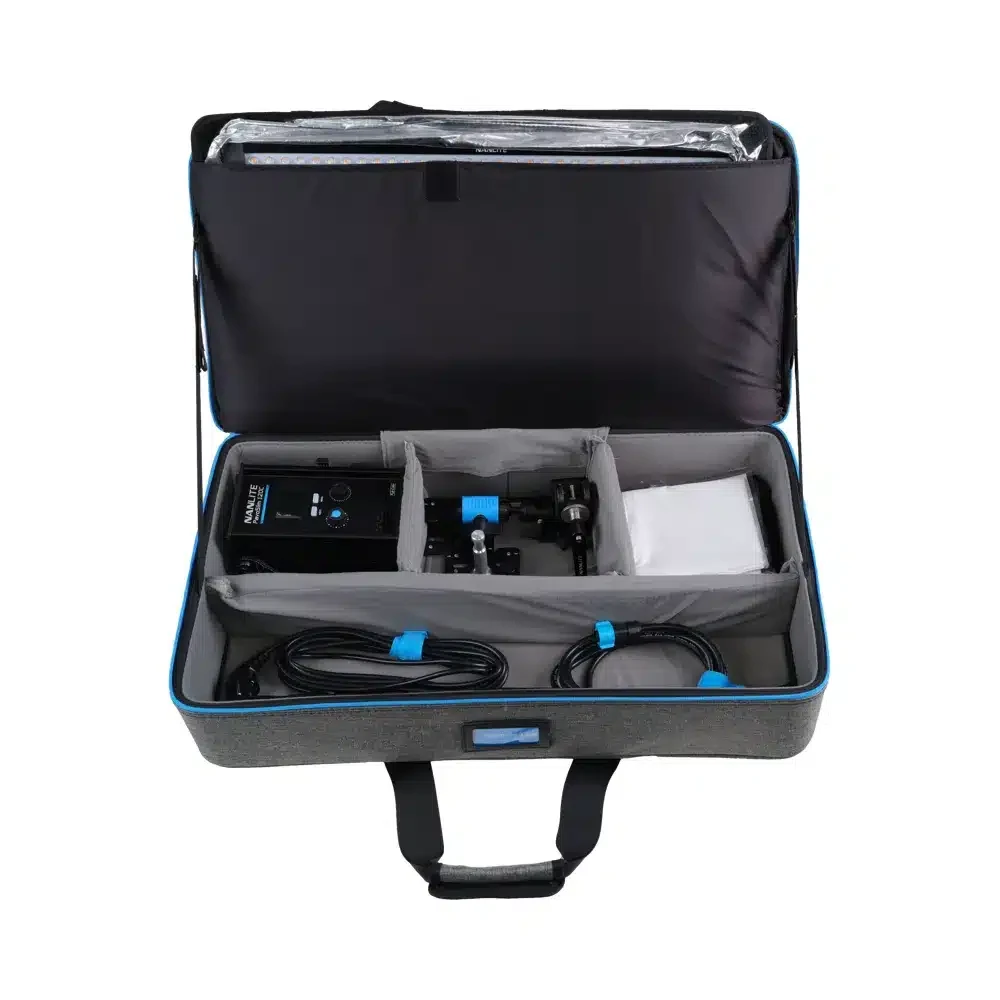

The included carrying bag is durably designed with internal partitions for convenient storage and reinforced stitching for longevity.

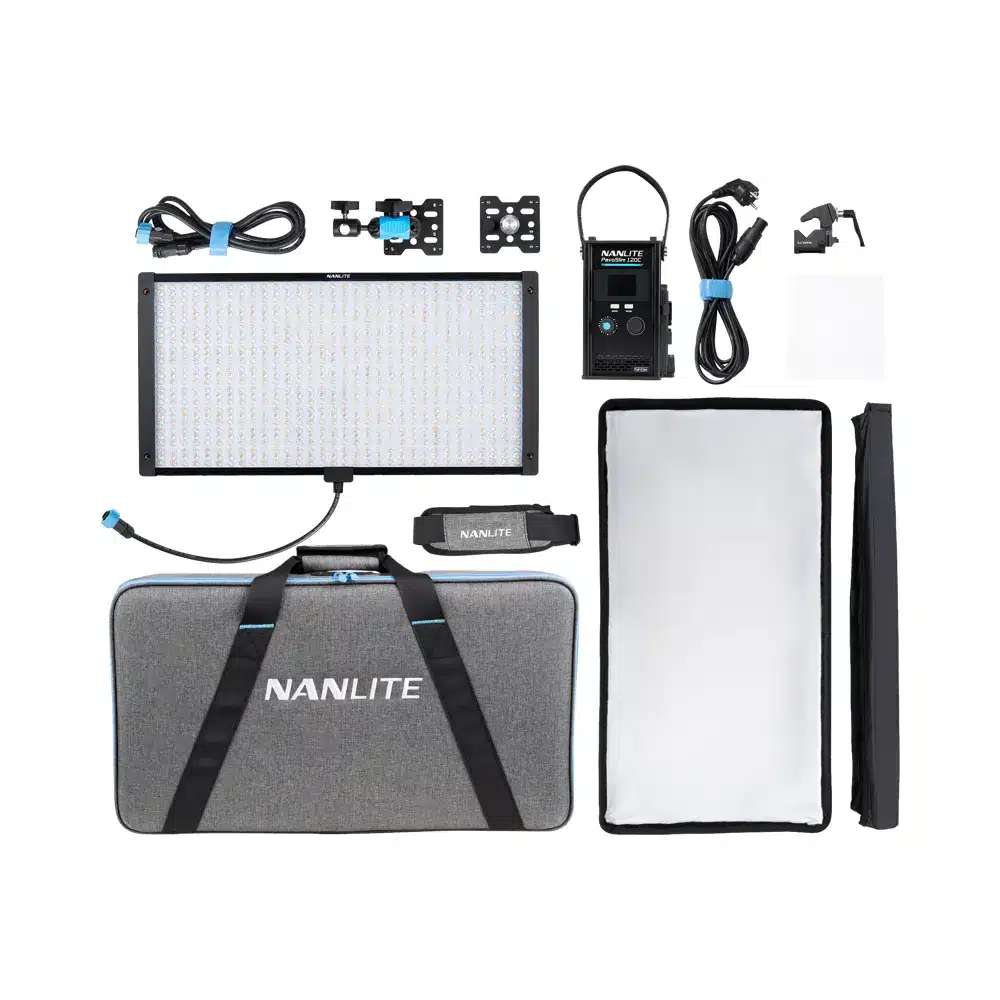

PavoSlim 120C Includes:
- PavoSlim 120C × 1
- Control Unit × 1
- Universal Holder × 1
- Quick Release Clamp × 1
- Baby Pin Holder × 1
- DC Connection Cable 2.6M × 1
- AC Power Cable 4.5M × 1

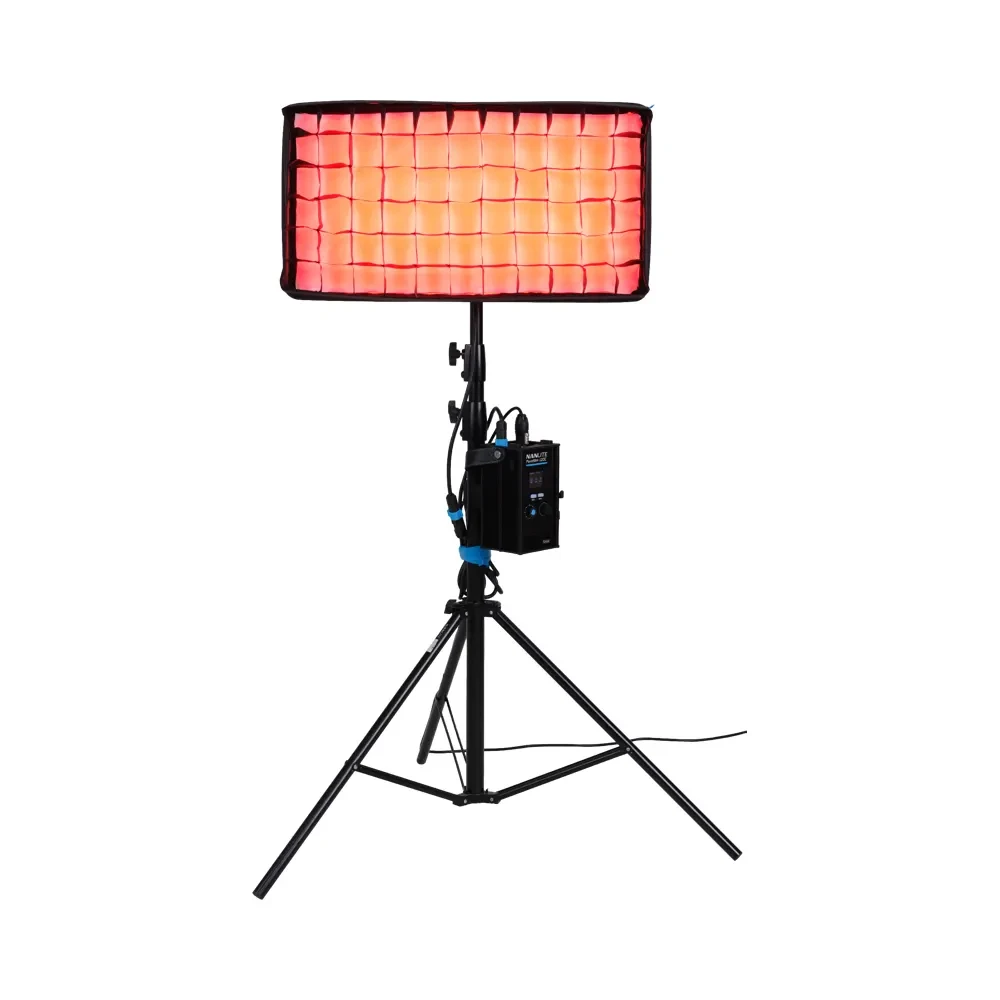

- Softbox × 1
- Diffusers × 2 (Standard Diffuser × 1 + Lite Diffuser × 1)
- Eggcrate × 1
- Carrying Bag × 1
- User Manual × 1
