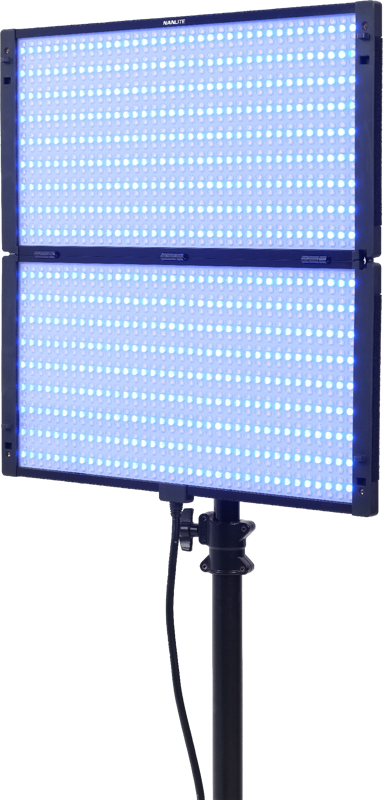

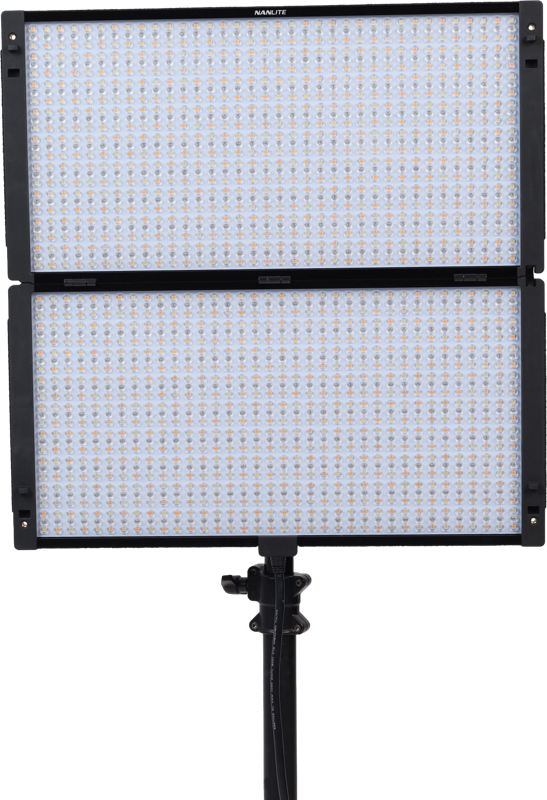

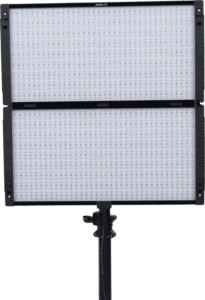

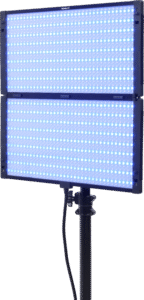

Kuumakse al. The latest in the new generation of PavoSlim LED panel lights – the bi-color PavoSlim 240B and full-color PavoSlim 240C – both feature a convenient foldable design for portability and fast setup, expanding the possibilities for higher power and larger illumination areas. The PavoSlim 240C is remarkably slim and lightweight, yet ruggedly constructed with metal bodies. They have highly accurate color rendering and class-leading output. The PavoSlim 240C will empower creators with more flexible options to achieve their visions.
Foldable Metal Body, Convenient Setup and High luminance
- Rated Power 260W
- Weight 3.44kg/3.65kg
- Thickness (unfolded) 2.86cm

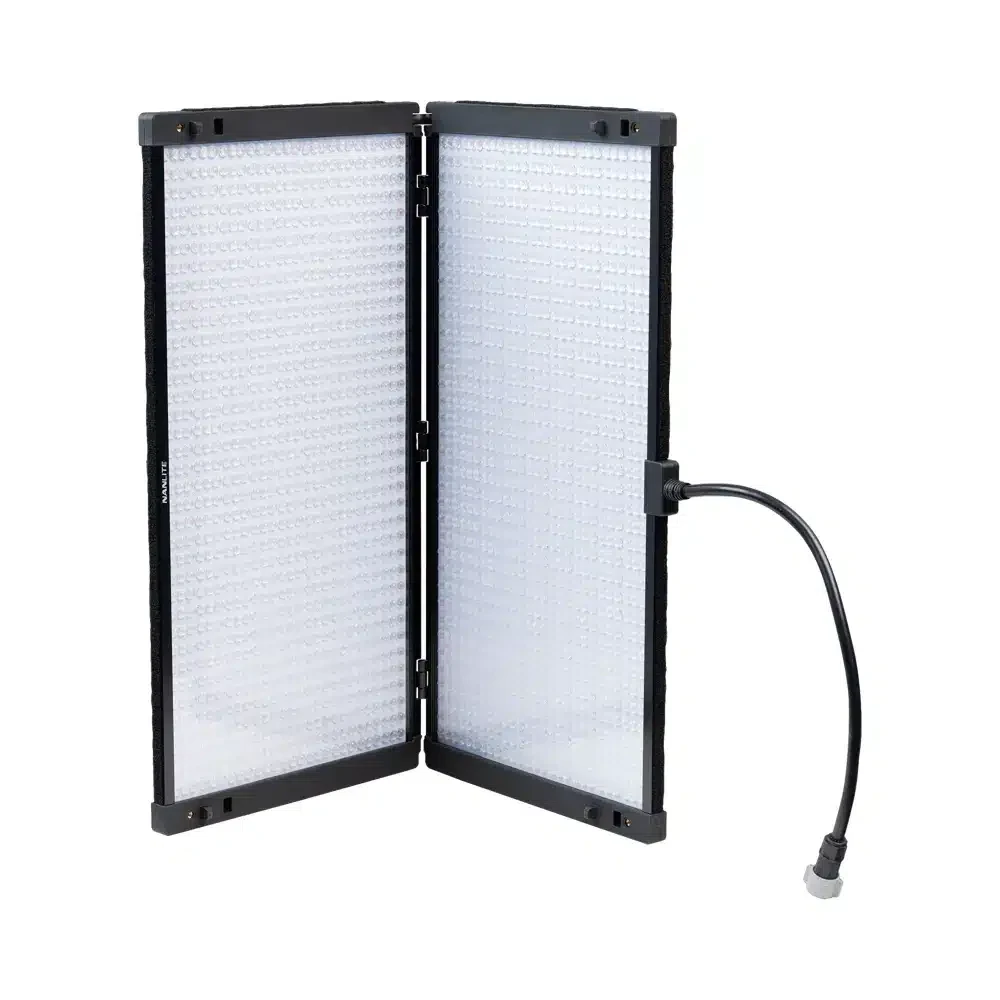

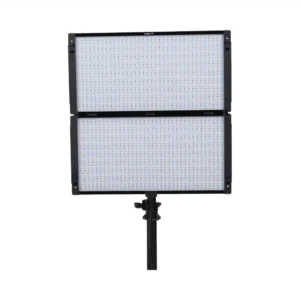

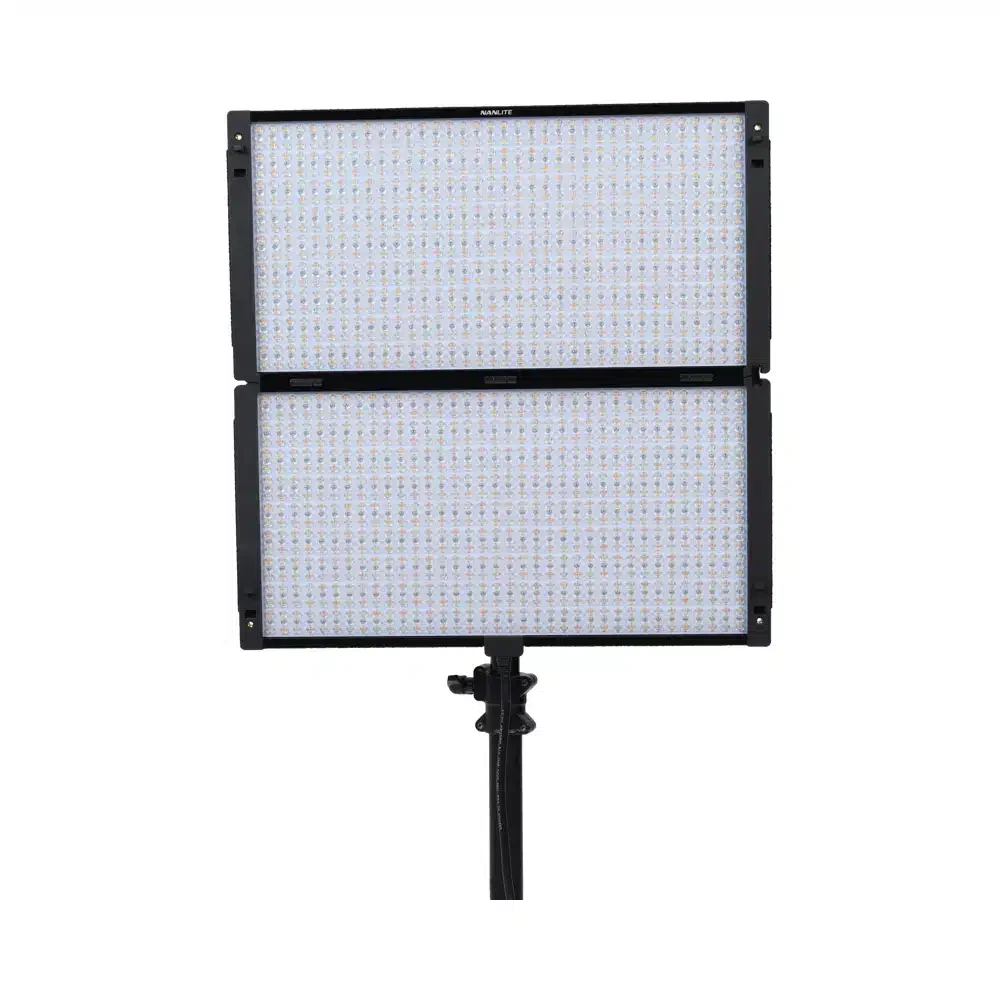

Through clever design, the metal body of the PavoSlim 240C can be quickly folded and unfolded in seconds. Mounting sockets along the fold on the rear of the fixture are combined with a universal or baby pin holder to ensure that it is securely locked into place when unfolded. This forms a sturdy and durable structure. Users can quickly and assuredly use the PavoSlim 240C for interviews, in medium-sized studios, and for demanding film and television productions.
Efficient Design, Maximum Output
The Nanlite team has developed a dedicated optical system for the individual emitters of the PavoSlim lights. Combining efficient heat dissipation and excellent optical design, the PavoSlim 240C achieve four times output compared to the average output of conventional mat light products.
Rapid Deployment
Every element of the PavoSlim is designed for rapid deployment. Because every minute counts on set, the PavoSlim 240C can be quickly unfolded, secured and locked into place in moments. The accessories are also designed with the same philosophy for easy and rapid set-up.

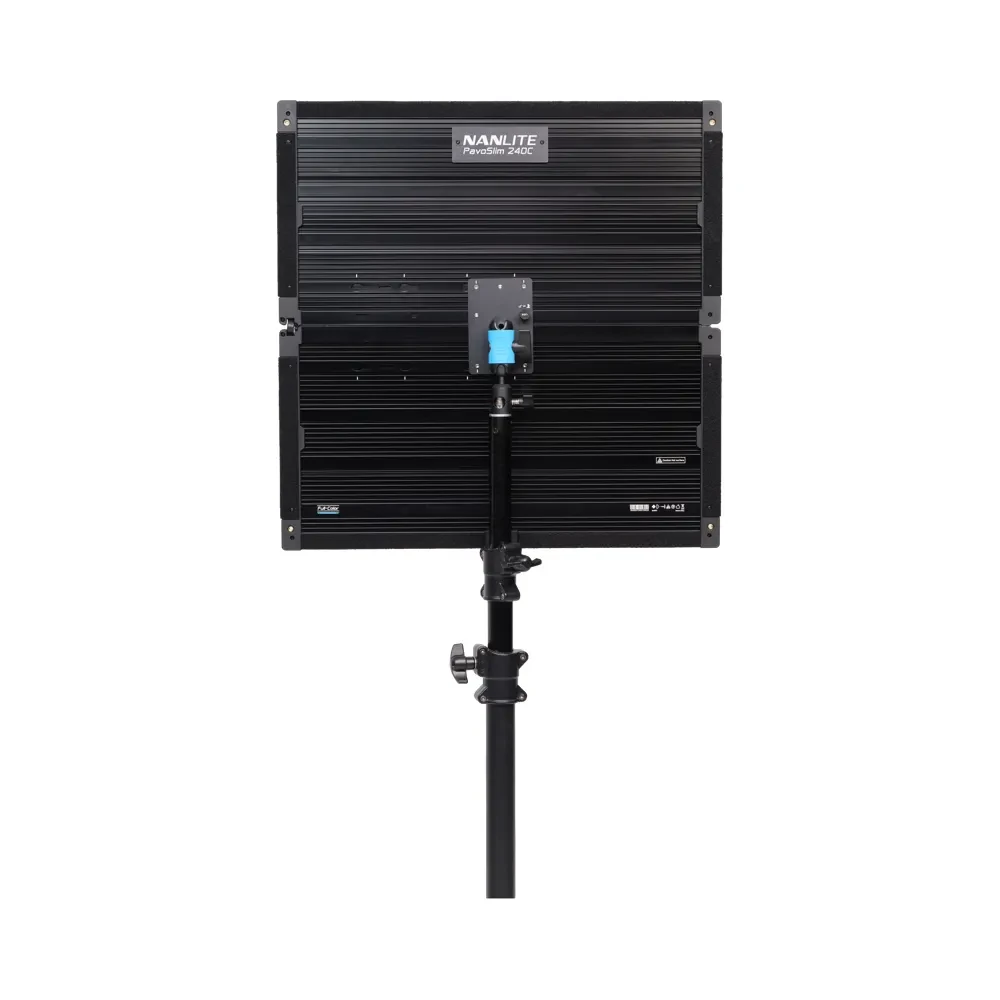

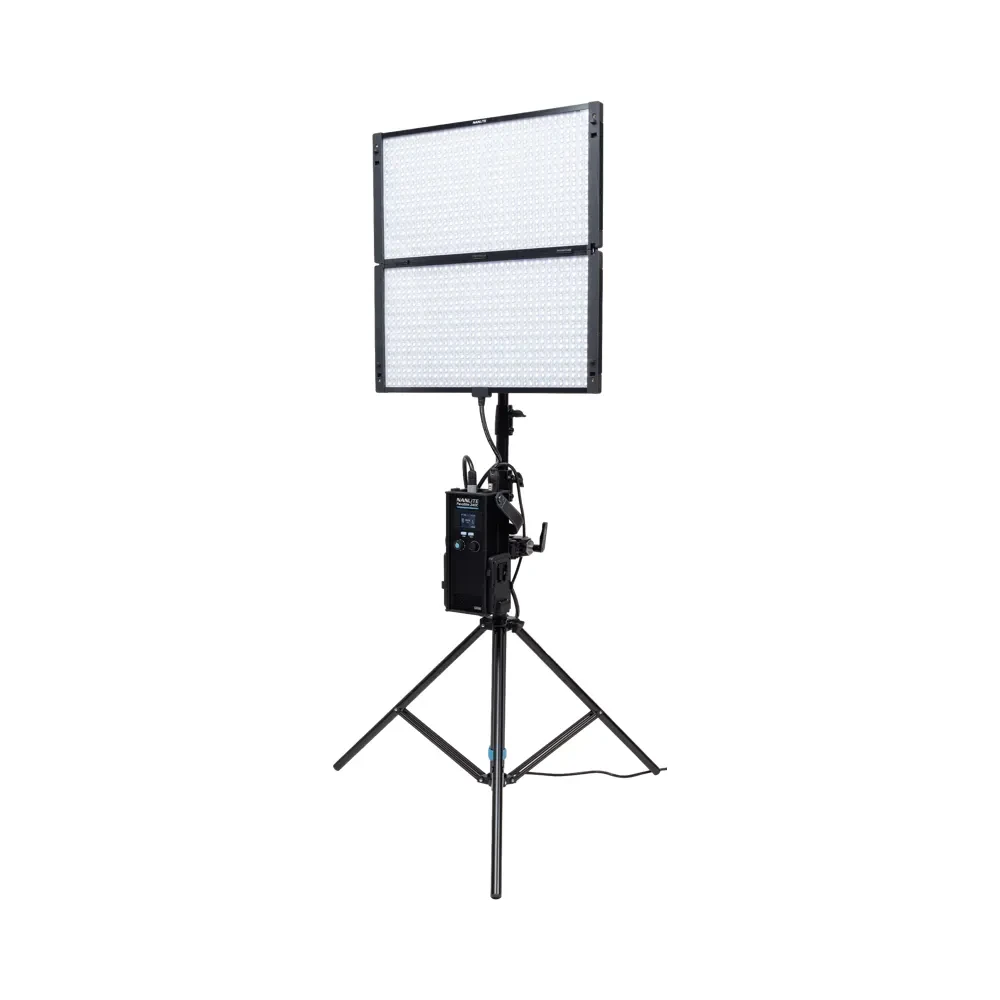

The back of each PavoSlim 240C fixture has multiple 1/4″-20 sockets for flexible mounting in various situations. The control unit is designed with compatibility for mounting via a quick-release plate, which can be used with the included quick-release clamp for mounting to light stands or truss (also found on NANLITE Forza II series fixtures). The control unit has a useful hand carry strap which can also be used to hang it from a light stand.
PavoSlim 240C

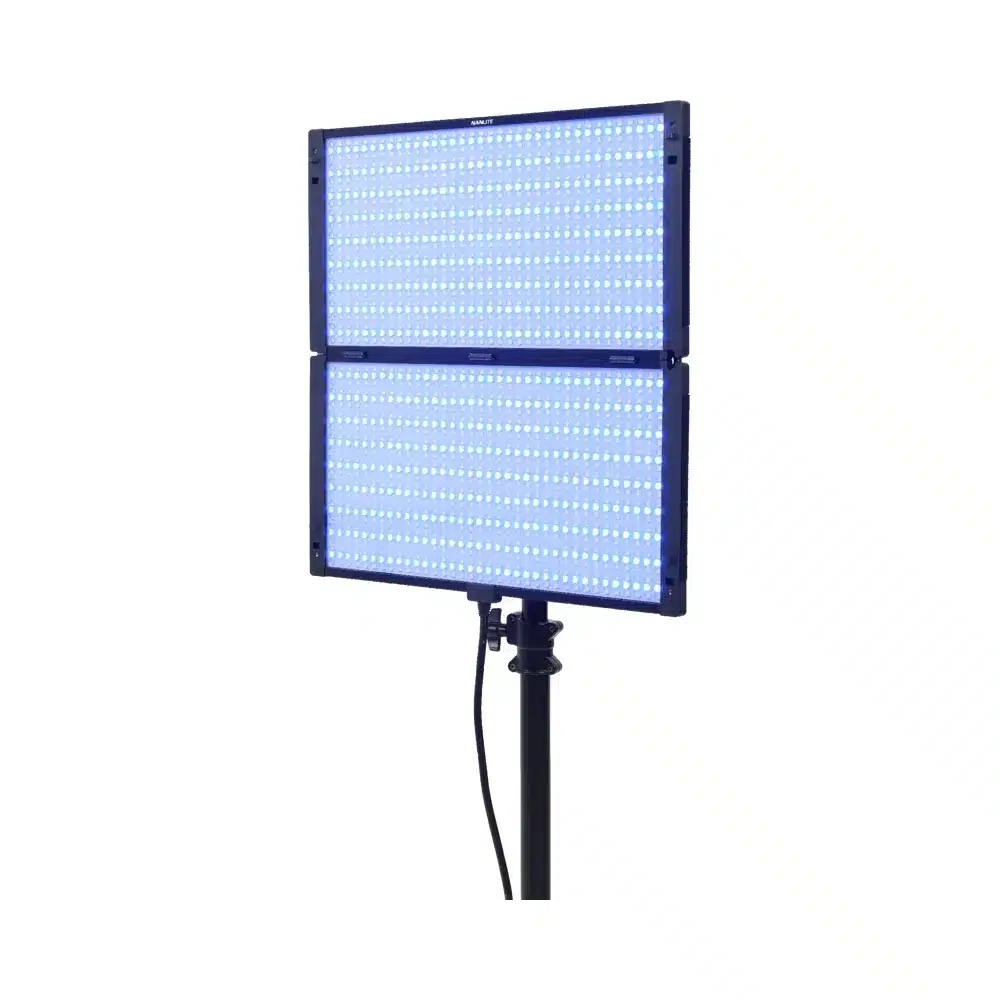

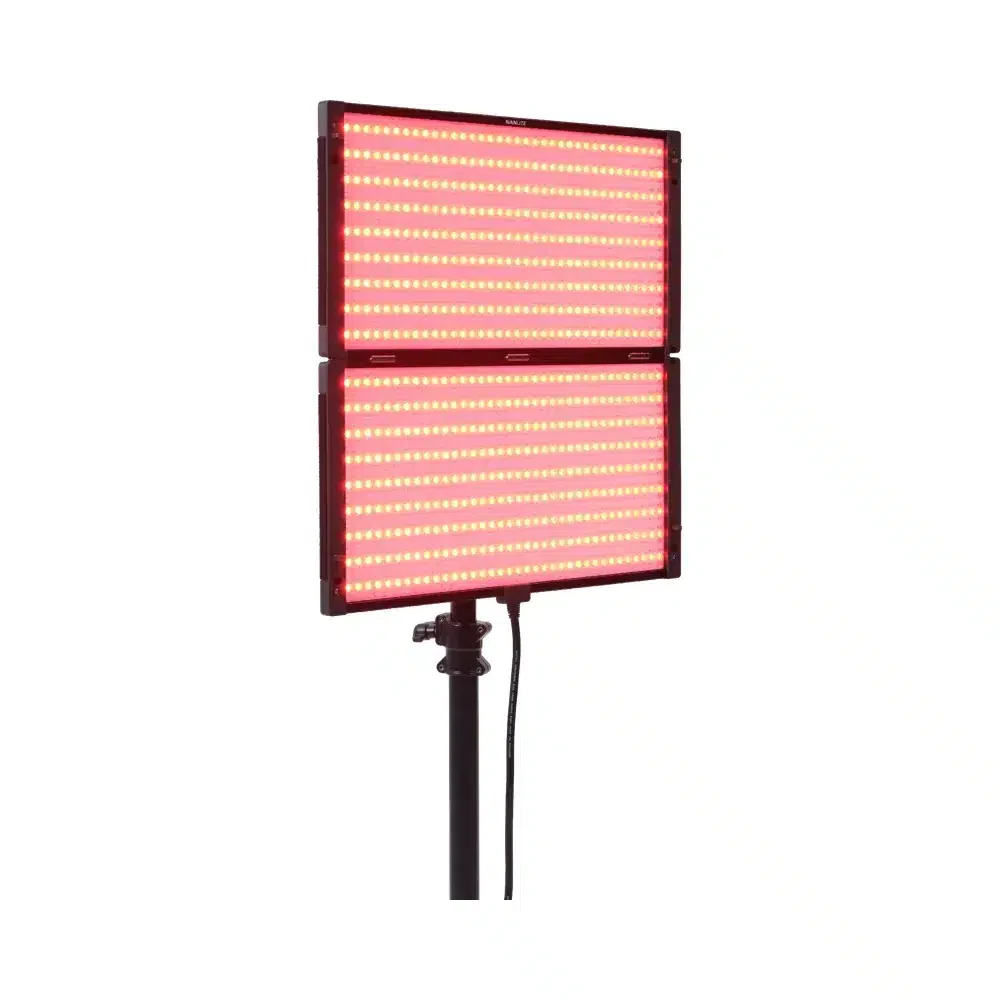

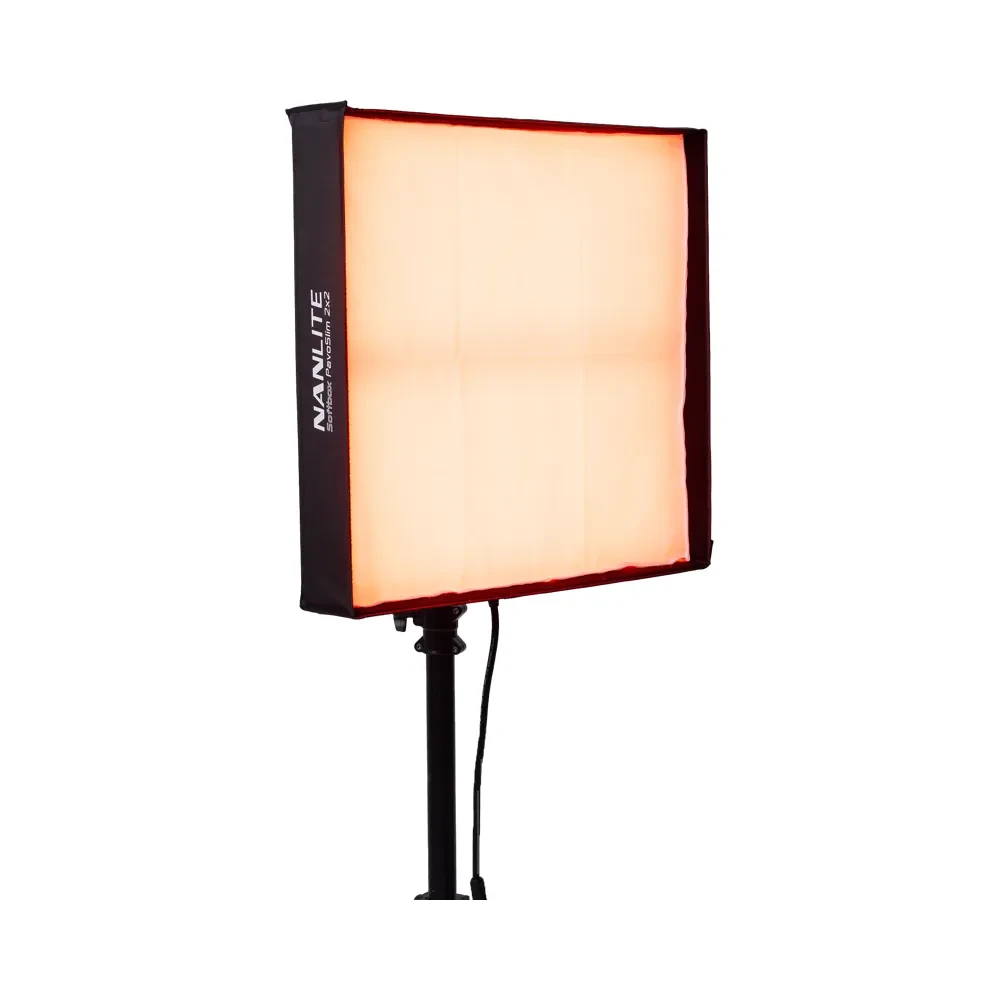

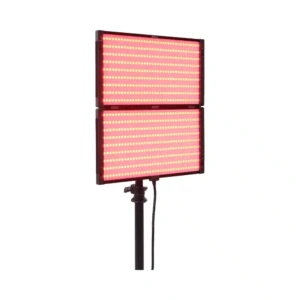

With RGBWW color mixing technology, PavoSlim 240C provides multiple modes for lighting options.
- CCT Mode
- CCT Range: 2700K-7500K
- G/M adjustment: ±150
- CRI: Average 96 TLCI: Average 97
- TM-30 Rf: Average 94
- TM-30 Rg: Average 100
- SSI
- 3200K: 83
- 5600K: 74
HSI Mode
In this mode, the hue, saturation and intensity of light can be quickly adjusted with the option of 36,000 colors.
RGBW Mode
This offers control of four separate channels: red, green, blue and white, enabling more color precision.
Gel Mode
The PavoSlim 240C has 151 built-in color gel emulations that can be used to match scenes, add ambience or evoke emotion. This will not only accurately reproduce the colors of commonly used gels, but speed setup by eliminating the need to install gels.
Effect Mode
PavoSlim 240C is equipped with 15 different film and TV lighting effects. Various parameters of each effect can be adjusted on-board, while additional customized settings are obtainable by the NANLINK App, LumenRadio CRMX and DMX/RDM.
PavoSlim 240B
- CCT Range: 2700K-6500K
- CRI: Average 95 TLCI: Average 97
- TM-30
- Rf: Average 95
- Rg: Average 102
- SSI
- 3200K: 83
- 5600K: 73
PavoSlim 240C is equipped with 12 effects for simulating real scene lighting effects. Various parameters of each effect can be tuned on-board, while more customized settings can be obtained by Nanlink App and DMX/RDM.
Professional Control Options

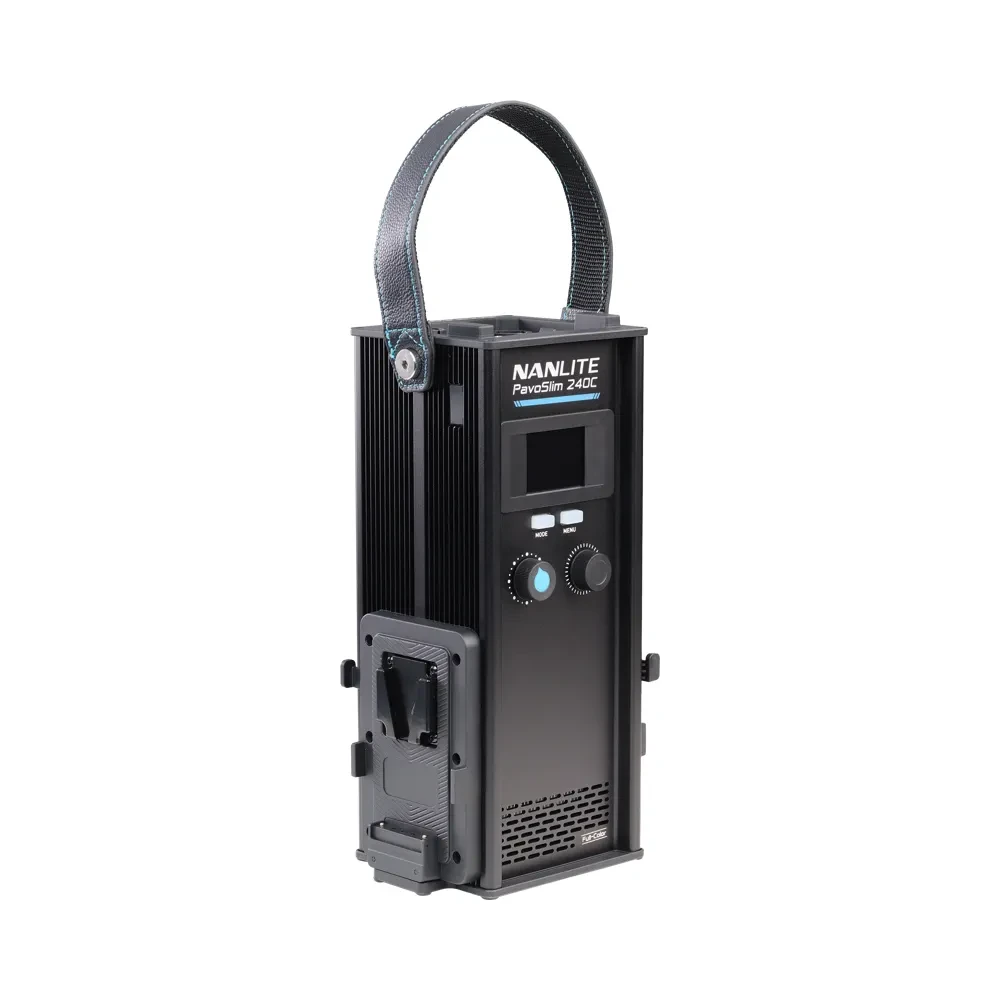

On the included control unit, all settings are accessed using just two buttons and two knobs, and are clearly displayed on the two-inch screen.
With built-in 2.4G and Bluetooth modules the PavoSlim 240C can be easily connected to the NANLINK 2.0 App. This is a great way to achieve wireless intelligent control for lighting, especially when integrated with other NANLITE tube lights and point source lights. Together they can create diverse and complementary lighting solutions.
Thanks to the DMX/RDM settings the PavoSlim 240C can be used with a standard film and TV standard control system, jointly controlled alongside other lighting fixtures in the same DMX network. The PavoSlim 240C is also equipped with LumenRadio for advanced wireless control operation. This makes lighting effects simpler and more efficient.
Multiple Power Options, Deploy Anywhere

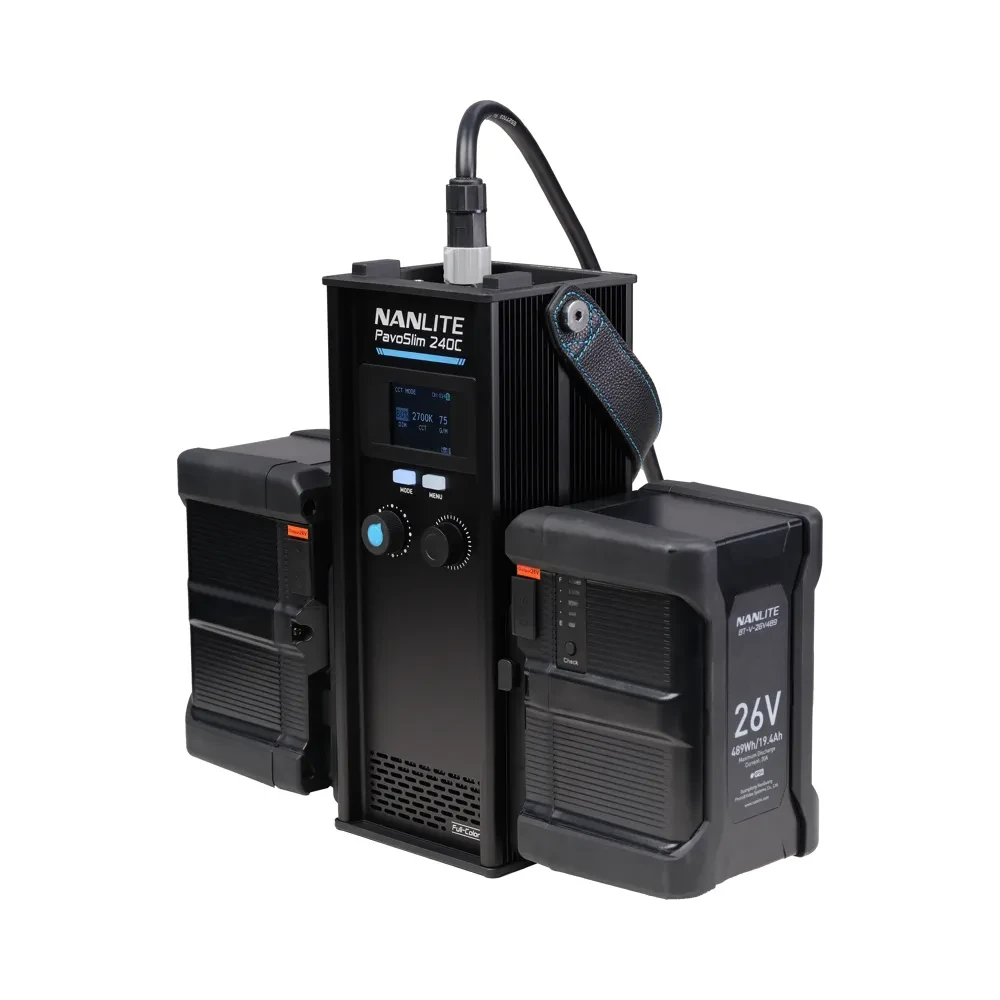

The PavoSlim 240C can be powered by AC power, DC power and V-mount batteries. All power supply methods support full power output, making the PavoSlim 240C suitable for both indoor and outdoor scenarios.
The PavoSlim 240C also supports hot swapping among different power supply modes, allowing for continuous shooting without interruption.
AC power supply, DC power supply, V-mount battery (14.4-14.8V, 26V)*
*Before hot swapping, ensure that the brightness of the PavoSlim 240C is set within the power range of the respective power supply method. The corresponding power output ranges for different power supply methods are as follows:
- 14.4-14.8V V-mount battery × 1: 50% of max output,
- 14.4-14.8V V-mount battery × 2: full power output,
- 26V V-mount battery × 1: 80% of max output,
- 26V V-mount battery × 2: full power output,
- 14.4-14.8V V-mount battery × 1 and 26V V-mount battery × 1: full power output.
The PavoSlim 240C body has a 0.4M DC connection cable attached. This is then joined to the control unit via a 5M DC connection cable.

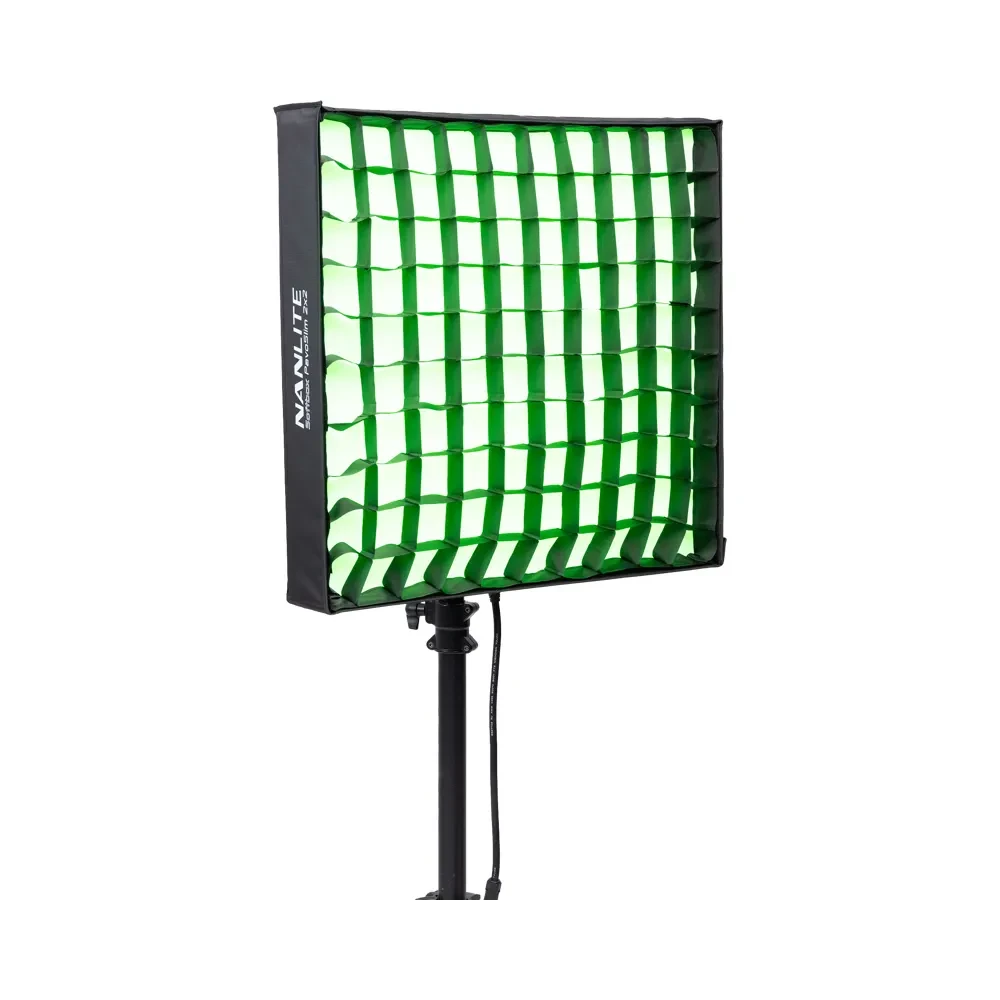

Foldable Softbox

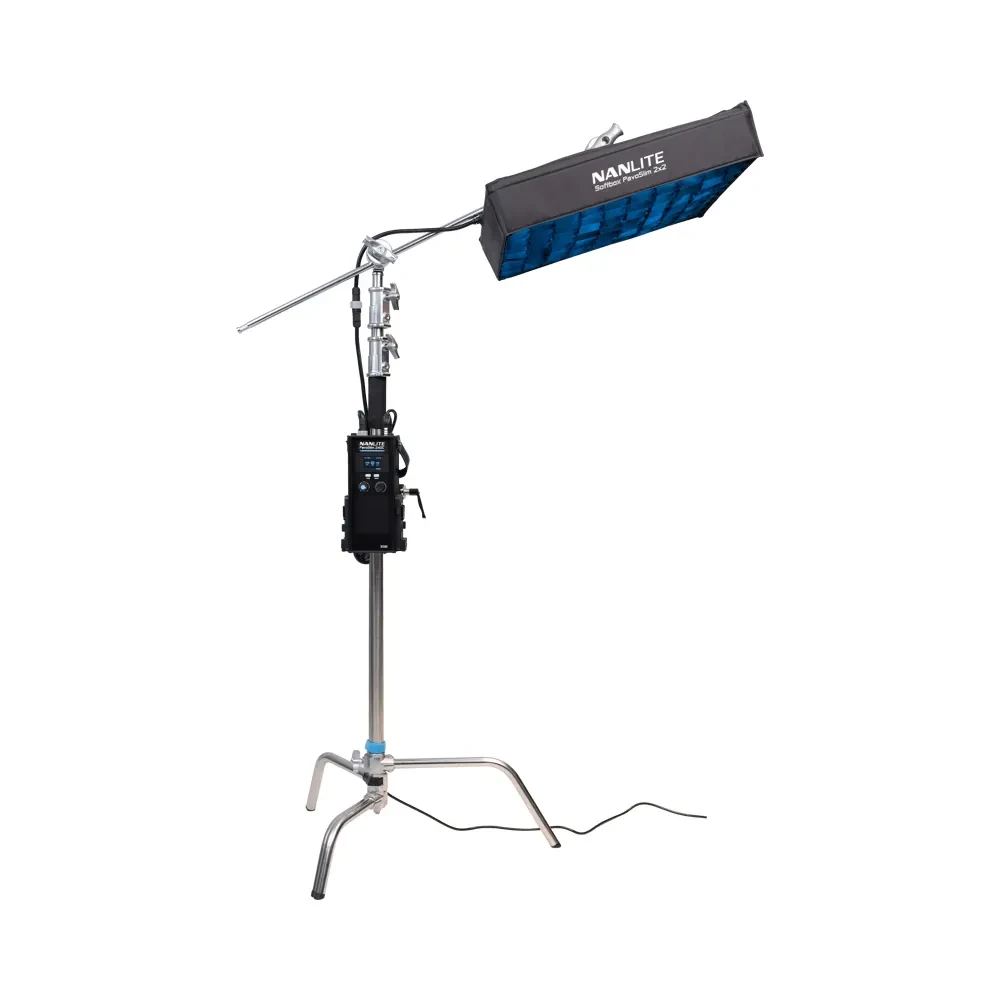

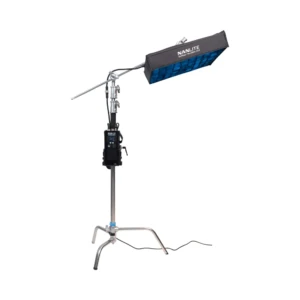

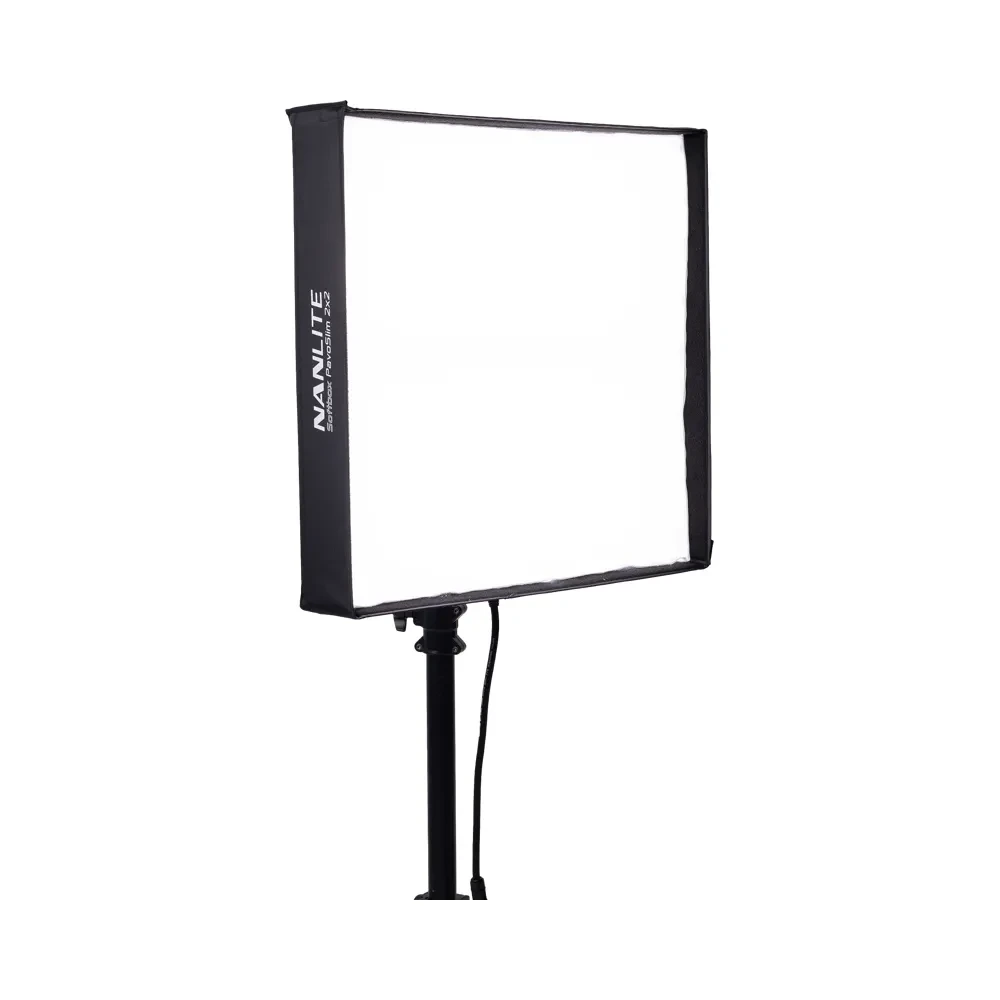

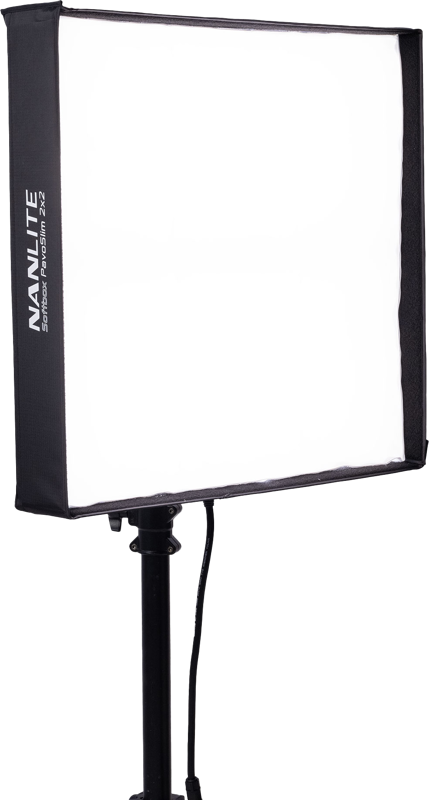

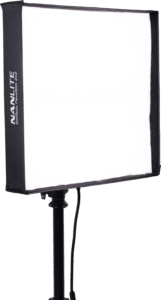

The PavoSlim 240C comes with the exclusive foldable softbox, which has a folding design for easy installation and removal.

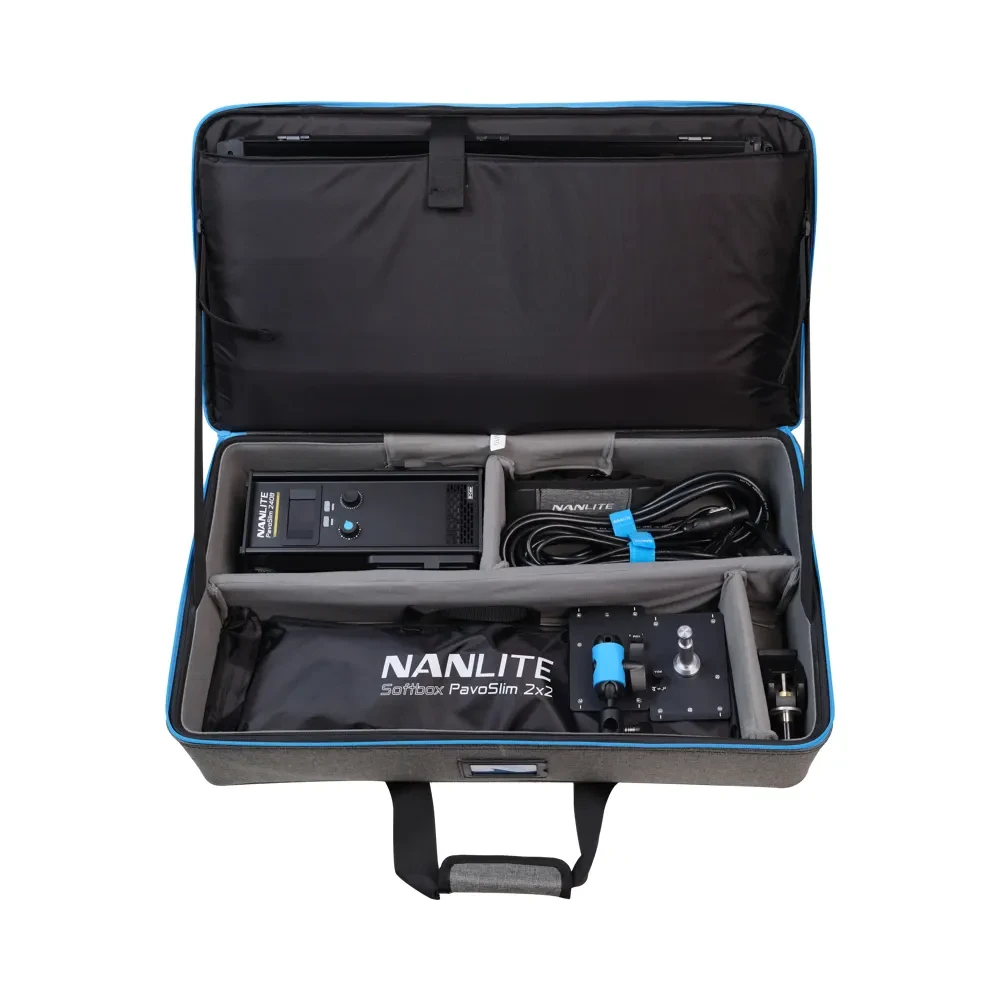

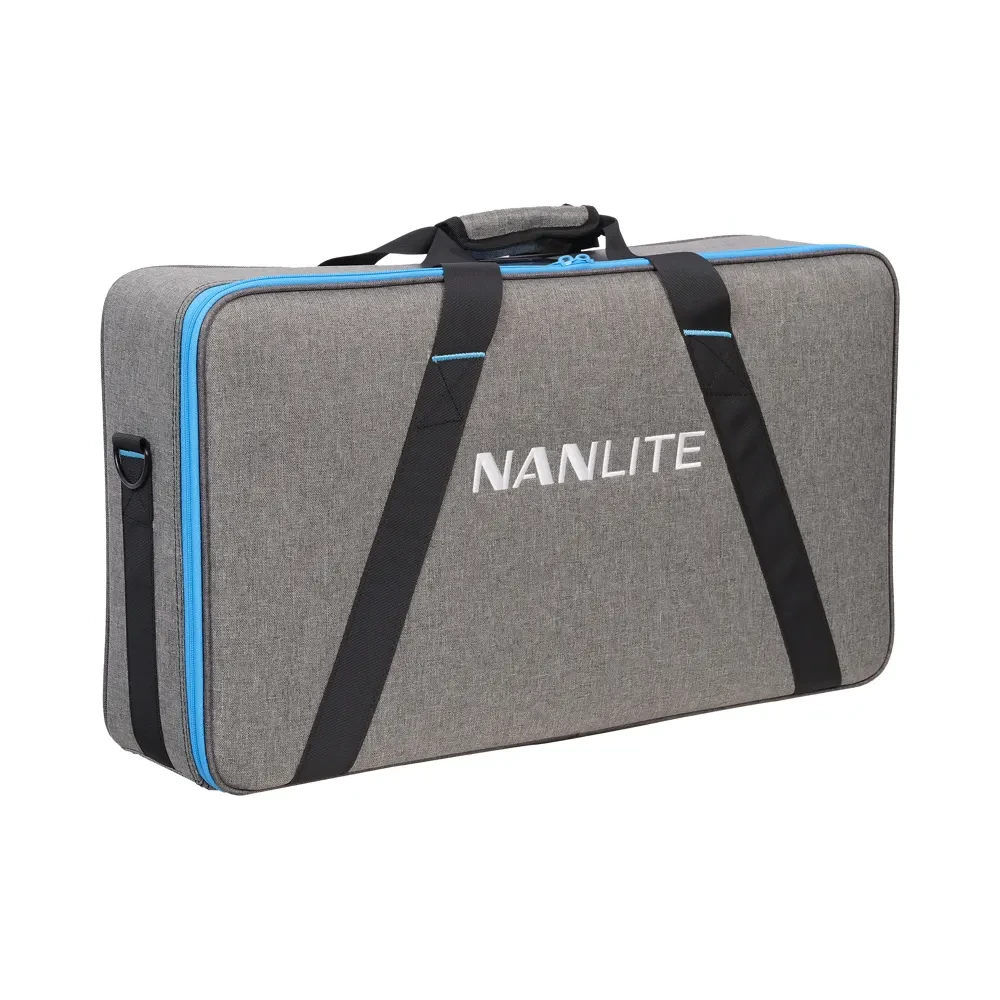

Slender & Durable Case
The included NANLITE carrying bag is thoughtfully designed with a solid structure and logically arranged internal partitions for quick and convenient storage. External reinforced stitching ensures the bag is durable.

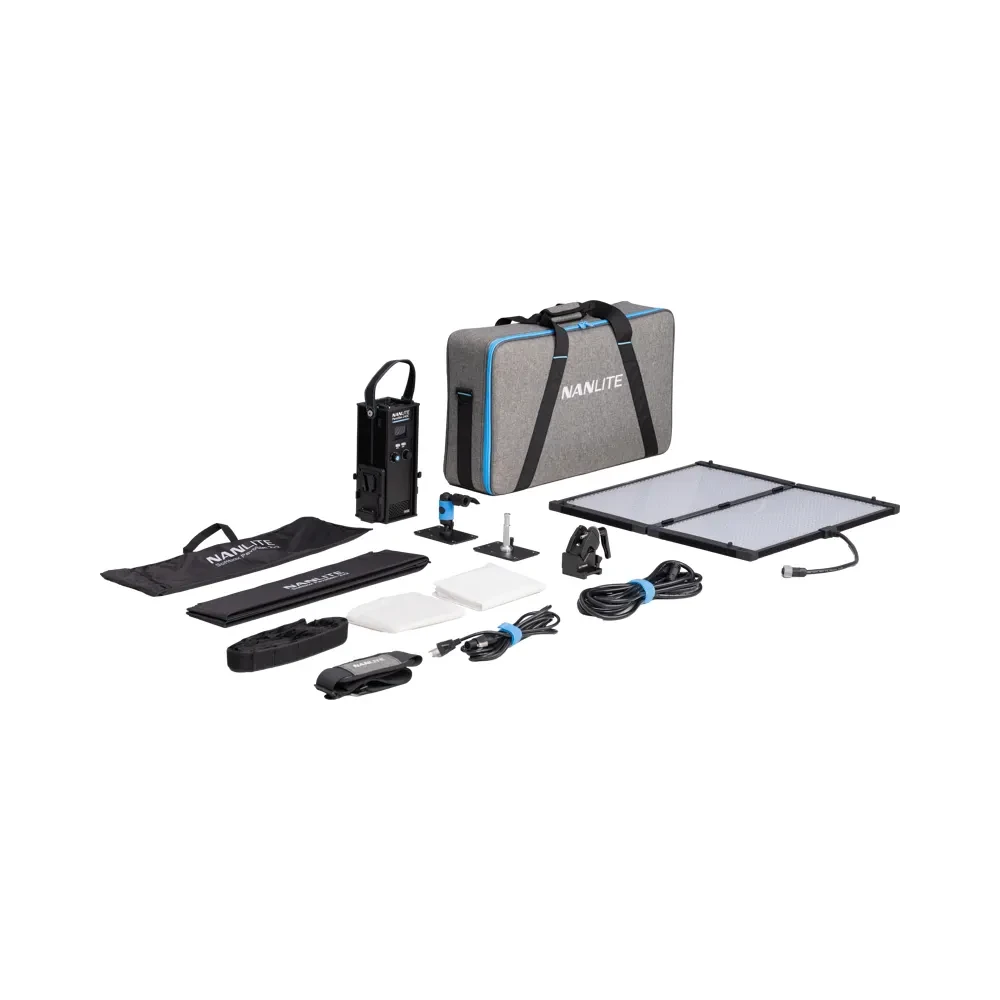

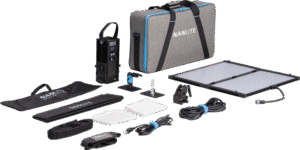

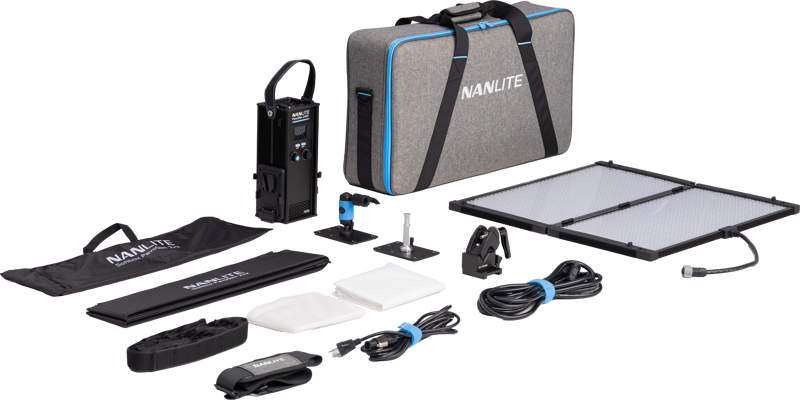

PavoSlim 240C Includes:
- PavoSlim 240C × 1
- Control Unit × 1
- Universal Holder × 1
- Quick Release Clamp × 1
- Baby Pin Holder × 1
- DC Connection Cable 5m × 1
- AC Power Cable 4.5m × 1
- Softbox × 1
- Diffuser × 2 (Standard Diffuser × 1+Lite Diffuser × 1)

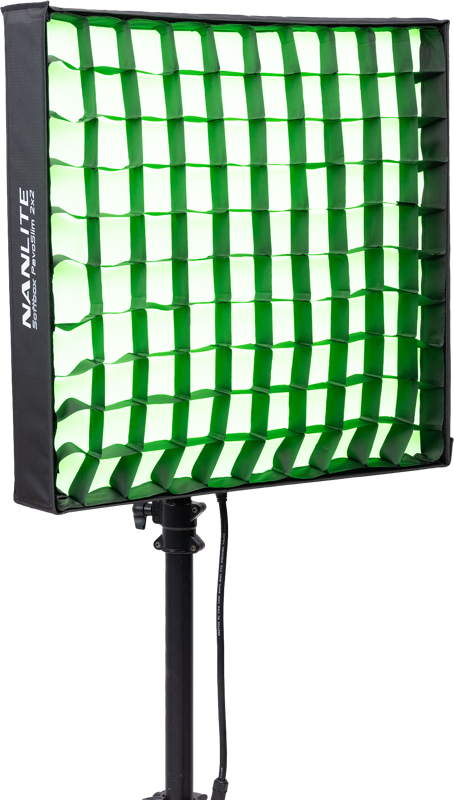

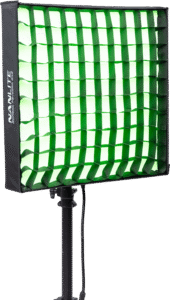

- Eggcrate × 1
- Carrying Bag × 1
- User Manual × 1
