Kuumakse al. Made from CNC-machined aluminum, the cage is specially designed for the Sony Alpha a7S III / a7 IV. The camera is strongly mounted to the cage using a 1/4-20 screw and an Allen key.
The cage is designed with the following mounting options: (1) cold shoe, several 1/4-20 threaded holes and (7) 3/8″-16 threaded holes with anti-rotating Arri hole patterns.
The design of the cage also allows easy access to all control buttons, side outputs, the memory card, the battery compartment, the lens release button and the camera hot shoe for the audio unit system.
All doors and locks are fully usable when the camera is in the cage and its intelligent design allows you to operate the camera without having to remove the cable doors.
In addition, the strap hooks can remain attached to the camera while being inserted into the cage. A detachable lock system to secure and hold in place your 3 left cables as well as your 4K FULL HDMI cable is included with the cage.
The bottom of the cage has (2) 1/4-20 threaded holes to mount a quick release tripod plate to switch from a tripod to a shoulder configuration.
A DELTA adapter (included in this package) can be added to mount on 15 LWS baseplate, an ARRI rosette can be added on the right side to mount compatible accessories (included in this package).

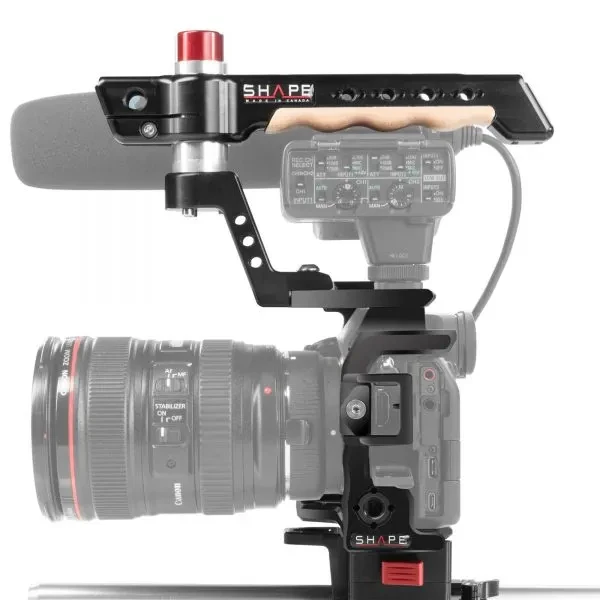

Wooden Push-Button Top Handle
The ergonomic and easily removable SHAPE Top Handle was designed to provide the required space for mounting your Audio Unit. It offers a comfortable and secure wooden grip for carrying your camera and securing accessories.
It also features the SHAPE Push-Button Technology, enabling you to balance the weight and rotate the handle in the position you need for a 360-degree axis. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its locked.
This nicely crafted Push-Button Top Handle provides multiple mounting options, including ARRI Standard 3/8″-16 anti-rotating hole patterns on the top, SHAPE Standard 1/4″-20 anti-rotating hole patterns on the top and side, cold shoe mounts, and a 3/8″-16 UNC threaded hole at the front.
The SHAPE Rod Clamp at the front (15CTH) can be added, allowing you to directly mount a 15 mm rod onto the handle. Made of CNC Aluminum, the 15 mm LW Clamp (15CTH) can be easily attached to the top Handle. The clamp is designed to support a 15 mm rod such as the SHAPE REVOLT EVF Mount Bracket.
The ratchet knob clamp lets you adjust and strongly fix the position of the 15 mm rod to the SHAPE Top Handle and (2) cold shoe mounts, one at the front of the handle and one at the back.
Quick Handle Rod Bloc
The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob.
A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle.
SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.
Composite Mini Shoulder Pad
The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows attaching SHAPE counter-weight (PAD1, PADCW1).
By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily support the weight of the camera and its accessories.
The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.
Back Pad
The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attached or remove easily from your rig via a 1/4-20 camera screw knob.
Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2″ vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.
