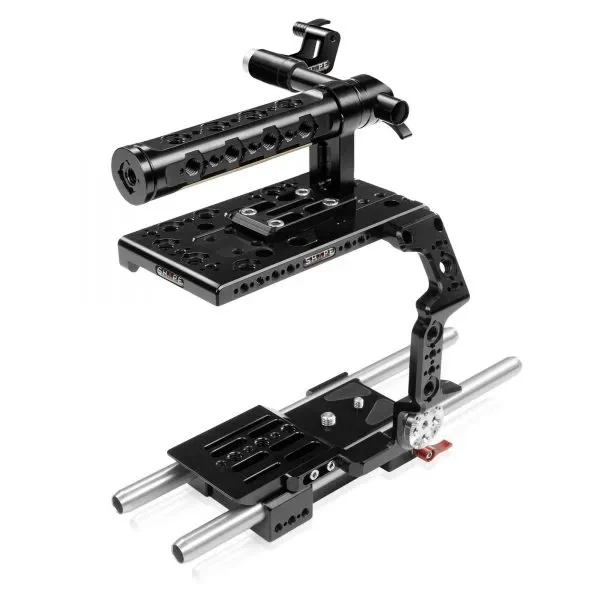

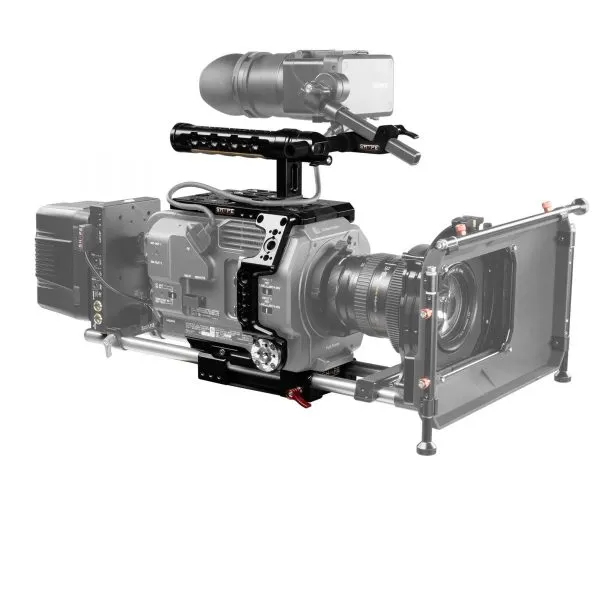

Kuumakse al. Add accessories and handheld functionality to your Sony PXW-FX9 camera with this rig kit from SHAPE. It includes a baseplate with 15mm rod system, a form fitting side plate with Arri rosette, a top plate, a rear insert plate, a top handle with several threaded holes, and a viewfinder rod clamp with 25mm push-button.
The baseplate matches the Sony FX9 optical center and can also be tripod-mounted. The rear insert plate attaches to the rear of the camera to support it on the baseplate. The 15mm 12” rods allow you to mount additional accessories.

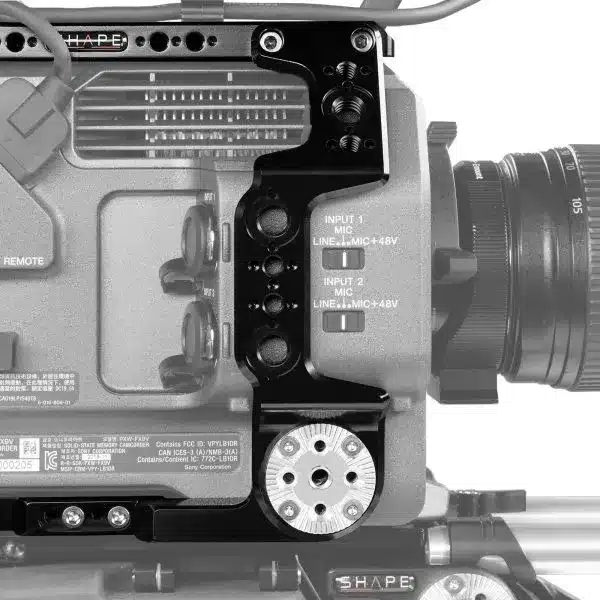

Sony FX9 Kamera Cage
Add accessories and handheld functionality to your Sony PXW-FX9 camera with this kit made of CNC aluminum. It includes a form fitting side plate with Arri rosette, a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti-rotating holes. The top plate is also designed to fit the native Sony FX9 handle.
Sony FX9 15mm Baseplate
The lightweight baseplate with 15 mm rod system is designed to match the Sony FX9 optical center. It features two attachment points (1/4-20 and 3/8-16) for securely mounting the Sony FX9 body. The baseplate also comes with a pair of 15 mm rods that are 12” long through the length of the baseplate. The bottom of the plate feature several 1/4″-20 and 3/8″-16 mounting holes for mounting and balancing your camera on equipment like a tripod.
Sony FX9 rear insert Plate
The rear insert plate is a CNC aluminum support plate compatible with the Sony FX9 camera. The plate mounts to the camera body via three M4 mounting screws. The center of the plate is designed with (3) 3/8-16 and (3) 1/4-20 threaded holes for tripod mount. The large surface of the plate also provides necessary support when the camera is mount to a tripod or a shoulder mount.

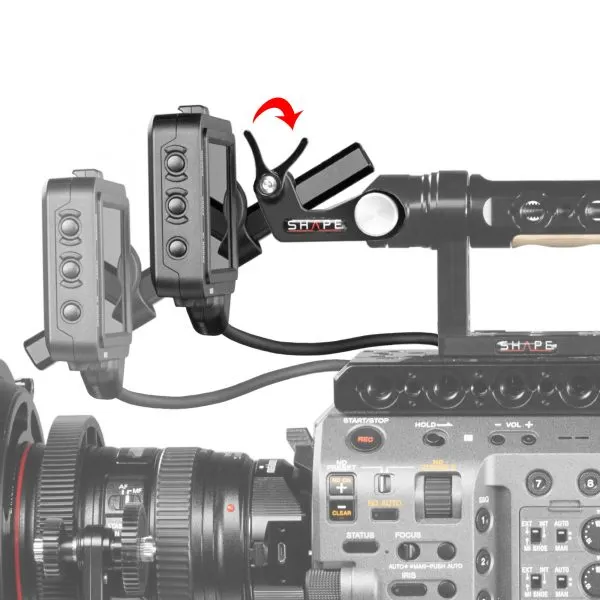

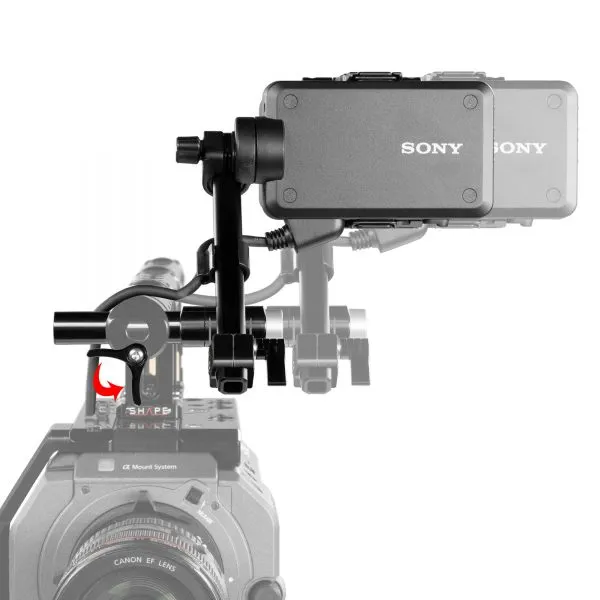

Sony FX9 Push-Button view finder mount
The Push-Button Viewfinder Mount is designed with a 15mm rod with push-button and an L-bracket viewfinder clamp with ratchet knob. The 15mm rod is compatible with the Sony FX9 camera handle or any 15mm mounting hole. It features two points of articulation for horizontal, vertical, and transversal adjustment of your viewfinder. By simply pressing the SHAPE patented push-button, you are allowed a 360-degree rotation to place your view finder in the best position for your use. Push, adjust, release, and then its lock.
