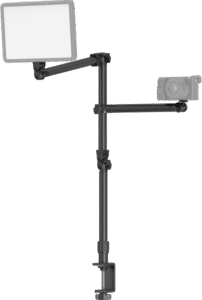

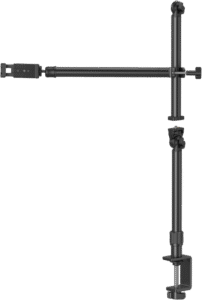

SmallRig 4456 Live Desktop Camera Bracket DT-50
The C-clamp and articulated arm of the bracket are made of aluminum alloy, which is durable and light to carry.
The bracket can realize any 360° angle adjustment of the device through a 3-section articulated arm (180° rotation of the sections) and a bottom knob.
Both the C-clamp and the articulated arm are detachable, flexible to combine and customize according to your needs, and easy to carry around.
The rotating shaft of the articulated arm features a solid gear structure to realize a stable load-bearing capacity of 2.7KG when tilted, and 3.3KG horizontally.
The bracket also comes with an aluminum crab-shaped clamp and holding arm to support an additional device at the same time.
The detachable 360-degree ball head on the top of the holding arm makes shooting more efficient.
1/4″-20 screw, phone clip, lamp holder, 1/4″-20 to 3/8″-16 adapter and 1/4″-20 to 5/8″-11 adapter make it highly compatible with various devices, such as SLR camera, ring light, flat panel light, focus light, microphone, mobile phone, etc
Compatibility:
1/4″-20
3/8″-16
5/8″-11
Mobilephones

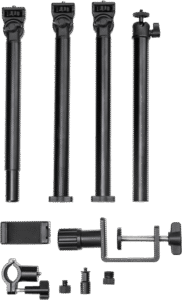

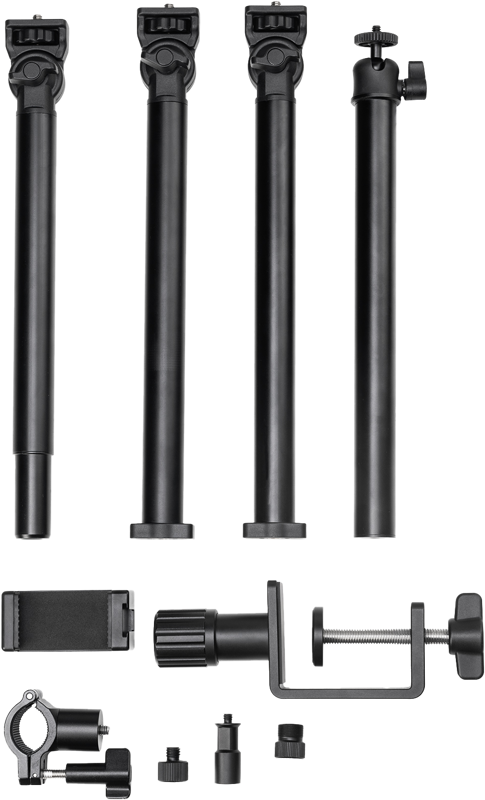

Package includes:
1x C-Clamp
3x Articuladed Arm
1x Crab-Shaped Clamp
1x Holding Arm
1x Phone Clip
1x Lamp Holder
1x 1/4″-20 to 3/8″-16 Adapter
1x 1/4″-20 to 5/8″-11 Adapter
1x User Manual
Specifications:
Product Dimensions: 1080 x 68 x 40mm
Product Weight: 930g ± 30g
Material(s): 75% Aluminum Alloy, 21% ABS, 3% Iron and 1% Copper
Maximum Height: 980mm
Articulated Arm Sections: 3
Articulated Arm Section Length: 32cm
Articulated Arm Section Diameter: 25mm
Articulated Arm Head Rotation: 180°
Articulated Arm Load Capacity: 2.7kg – 3.3kg
C-Clamp Gripping Distance: < 67mm
Crab-Shaped Clamp Gripping Distance: 22mm – 28mm
Holding Arm Length: 30cm
Ball Head Diameter: 15mm
Ball Head Load Capacity: < 1kg
Phone Clip Applicable Width: 58-85mm
