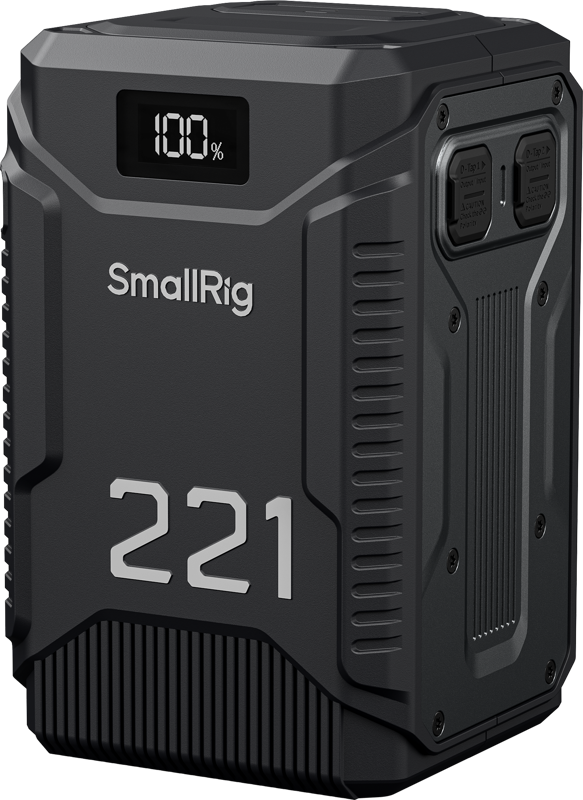

SmallRig 5865 T221 Triple-Proof (1.8m Drop-Resistant, IP54 Waterproof / Dustproof) V-Mount Battery
Its rugged body features a full-wrap design using TPU and metal, with internal brackets securing the battery cells and circuit boards, ensuring safety and durability in extreme environments from the inside out.
It achieves 1.8-meter drop resistance, confidently handling falls and impacts on set, and boasts an IP54 waterproof and dustproof rating, effectively resisting daily splashes, rain, and dust intrusion to ensure stable operation in harsh outdoor conditions.

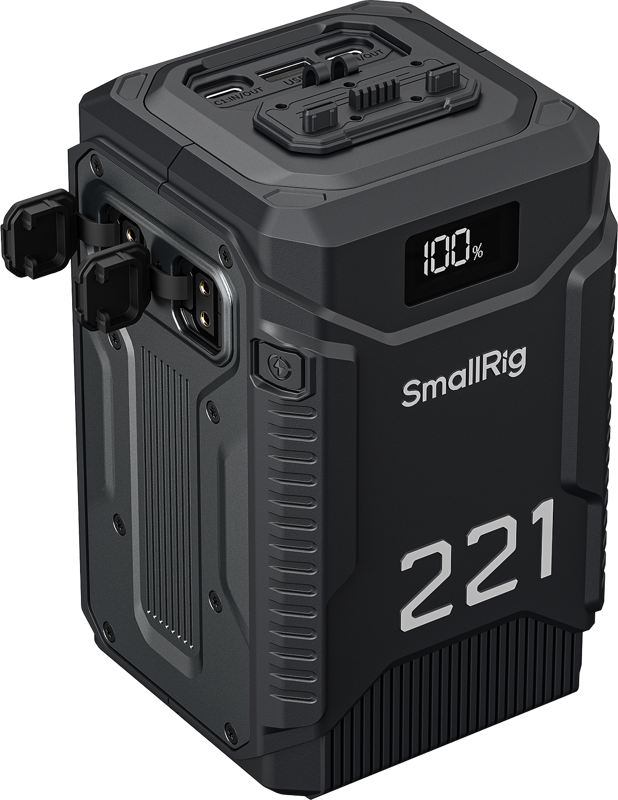

The power supply capability is comprehensive and efficient. Its multi-port design includes 1 BP port, 4 D-Tap ports, 2 USB-C ports, and 1 USB-A port, fully meeting the power needs of professional shooting teams. This significantly simplifies on-site cabling and enhances shooting efficiency.
Both USB-C ports support 140W PD bidirectional fast charging. Paired with a composite cooling system built with materials like graphene and thermal grease, the battery can be fully charged in just 2 hours and consistently delivers full power to devices throughout usage.
The core power supply system is safe and reliable. It utilizes LG high-quality battery cells, combined with a BMS intelligent control chip and precision circuit design, providing comprehensive protection against overheating, overcurrent, overvoltage, short circuits, overcharging, and over-discharging to ensure safe and stable power delivery.

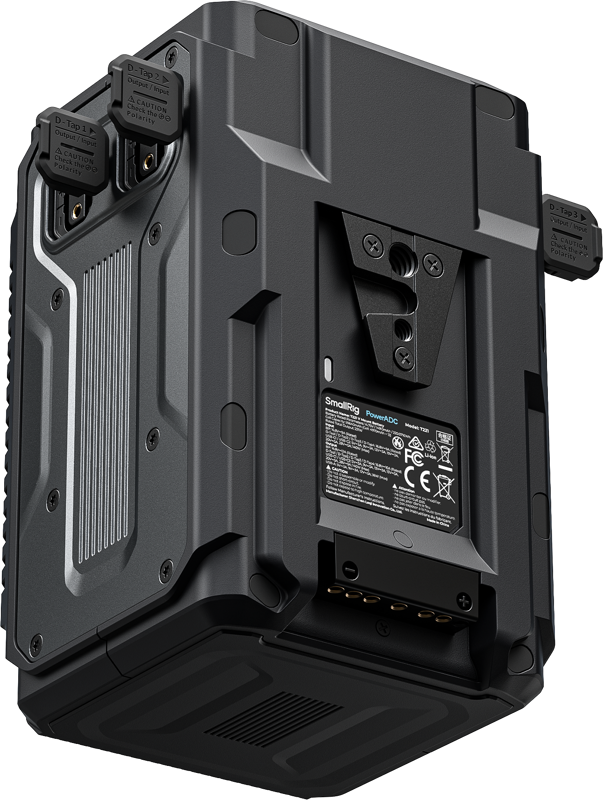

The thoughtful design details include backlit indicator lights for easy installation and operation in low-light environments, and dual-threaded holes (1/4″ and 3/8″) for flexible mounting options, making shooting preparations more efficient and seamless.
Certifications: FCC, CE, RoHS, ISED, PSE, RCM, KC
Technical Data:
- Product Weight: 1.66kg
- Material(s): Aluminum Alloy + TPU + Silicone + PC
- Battery Type: Lithium-ion Battery
- Cell Capacity: 59640mAh（Cell：4970mAh × 12）
- Rated Battery Parameters: 14.76V / 14910mAh / 220.0716Wh
- Rated Total Output: 221W
- Input:
- BP: 16.8V⎓9A (Rated)
- D-Tap1/ D-Tap2/D-Tap3/ D-Tap4: 16.8V⎓9A (Rated)
- USB-C1/USB-C2: 5V⎓3A、9V⎓3A、12V⎓3A、15V⎓3A、20V⎓5A、28V⎓5A;
- 140W (Max)
- Output:
- BP: 16.8V⎓15A (Rated)
- D-Tap1/ D-Tap2/D-Tap3/ D-Tap4: 16.8V⎓10A (Rated)
- USB-C1/USB-C2: 5V⎓3A、9V⎓3A、12V⎓3A、15V⎓3A、20V⎓5A、28V⎓5A;
- 140W (Max)
- USB-A: 5V⎓3A、9V⎓3A、12V⎓3A；36W (Max)
- Charging Protocols:
- USB-C1/USB-C2: PD3.1、PD3.0、QC2.0、QC3.0、UFCS、FCP、AFC、SCP、DCP-1.5A、APPLE-2.4A
- USB-A: QC3.0、QC2.0、UFCS、AFC、FCP、SCP、DCP-1.5A、APPLE-2.4A
- Cut-off Voltage: 11.2V
- Charging Ports: BP, D-Tap, USB-C
- Drop Resistance Rating: 1.8 meters
- Ingress Protection Rating: IP54
Compatibility:

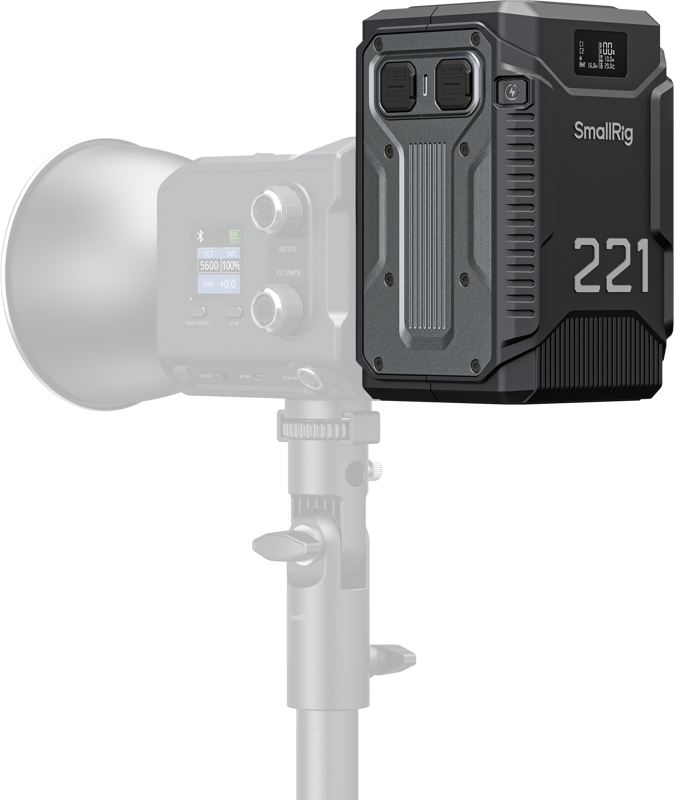

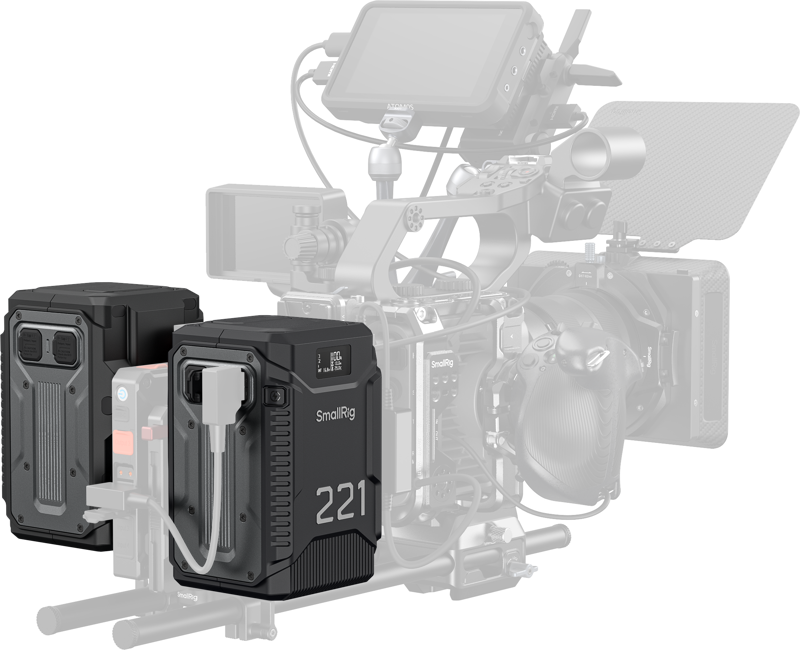

- Mirrorless cameras, camcorders, cameras, monitors, follow focuses, image transmitters, LED video lights, cell phones, tablets, laptops, etc.
Packaging includes:
- T221 V-Mount Battery
- 240W USB-C Charging Cable
- User Manual
