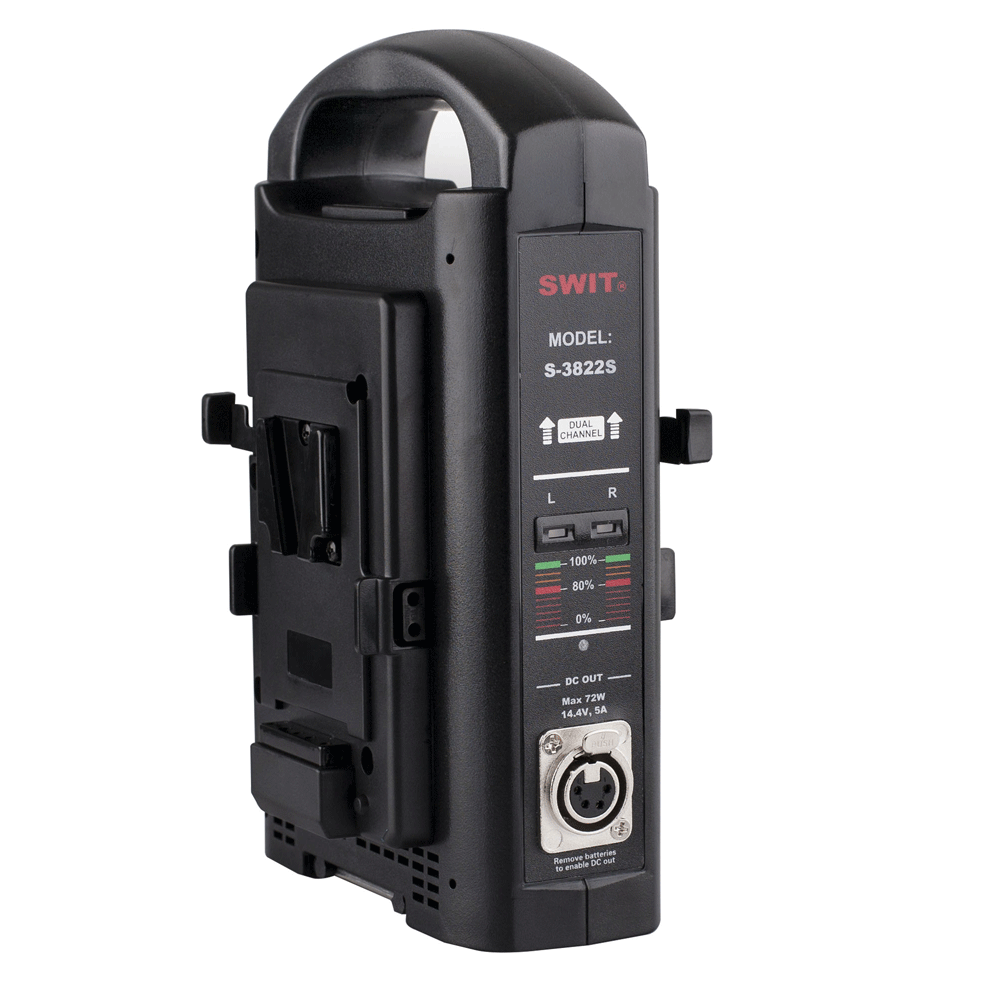

SWIT S-3822S is a 2-channel simultaneous charger, and powersuply for V-Mount batteries
S-3822S
2-ch V-mount Charger
Charging V-mount batteries
2-ch simultaneous charging
3A charging current per channel
LED charging indicators
Support AC to 4-pin XLR output
Light weight and portable
2-ch Simultaneous Charger
Charging current: 3A per channel

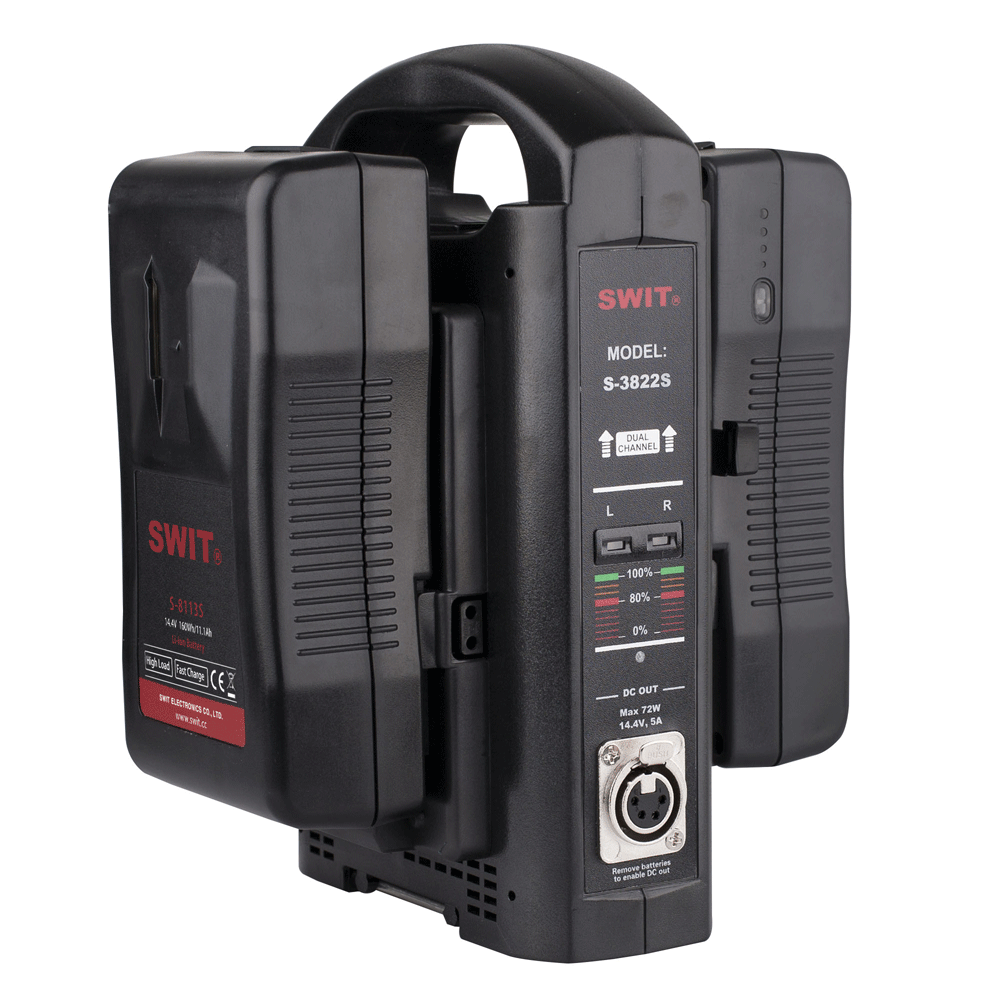

The portable charger S-3822S can charge 2 V-mount batteries simultaneously. The charging output is DC 16.8V, 3A×2

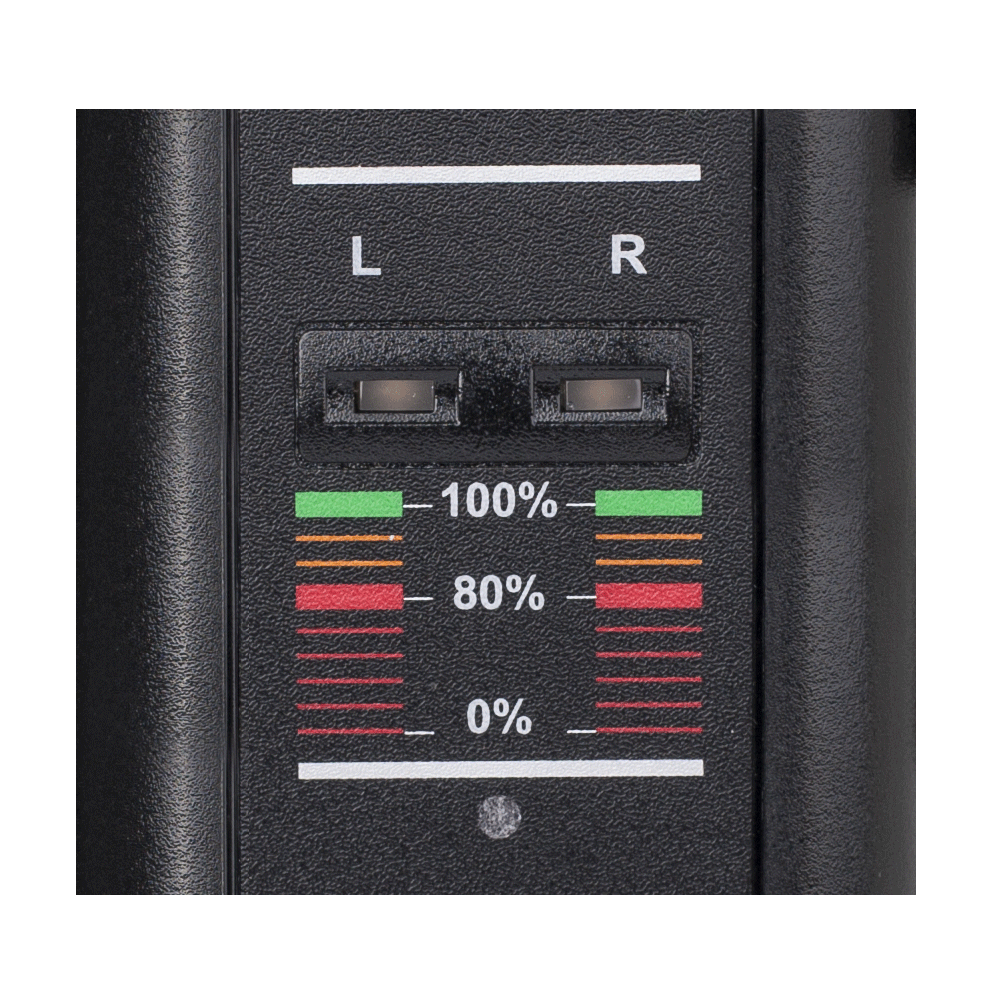

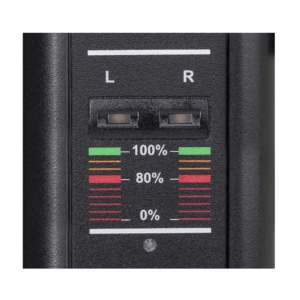

LED Charging Indicators
S-3822S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors
Display Red: Battery is charging, capacity below 80%
Display Yellow: Battery is charging, capacity above 80%
Display Green: Charging finished.
AC-DC Adapting Output
S-3822S has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822S can be used as AC-DC adaptor of DC 15V, 6A, 90W output
Please note the AC-DC adapting output will not work when battery is charging.
