The Tilta ES-T22-BP-AB battery plate adds Gold Mount battery power to the cage for the Canon EOS C400. It powers the camera through its own cable with a 4-pin XLR connector and offers two D-Tap 14.8 V outputs, a 2-pin 14.8 V output and two USB-C PD outputs (60 W and 20 W). A USB-C PD 45 W input runs it even when no battery is mounted. The mount swivels, so the batteries in the camera body stay within reach.

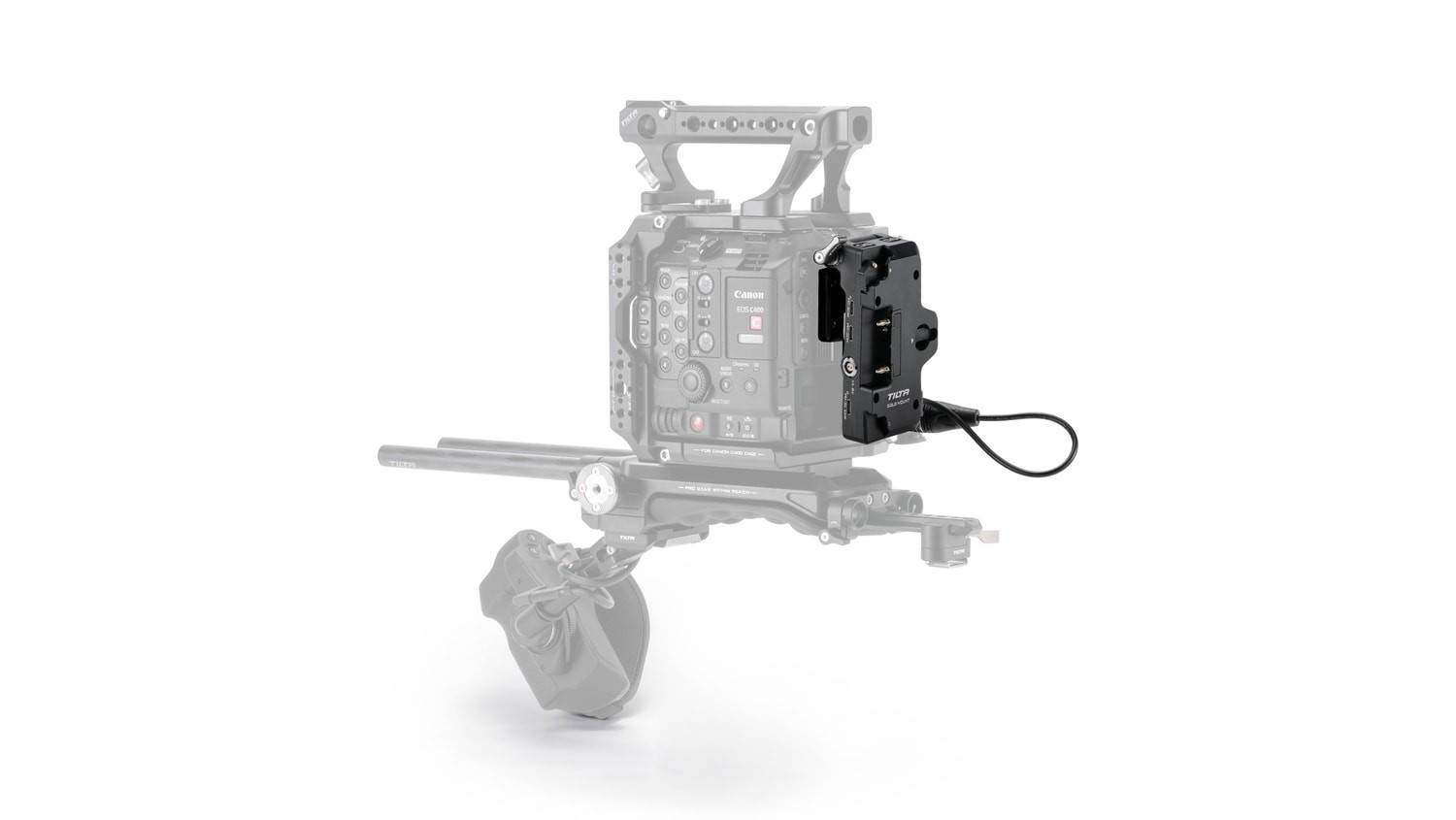

The battery plate brings the power of the whole rig together into one part: it carries a Gold Mount battery, powers the camera from it and feeds a monitor, a wireless transmitter or a recorder. It attaches to the Tilta cage for the Canon EOS C400 and its mount swivels aside, so the batteries in the camera body stay within reach.
Key features
A Gold Mount battery on the camera
The battery plate carries a Gold Mount battery and powers the camera from it through a short built-in cable with a 4-pin XLR connector. No loose wire runs between the camera and the plate to catch on a tripod or on your shoulder.
Every output within reach
The side of the battery plate carries two USB-C PD outputs — 60 W and 20 W — and a 2-pin 14.8 V output. Two D-Tap 14.8 V outputs sit on the top edge. A USB-C PD 45 W input runs the plate from a power bank even when no battery is mounted.
Swivel mount
The mount of the battery plate swivels aside, so you reach the batteries in the camera body without taking the plate off. The camera keeps running on its own batteries meanwhile, and the large battery is swapped while it rolls.
Part of the Pro Kit
The same battery plate comes in the Tilta ES-T22-C-AB Pro Kit for the Canon EOS C400. On its own it suits anyone who has a Tilta cage without power, or who wants a second plate as a spare. The version for V-Mount batteries is sold as ES-T22-BP-V.
- 1 × Tilta ES-T22-BP-AB battery plate for the Canon EOS C400 — Gold Mount
- Type: battery plate
- Compatibility: Canon EOS C400 — mounts to the Tilta cage for the C400
- Battery mount: Gold Mount
- Camera power: built-in cable with a 4-pin XLR connector
- Outputs: 2 × D-Tap (P-Tap) 14.8 V, 1 × 2-pin 14.8 V (LEMO type), 2 × USB-C PD (60 W and 20 W)
- Input: USB-C PD 45 W
- Mount: swivel, keeps access to the batteries in the camera body
- Materials: aluminium alloy, stainless steel, ABS plastic
- Colour: Tilta grey / black
