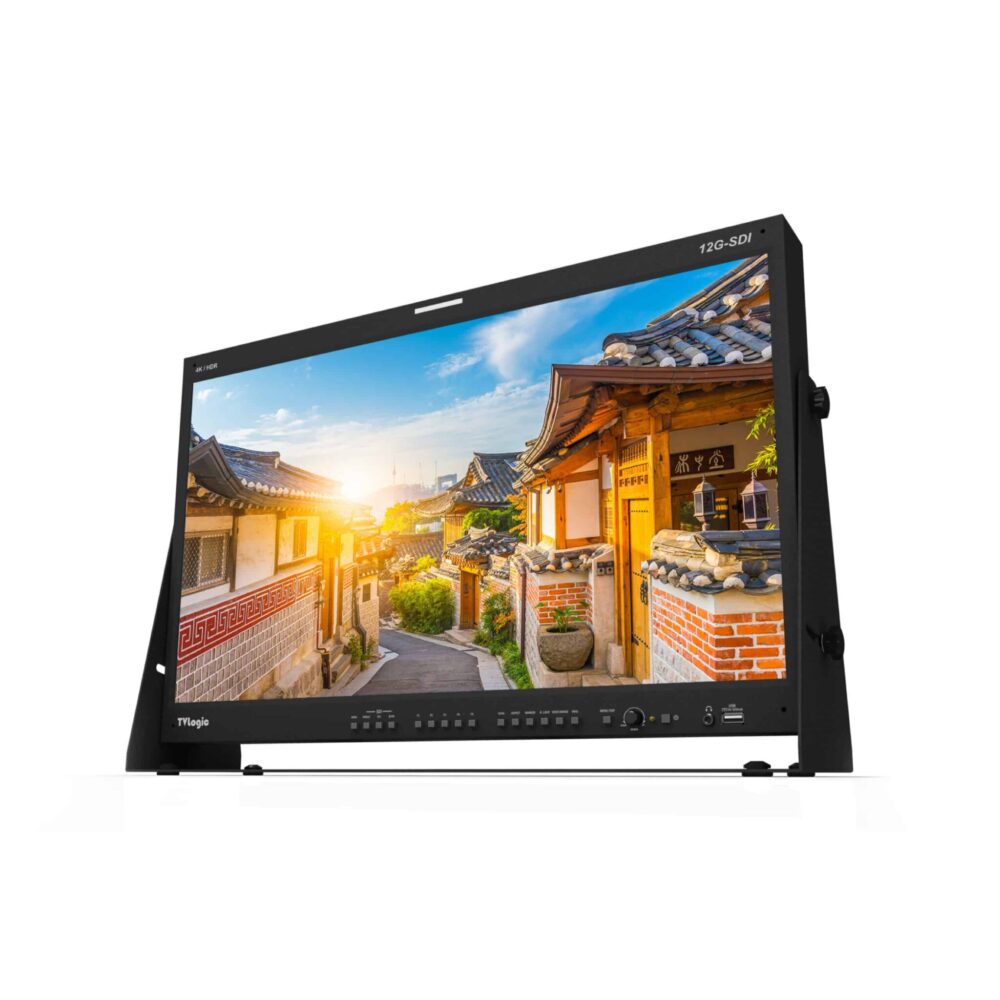

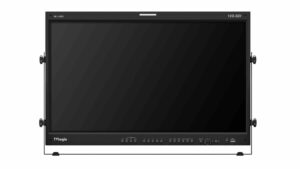

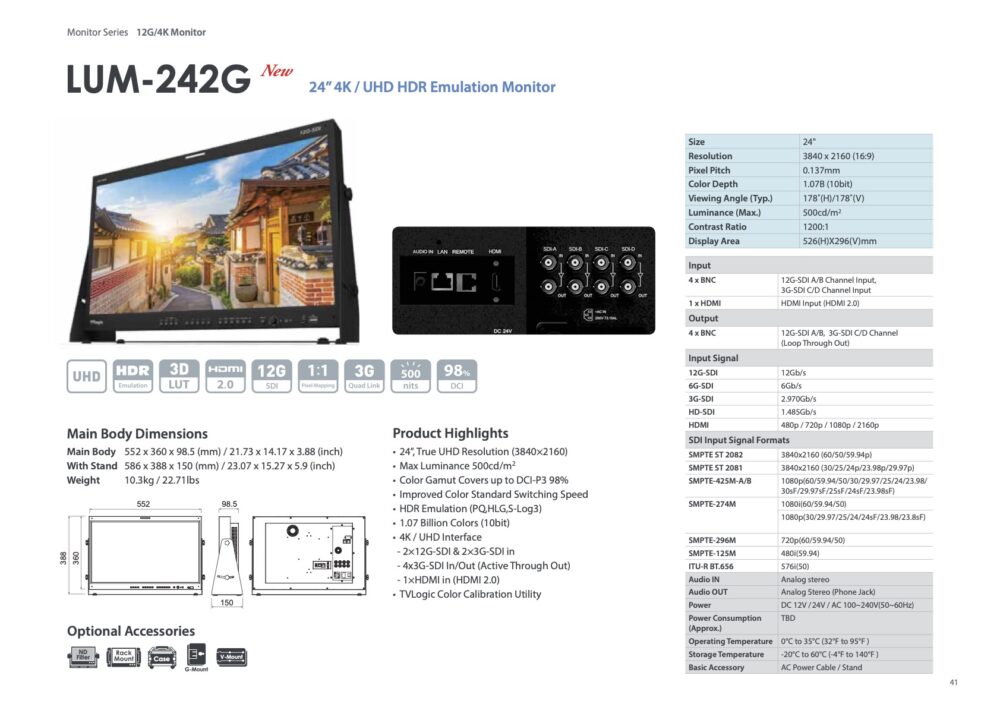

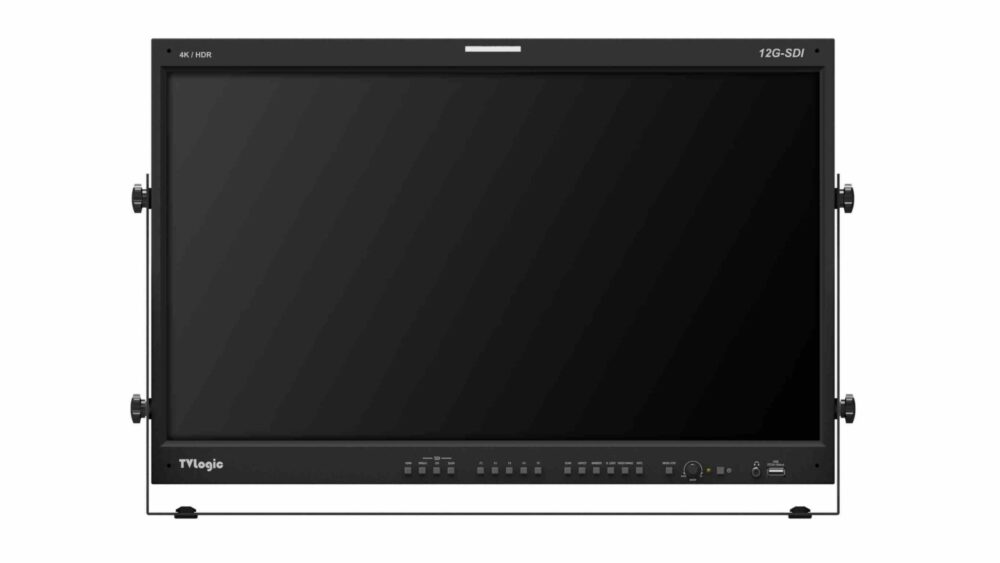

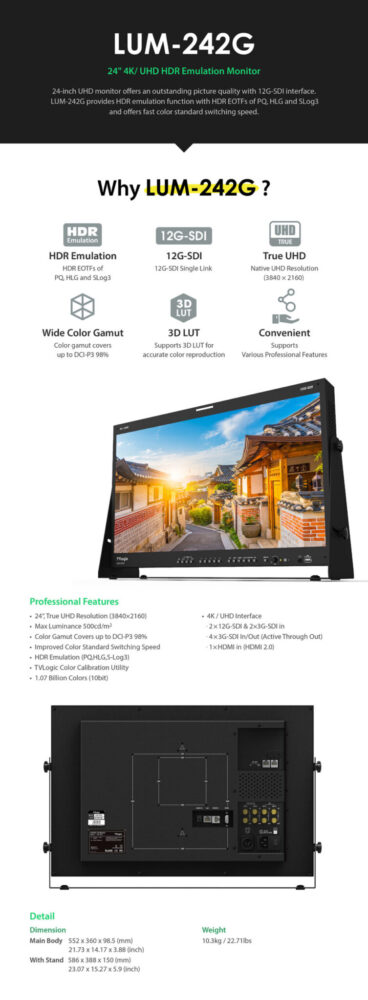

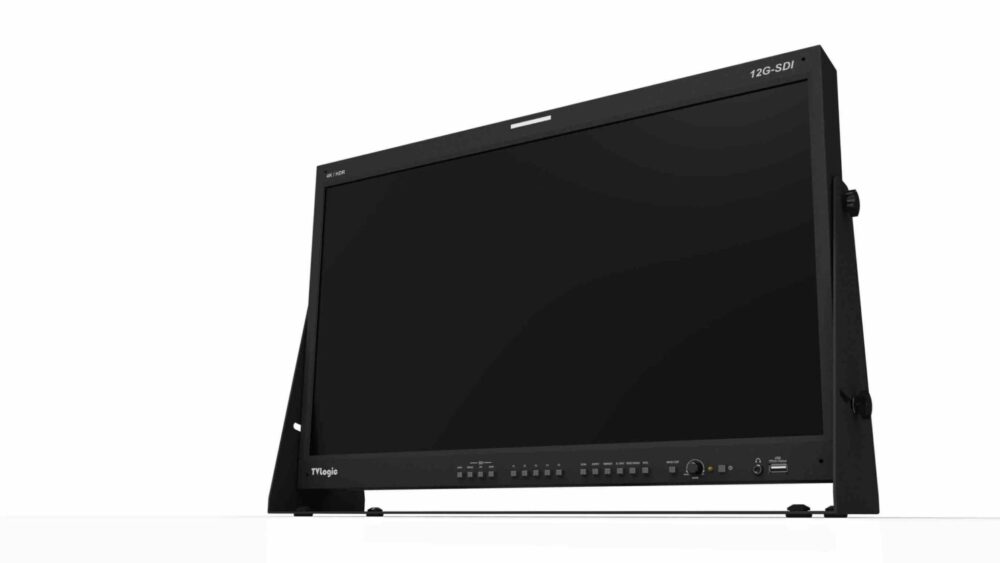

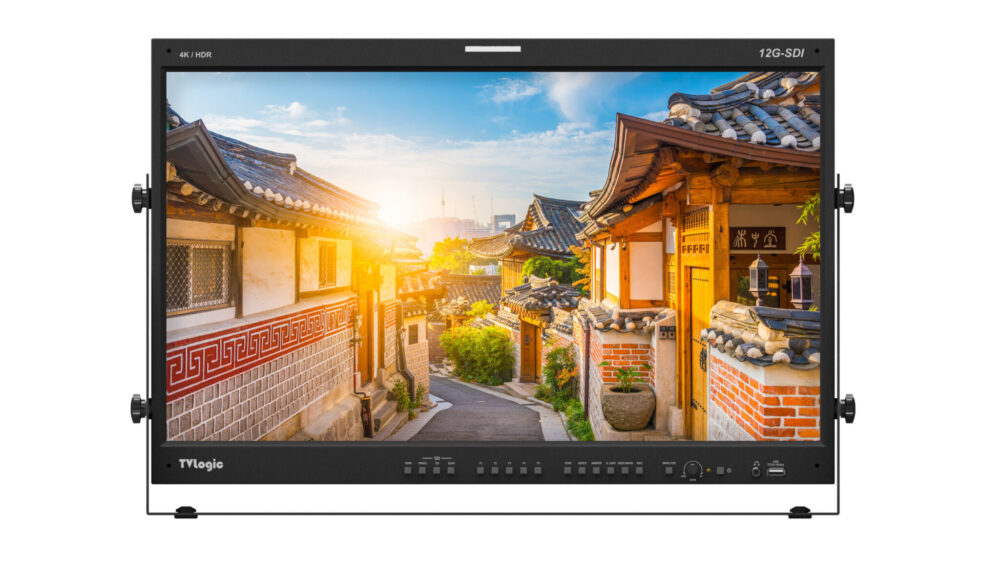

24″ TVLOGIC LUM-242G DCI-UHD monitor, 10 bit IPS LCD, 12-bit processing, 12G-SDI/HDMI

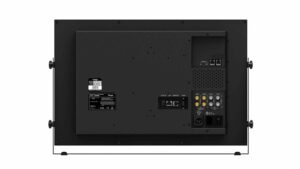

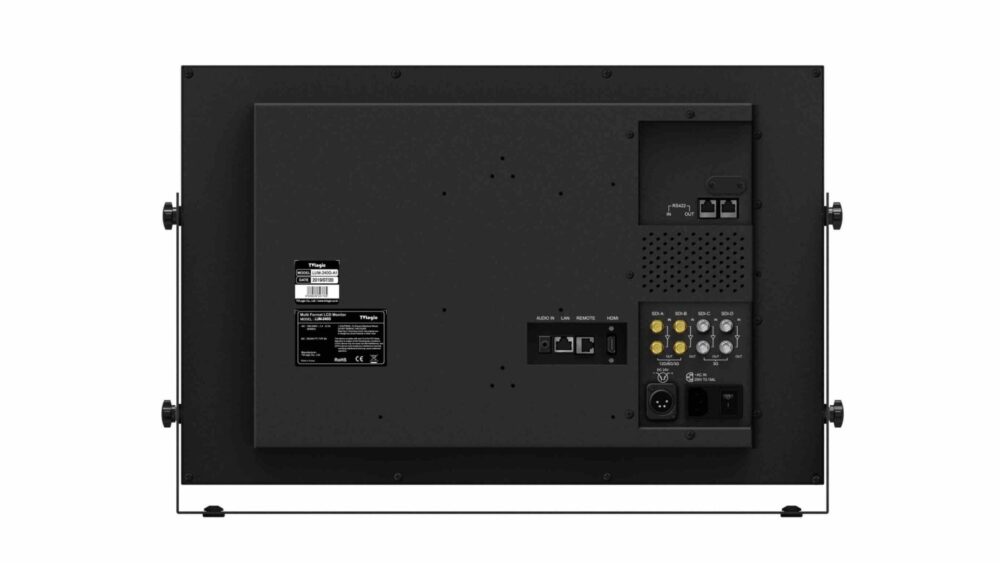

The LUM-242G is a 24 inch UHD resolution (3840 x 2160) monitor with a maximum luminance of 500nit, a contrast ratio of 1,200:1, wide color gamut and wide viewing angle. Equipped with 4 BNCs (2×12G-SDI + 2×3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-242G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

Features:

• HDR Emulation: A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual-layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000:1; in addition, they cover 99% of the DCI color gamut.
  HDR Emulation function includes the following control parameters: Standard Color Mode (HLG, PQ, PQ2), Video Range, Display Luminance, HDR EOTF (PQ, HLG) or Camera Logs** (coming soon), PQ EETF (On / Off), HLG System Gamma (Fixed 1.2 / Auto), Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode), White Point (D65, D93, DCI), Gamut Warning, Shadow Mode (LUM-318G only)
• 1:1 Pixel Mapping Modes for SD/HD
  Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
• Waveform/Vector Scope
  Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
  Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
