Accurate monitoring over HDMI and 12G-SDI
Mini Monitor 12G adds professional video output to an editing computer for a reference display, projector or broadcast chain. Its dual 12G-SDI outputs can operate as fill and key.

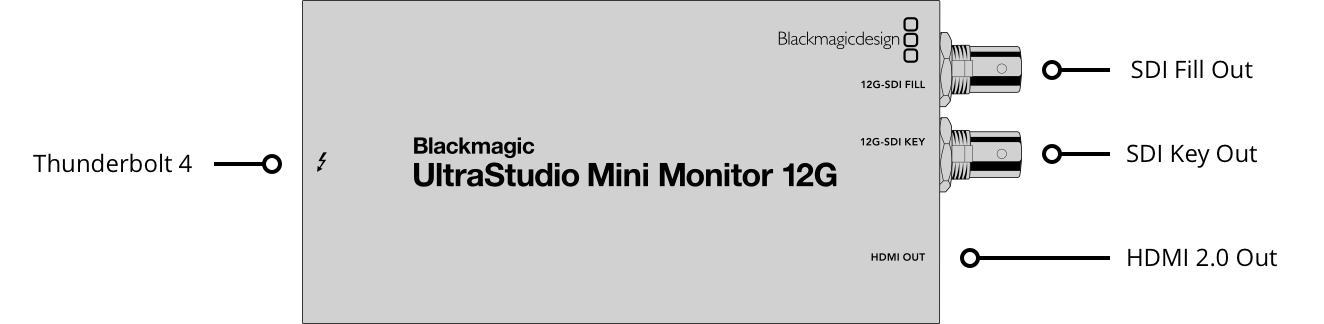

HDMI 2.0 outputDual 12G-SDIThunderbolt 4
Clean video beyond the desktop
A dedicated video output bypasses desktop graphics limitations and sends the preview from a supported editing or grading application directly to the display.
SDI and HDMI in one compact unit
HDMI 2.0 connects a television or projector, while 12G-SDI serves a professional monitor or broadcast graphics workflow with separate fill and key.
Ultra HD 2160p60Full SD, HD and Ultra HD support over a single cable.
Fill and keyDual SDI outputs for graphics with transparency.
Multichannel audio16 channels over SDI and 8 channels over HDMI.
Built for current computers
Connection requires a Thunderbolt 4 USB‑C port; the interface is powered directly by the computer.
- UltraStudio Mini Monitor 12G
- Welcome wallet with QR code for software download
- Computer interface: Thunderbolt 4 (USB‑C)
- SDI video: 2× 12G‑SDI outputs for fill/key
- HDMI video: 1× HDMI 2.0 output
- Supported SDI rates: 270 Mb/s, 1.5G, 3G, 6G and 12G
- Maximum format: Ultra HD 2160p60
- Audio: 16 channels embedded SDI; 8 channels embedded HDMI
- Power: Thunderbolt bus powered, 15 W
- Compatibility: Apple Silicon Mac; Windows 10/11 and Linux computers with Thunderbolt 4/5
- Weight: 0.28 kg
- Manufacturer warranty: 1 year
