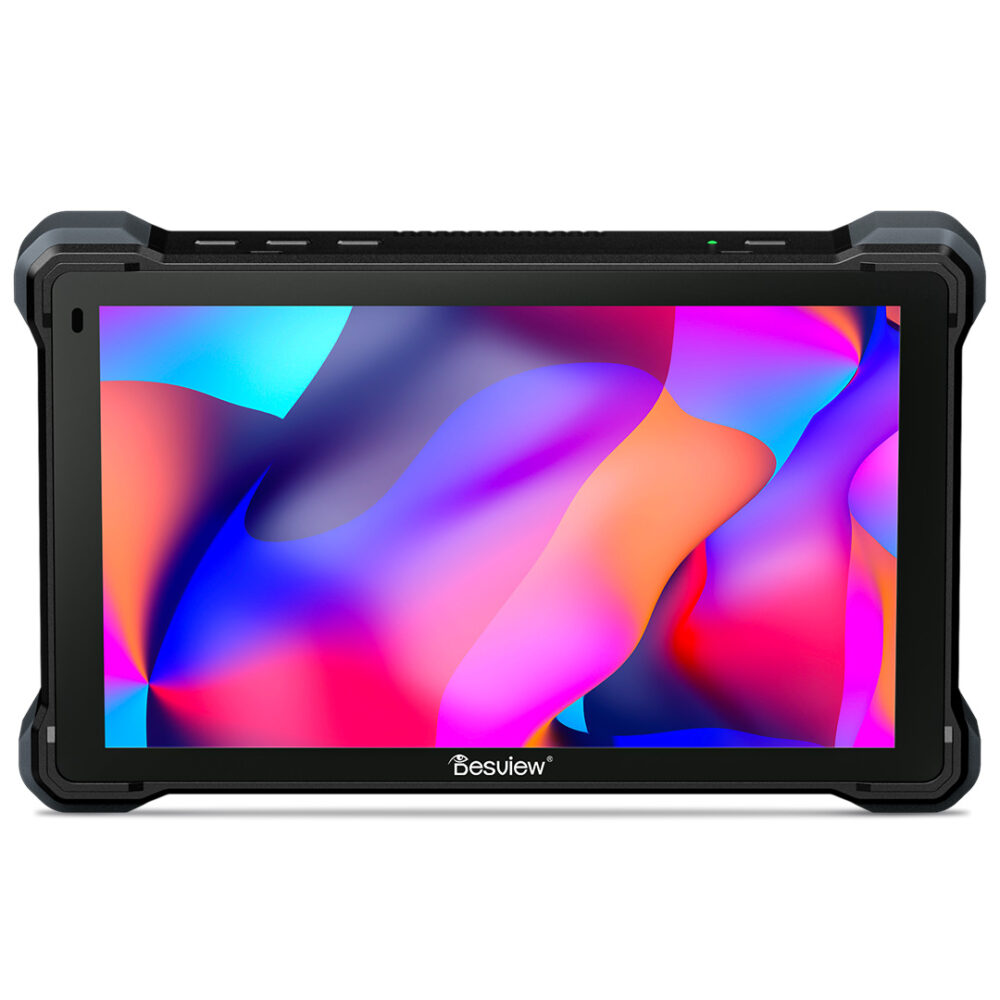

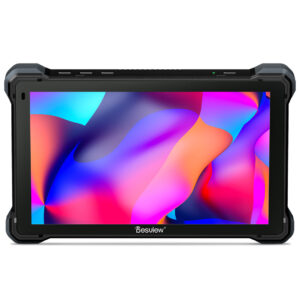

7″ High Brightness 4K 60 FPS Touchscreen Monitor. Each monitor undergoes color calibration to achieve a Delta <2 DCI-P3 film-grade gamut prior to leaving the factory
1.2800 Nits ultra-brightness
2.The screen displays sharper image
3.Full-touch screen
4.Enhanced contrast of light and shadow
5.Enhanced professional color display
6.Smoother color transitions
| Highlights List, Excellent Performance 1.2800 Nits ultra-brightness 2.The screen displays sharper image 3.Full-touch screen 4.Enhanced contrast of light and shadow 5.Enhanced professional color display 6.Smoother color transitions |
 |
 |
2800 Nits Ultra-Brightness Fearless In Sunlight With an ultra-bright 2800-Nits display, it delivers clear visuals even in outdoor environments with strong light
2800Nits
1000 : 1 High Contrast |
| Fully 4K 60fps Upgrade
Delivers Smoother Experience
60fps |
 |
 |
New Dual Battery Setup For Continuous Shooting Supports dual NP-F970 batteries, DC input, and Type-C power supply. With diverse power options, it adapts to various shooting scenarios and requirements |
| Film-Grade Professional
Color Accuracy
E Value ≤2
DCI-P3 Film-grade Color Gamut
*In sRGB mode, E value ≤2 |
 |
 |
High-Quality IPS Panel Featuring an IPS LCD panel for exceptional color performance and a 160° viewing angle, delivering a superior visual experience
7″
160° Viewing Angle |
| Dynamic HDR Monitoring Clearer Brightness Contrast HDR (High Dynamic Range) technology enhances details in both dark and bright parts of images, resulting in more realistic textures and more color layers
HDR Image Resolution Technology
10Bit (8Bit+2FRC) Smoother Color Transitions |
 |
 |
Eco-Friendly Adaptive Lighting System Built-in light sensor that adjusts brightness according to changes in the environment |
| Intelligent Quick And Smooth Operation Equipped with a premium chip, which allows for easy and convenient gesture interaction with just two fingers |
 |
 |
Customize 3D LUT To Define Creative Styles Allows custom import of multiple LUT sets, enabling you to easily change between creative styles
Import Via USB |
| Shock-Proof Rubber Corners Featuring new rubber corner design for improved shock absorption and collision prevention |
 |
 |
Full Range Of Auxiliary Functions Comes with a range of auxiliary shooting features, such as full waveform, color temperature, peak focusing, false color, deformation function, zebra lines, and still frame, etc. |
Product Specification
| Technical Parameter | Interface | Other | Packing List | |||
| Size | 7 inch display screen | Signal Input | HDMI2.0 | Touch Method | Capacitive Touch | Monitor x 1
A-AHDMI Cable x 1 Micro HDMI Cable x 1 D-Tap Cablex1 Monitor Mount x 1 U Disk x 1 Dust Cloth x 1 User Manual x 1 |
| Brightness | 2800Nits | Signal Output | HDMI2.0 | Net Weight | 490g | |
| Resolution | Full HD1920*1080 | Audio Output | 3.5mmStereo | Material of Case | ABS Plastic | |
| Color Gamut | 99.9%DCI-P3 | Data Interface | USB2.0 | Work Temperature | 0℃～50℃ | |
| Contrast | 1000:1 | Power Supply | DC IN 7~30V / DC OUT 8V
USB Type-C NP-F Series Battery Slot*2 |
Storage Temperature | -20℃～60℃ | |
| Display Color | 10Bit (8Bit+2FRC) | Monitor Size | 190.2*117.7*52.3mm | |||
| View Angle | 160°(H/V) | |||||
| Display Ratio | 16:9 | |||||
| Color calibration | Delta E<2 | |||||
| Backlight | LED | |||||
