Cable Drums for On-Location Video Production

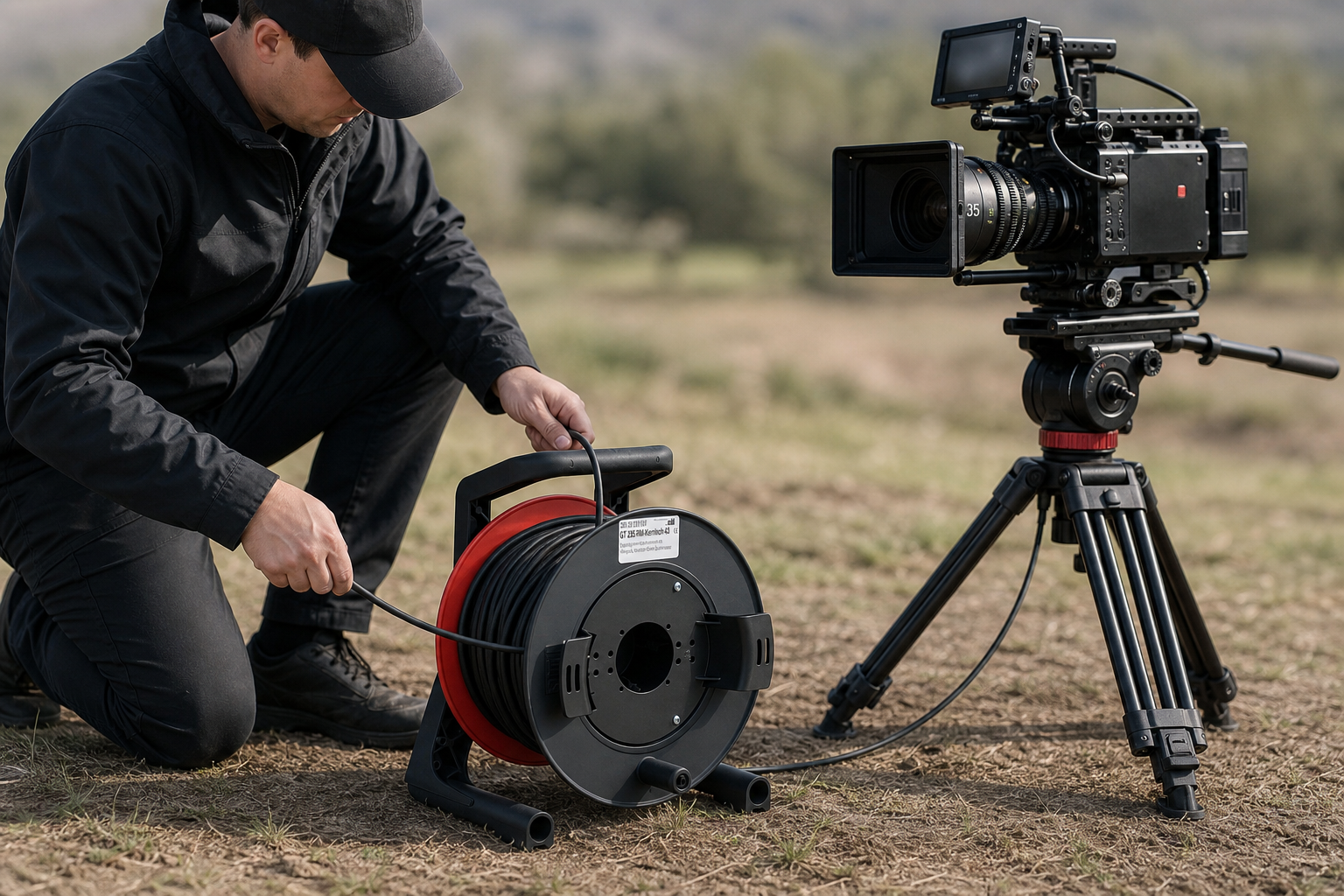

On-location video shoots put constant strain on cabling. Damaged SDI connectors, crushed tactical fiber lines, and tangled copper waste setup time and destroy signal integrity. In our experience on set, a single stepped-on BNC connector can halt a live broadcast.
Selecting purpose-built cable reels protects your investment and accelerates wrap times. Quality drums keep lines organized, maintain safe bend radii, and protect fragile connector ends during transit.
Rubber vs. Plastic vs. Steel Drum Construction
Cable drum materials determine how gear handles harsh transport, heavy impacts, and outdoor weather.
- Specialty Rubber (GT Series): Synthetic rubber frames absorb hard drops, resist chemical spills, and remain flexible in freezing weather. They serve as reliable standard equipment for live broadcast crews and outdoor sports coverage.
- Break-Resistant PVC (IT Series): Lightweight synthetic construction makes these drums ideal for fast hand carry. They offer reliable protection for shorter runs, control cables, and indoor corporate setups.
- Heavy-Duty Steel (HT Series): Designed for heavy power trunks and thick multi-core runs. High-grade steel reels offer maximum structural support on large stage builds.
| Drum Material | Key Advantage | Typical Cable Types | Recommended Environment |
|---|---|---|---|
| Specialty Rubber (GT) | High shock absorption, cold resistance | 12G-SDI coax, tactical fiber, power lines | Outdoor field shoots, OB trucks, sports |
| Break-Resistant PVC (IT) | Low overall weight, simple transport | Lightweight coax, DMX, 2-channel audio | Corporate AV, indoor events, quick setups |
| Heavy-Duty Steel (HT) | High load capacity, ultimate strength | Thick power trunks, heavy multi-core audio | Festival stages, permanent OB installations |
For compact runs and fast-moving field teams, lightweight rubber and synthetic drums provide the best balance of portability and toughness.
Reel Configurations: Auxiliary Spools, Latching Doors, and Custom Panels
Selecting the right drum face configuration prevents strain on connections and simplifies cable routing. According to Schill Audio/Video Solutions, matching drum cover designs to specific workflows extends cable service life.
- Auxiliary Spool (RM Series): Uses an outer reel section with a Velcro strap to secure cable tails or delicate fan-outs. This keeps connectors stress-free when unspooling long runs of coax cables or fiber.
- Locking Door (MFK Series): Features an integrated latching door over the front drum face. You can tuck delicate BNC, LC fiber, or XLR connectors safely inside the core cavity. The door shields terminations from crushing damage inside your video equipment bag.
- Open and Blank Cover (OFFEN & S0 Series): Built for self-tooling and custom configurations. Open designs give direct access to inner cable ends, while blank faceplates (S0) allow you to drill custom cutouts for BNC panel mounts, D-series sockets, or power outlets.
If you deploy expensive multi-channel lines, auxiliary spools and locking doors offer vital physical defense.
Matching Cable Diameter to Drum Capacity
Forcing thick multi-core cable onto a narrow drum core causes long-term structural fatigue. Tight winding damages copper shielding and snaps delicate optical fibers.
Always check the core diameter before winding your lines. A larger core radius reduces cable memory and keeps signal loss low. When comparing HDMI vs SDI for video, remember that long SDI and fiber lines require smooth winding to maintain full bandwidth.
If your setup requires custom chassis connectors mounted directly on the drum faceplate, select blank or open models engineered for custom drilling.
Field Transport and Setup Workflows

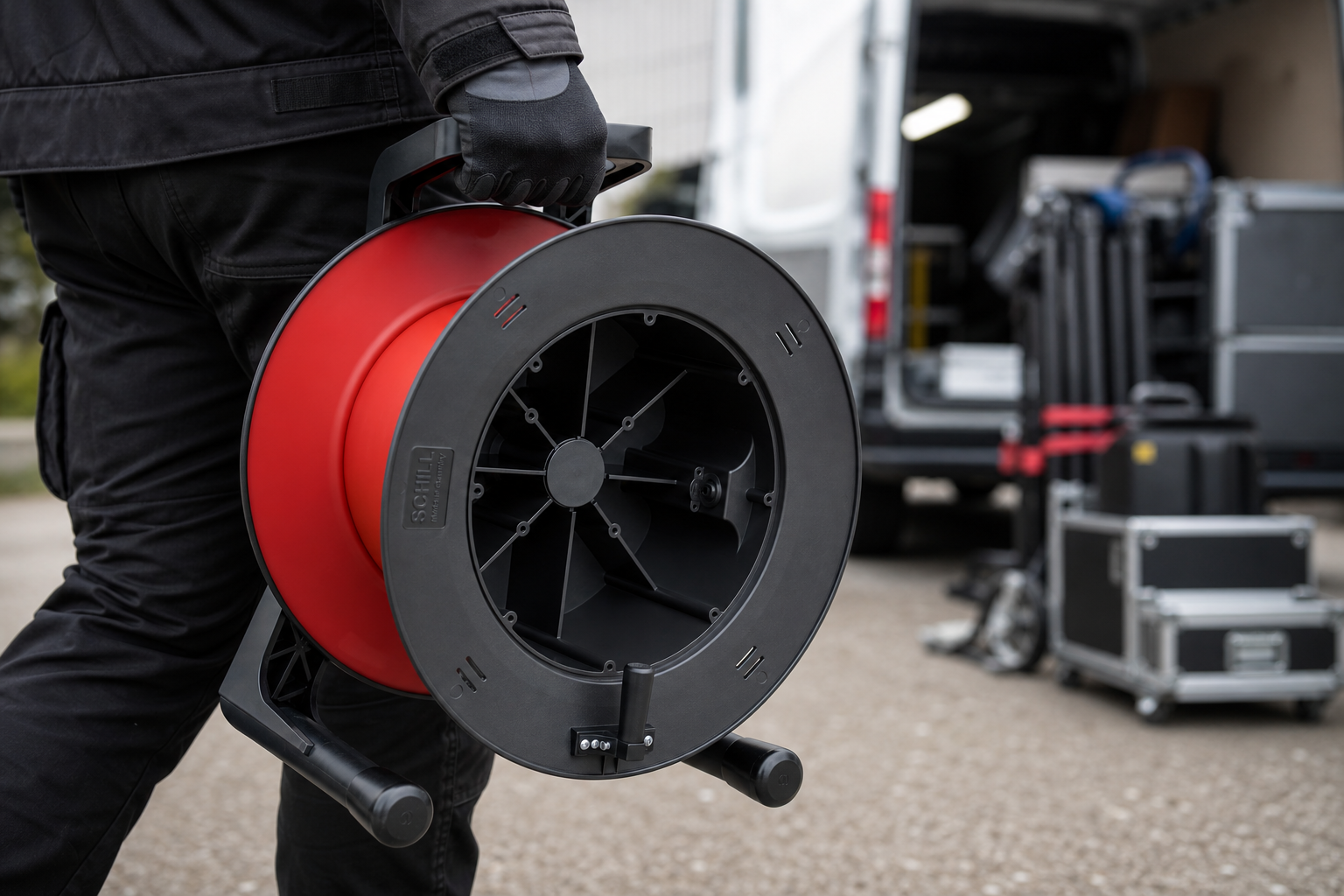

Fast teardowns and safe transport are essential for field crews. Look for drums equipped with an adjustable locking brake screw. Schill IP67 Cable Drum guidance notes that friction brakes prevent unwanted unspooling while carrying gear across set.
When traveling with video gear on a plane, synthetic rubber and lightweight PVC drums save critical weight without compromising strength. On location, combine your primary video reels with dedicated audio and DMX cables and proper power cables to keep your video village safe and clear of trip hazards.
For long-distance multi-core cables and high-capacity fiber reels, high-volume drums provide the required storage space.
Key Takeaways
- Choose specialty rubber (GT series) for rugged outdoor field shoots and break-resistant PVC (IT series) for lightweight indoor setups.
- Use RM auxiliary spools or MFK latching doors to keep fragile BNC and fiber connectors safe during transit.
- Match cable thickness to drum core diameter to protect signal integrity and prevent cable memory.
- Select S0 blank cover or OFFEN models when mounting custom chassis connectors directly onto the drum face.
