BLACKMAGIC DESIGN ATEM Monitoring Rack Panel 40

The ATEM Monitoring Rack Panel is a new combined monitoring converter and control panel designed for use with ATEM Constellation IP live production switchers. The ATEM Monitoring Rack Panel converts SMPTE-2110 IP to HDMI and 12G-SDI for connecting monitors, while also featuring front-panel buttons for controlling the switcher, an LCD display, and a talkback connection.

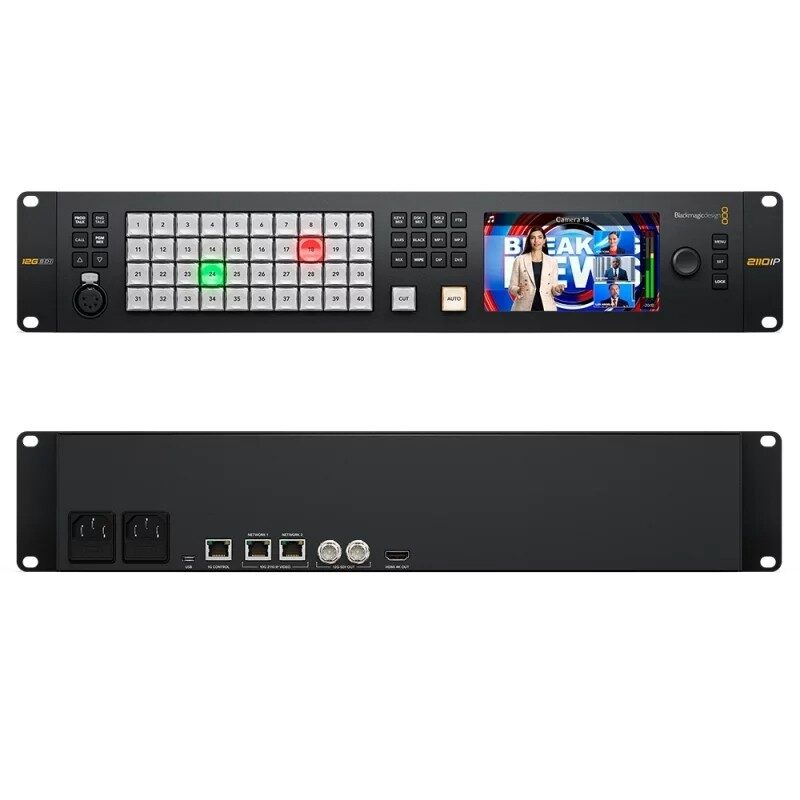

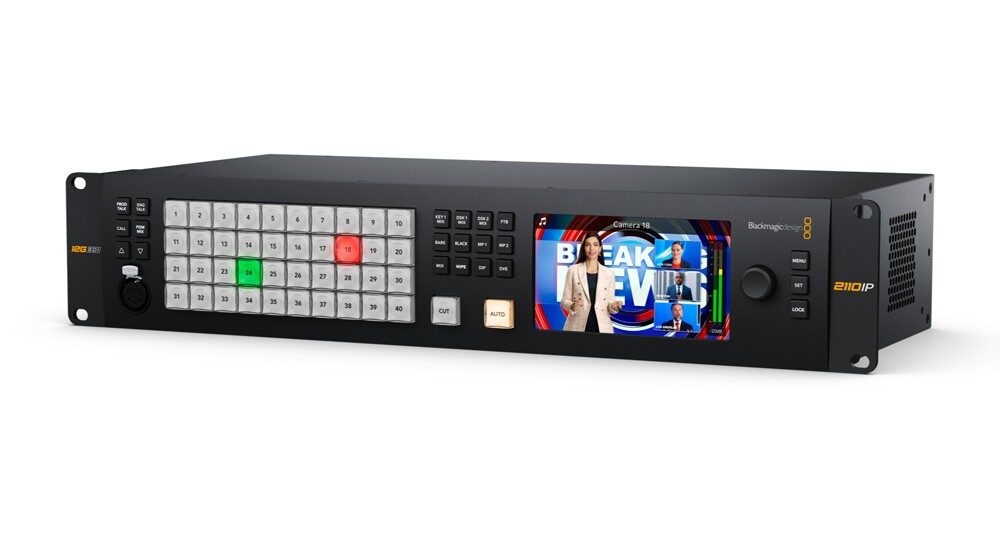

The broadcast-style design of the ATEM 4 M/E Constellation IP uses front-to-back cooling, which limits the space available for controls on the front panel. This issue is solved by the option to add an ATEM Monitoring Panel to the rack. It offers the same controls as standard ATEM Constellation SDI models, but also functions as a standalone monitoring converter and control panel. It features a rack-mount design with professional buttons for controlling the ATEM 4 M/E Constellation IP. It also includes a dedicated Ethernet port for control. The device also functions as a redundant 10G Ethernet SMPTE-2022-7 to 12G-SDI and HDMI converter, allowing for the connection of local video monitors. The front panel also features a 5-pin talkback interface.

Key features:

• Monitoring converter integrated into a rack-mount ATEM control panel
• Conversion of 10G Ethernet SMPTE-2110 to 12G-SDI and HDMI outputs

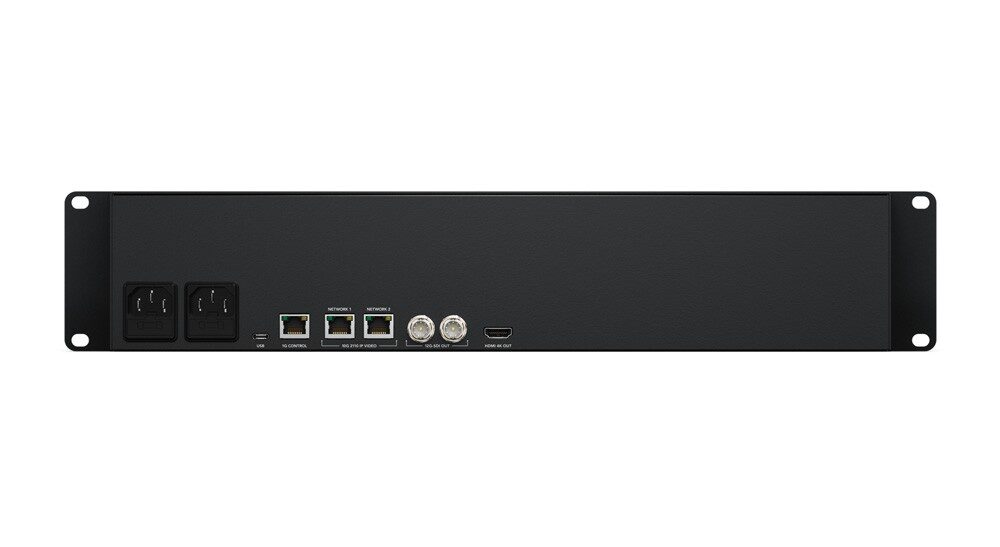

• 2 redundant 10G Ethernet ports for SMPTE-2022-7 compatibility
• Dedicated NMOS connection for routing IP sources
• Front-panel LCD for monitoring video and audio levels
• 5-pin broadcast talkback headset connector on the front panel
• Two redundant AC power supplies for broadcast reliability
