DECIMATOR

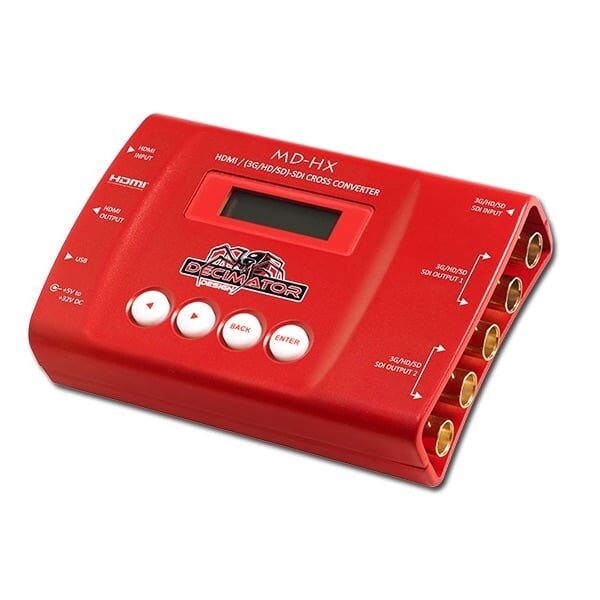

DECIMATOR MD-HX HDMI / SDI cross converter

Name: DECIMATOR MD-HX HDMI / SDI cross converter
SKU: MD-HX
Availability: InStock

MD-HX

€ 355.00

€ 440.20 (incl. VAT)

HDMI / SDI CROSS CONVERTER with Scaling and Frame Rate Conversion

Features:

Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
Horizontal and/or Vertical image flipping via the built in scaler.
Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
Robust Aluminium Case with easy to use LCD and button control system.
Features the following 14 modes:
SDI IN to HDMI and SDI OUT
SDI IN to SDI OUT and HDMI IN to HDMI OUT
SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
HDMI IN to SDI OUT and SDI IN to HDMI OUT
HDMI IN to HDMI and SDI OUT
HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
Scaled SDI IN to HDMI and SDI OUT
Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
Scaled HDMI IN to HDMI and SDI OUT
4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI
input (default) or the same as pair 2.
The audio pairs in the SDI and HDMI outputs can be rearranged as required.
Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

Full specification sheet

Availability: Availability: IN STOCK This product is on our local stock and available immediately

Approved by our experts

Top quality product

Delivery or pickup

Description
Found a better price?

Major Free UCP software update for the Decimator MD-HX

Significantly improve real-time monitoring with this new update for the MD-HX, available via the UCP V3.0.4 software in the Downloads page of the Decimator Design website. (Units serials starting with CLD, CLE and CLF).

This update turns the MD-HX into a complete signal utility platform – capable of converting, generating, monitoring, and diagnosing, all within a single unit.

Key New Features & Enhancements:

• More Formats – Expanded Compatibility
– Added VESA input support on HDMI (204 total)
– 2K video format support
– Greater flexibility when interfacing with computers, cameras, and non-broadcast sources

• Integrated Test & Diagnostic Tools
– Built-in Video Test Pattern Generator
– Audio Test Tone Generator
– Ideal for system setup, troubleshooting, and verification without external equipment

• Advanced On-Screen Overlays
– up to 16 Audio Meter Overlays
– Graticule Overlays
– UMD / Custom Text Overlays
– In/out Format Status Display
