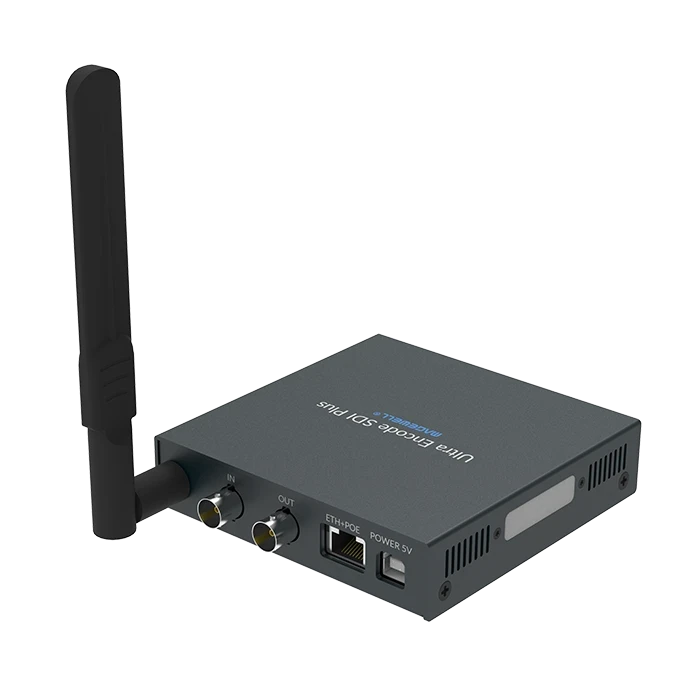

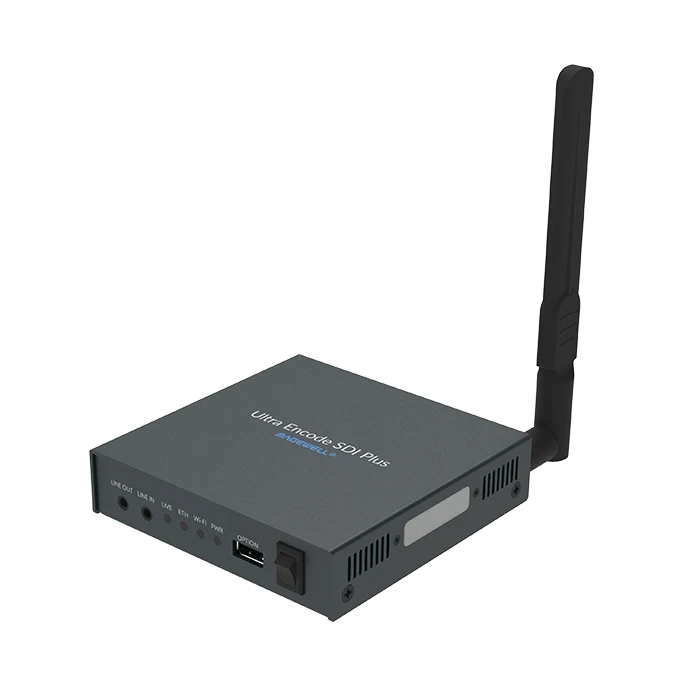

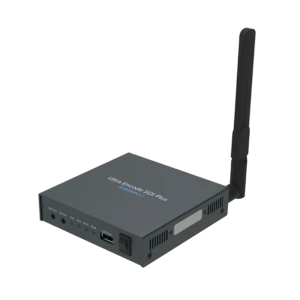

MAGEWELL Ultra Encode SDI Plus – 53160

 549.00  669.78 (koos km)

MW-53160

The Ultra Encode SDI Plus encodes up to 4K at 30fps from the device’s 6G-SDI input. This model support multiple video encoding formats and technologies – including H.264, H.265 (HEVC), NDI HX2 and NDI HX3 – and a wide array of streaming protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology.

  • Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
  • Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
  • Control via web interface or optional Control Hub centralized management software
Loe edasi
Meie poolt heaks kiidetud
Tasemel kvaliteet
Telli koju või astu läbi
Kuumakse al.  19.44 / 48 kuud

Input Features:

  • Support for up to 4096×2160 30fps input and loopthrough signals
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input audio from 3.5 mm LINE IN

Encoding Features:

  • Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
  • Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
  • Support for H.264/HEVC video encoding
  • Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
  • Encoding 8-channel AAC and audio channels mapping
  • Side-by-Side 3D video encoding

Streaming Features:

  • Natively support Facebook, Twitch, YouTube and WOWZA
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
  • Allow simultaneous 6 sessions over multiple streaming protocols
  • Support for streaming schedule

Recording Features:

  •  Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
  • Automatically upload recorded files to remote file storage platform
  • Video recordings in MP4, MOV or TS format
  • Normal recording and loop recording supported
  • Support for recording schedule


Input Features:

  • Support for up to 4096×2160 30fps input and loopthrough signals
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input audio from 3.5 mm LINE IN

Encoding Features:

  • Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
  • Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
  • Support for H.264/HEVC video encoding
  • Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
  • Encoding 8-channel AAC and audio channels mapping
  • Side-by-Side 3D video encoding

Streaming Features:

  • Natively support Facebook, Twitch, YouTube and WOWZA
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
  • Allow simultaneous 6 sessions over multiple streaming protocols
  • Support for streaming schedule

Recording Features:

  •  Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
  • Automatically upload recorded files to remote file storage platform
  • Video recordings in MP4, MOV or TS format
  • Normal recording and loop recording supported
  • Support for recording schedule
